Maintain Long-Term Vessel Patency - Merit WRAPSODY

EXTENDING LONG-TERM VESSEL PATENCY IN PATIENTS WITH OBSTRUCTIONS IN THE DIALYSIS OUTFLOW CIRCUIT

Dialysis patients can often experience complications due to stenosis and occlusions in the dialysis outflow circuit. This can lead to repeated interventions, frequent trips to the hospital, and inadequate dialysis treatments. The Merit WRAPSODY Endoprosthesis is built to combat these challenges and extend long-term vessel patency rates.

Video Gallery

INTRODUCING THE MERIT WRAPSODY ENDOPROSTHESIS

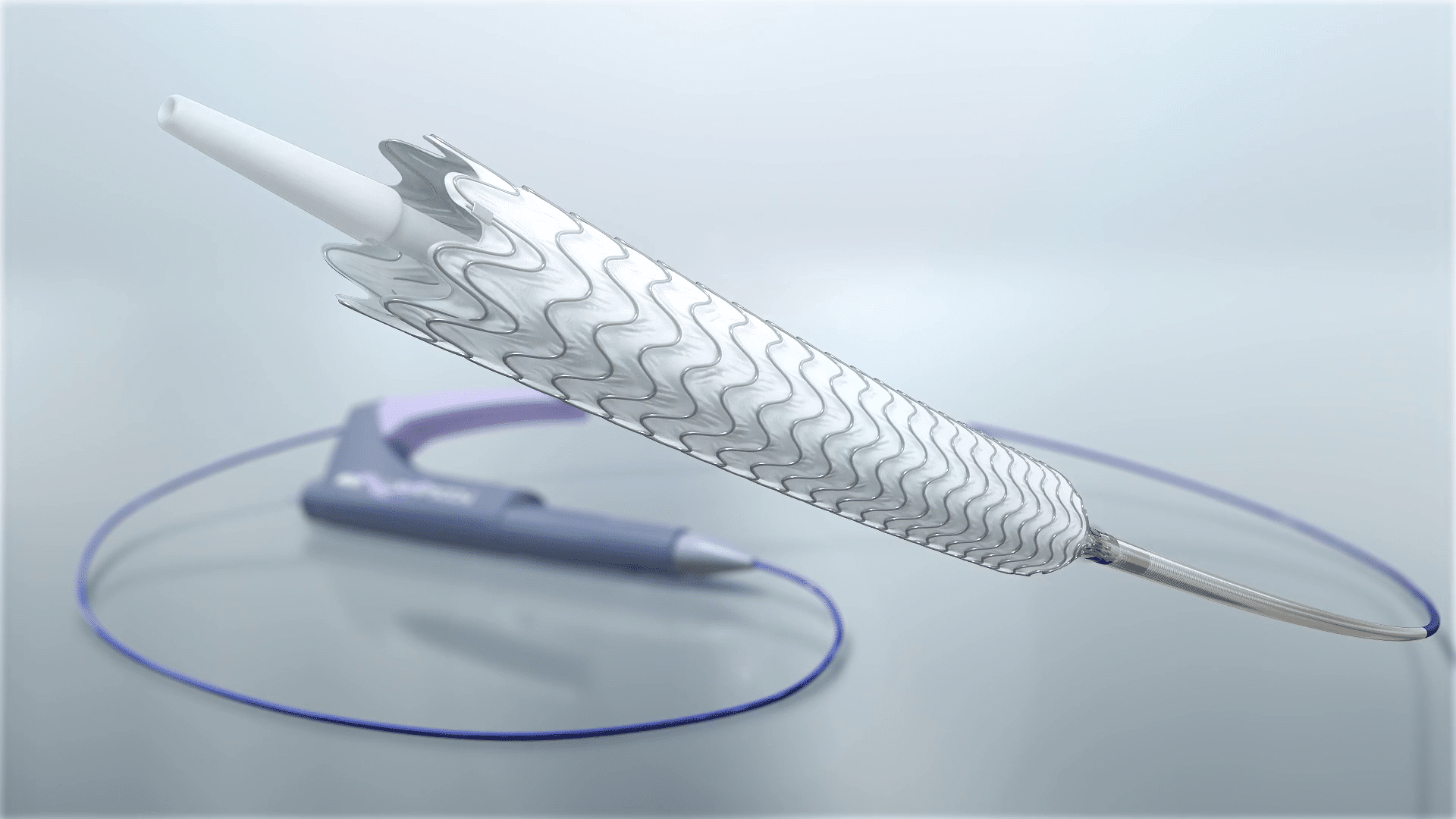

Merit WRAPSODY Endoprosthesis Stent Graft System

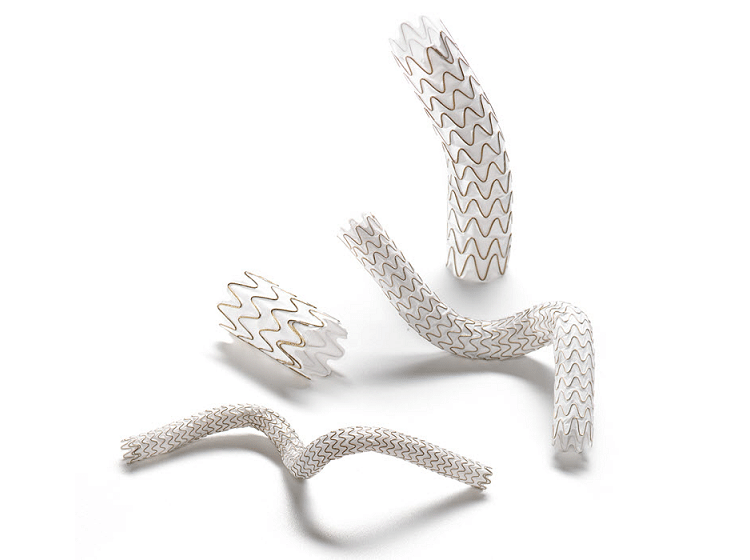

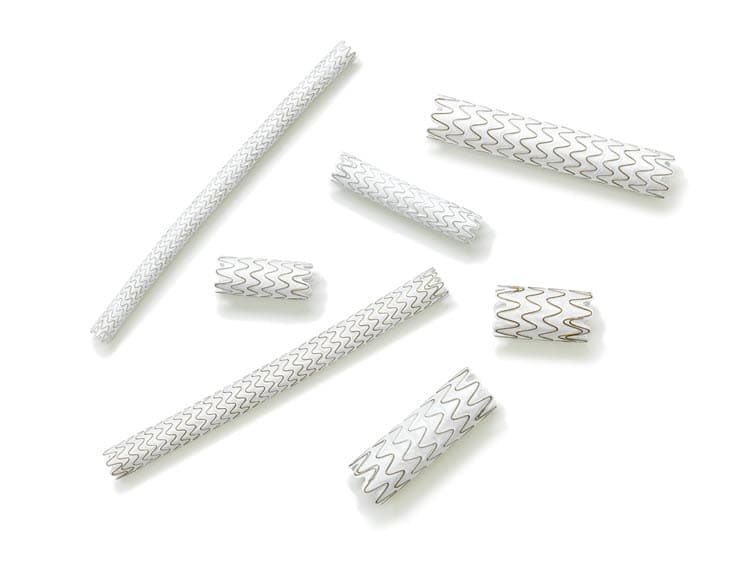

Image Gallery

Features & Benefits

UNIQUE TRI-LAYERED ENDOPROSTHESIS MICROSTRUCTURE



3 key elements of the Merit WRAPSODY Endoprosthesis

INSIDE NOVEL SPUN GRAFT LAYER

The innermost layer of the WRAPSODY is made of a biocompatible, novel spun PTFE layer designed to limit inflammation and thrombus formation without coatings, chemicals, or drugs.

MIDDLE CELL-IMPERMEABLE GRAFT LAYER

The WRAPSODY is engineered with an impermeable middle graft layer built to prevent transmural cellular migration without the use of drug bonding.



CASE STUDY

Dolmatch, et al. JVIR. 2020; 31: 494–502.1 Evaluation of a Novel Spun Polytetrafluoroethylene Stent Graft in an Ovine External Iliac Artery Model Purpose: To compare the patency, tissue response, and thrombogenicity of the WRAPSODY and a leading ePTFE covered stent.

CONCLUSION

The WRAPSODY’s cell-impermeable middle graft layer prevents cellular migration and tissue accumulation (as shown in pink) across device layers and around nitinol stent struts better than the leading ePTFE covered stent.

Dolmatch Findings - Merit WRAPSODY

Cross-Sectional Histology Images: Left External Iliac, Animal, 180 days1



OUTER ePTFE STANDARD LAYER

The outer layer of the WRAPSODY is engineered with a standard, biocompatible ePTFE material that allows for necessary tissue ingrowth to prevent stent migration.

Close up of the outer ePTFE on the left, and tissue ingrowth on the right


SOFTENED END ROWS REDUCE EDGE STENOSIS

WRAPSODY’S end rows are designed with less radial force (1) to better conform to healthy tissue, reduce vessel trauma, and improve long-term patency. Additionally, nitinol struts (2) allow for upsizing of up to 25% for superior vessel conformance



RADIAL STRENGTH AND COMPRESSION RESISTANCE

Allows the endoprosthesis to withstand intraluminal forces AND extrinsic pressure placed on the device – and is consistent across all diameter sizes




PINPOINT ACCURACY

1 – Racheted Deployment Handle
for one-handed accurate and controlled stent graft placement

2 – Single Port
for flushing guide wire lumen and stent graft pod

3 – Safety Clip
to prevent inadvertent deployment

4 – Radiopaque Marker Bands
for enhanced visualisation

5 – Soft Atraumatic Tip
for a seamless transition over a 0.035″ guide wire


HYDROPHILIC COATING

Allows smooth insertion & withdrawal, along with exceptional trackability

Order Information

View All Details
Catalog NumberExpanded Family NameExpanded Family Name2Stent Graft Diameter (mm)Stent Graft Length (mm)Catheter Working Length (cm)Delivery Profile (French)Vessel Diameter Range (mm)Guide Wire CompatibilitySterilizationLatex FreeShipping Box Qty
WRAP-L06050Merit WRAPSODY™Endovascular Stent Graft System6 mm50 mm120 cm8F4.6 mm - 5.3 mm0.035" (0.89 mm)ETOYes1
WRAP-L06075Merit WRAPSODY™Endovascular Stent Graft System6 mm75 mm120 cm8F4.6 mm - 5.3 mm0.035" (0.89 mm)ETOYes1
WRAP-L06100Merit WRAPSODY™Endovascular Stent Graft System6 mm100 mm120 cm8F4.6 mm - 5.3 mm0.035" (0.89 mm)ETOYes1
WRAP-L06125Merit WRAPSODY™Endovascular Stent Graft System6 mm125 mm120 cm8F4.6 mm - 5.3 mm0.035" (0.89 mm)ETOYes1
WRAP-L07050Merit WRAPSODY™Endovascular Stent Graft System7 mm50 mm120 cm9F5.4 mm - 6.1 mm0.035" (0.89 mm)ETOYes1
WRAP-L07075Merit WRAPSODY™Endovascular Stent Graft System7 mm75 mm120 cm9F5.4 mm - 6.1 mm0.035" (0.89 mm)ETOYes1
WRAP-L07100Merit WRAPSODY™Endovascular Stent Graft System7 mm100 mm120 cm9F5.4 mm - 6.1 mm0.035" (0.89 mm)ETOYes1
WRAP-L07125Merit WRAPSODY™Endovascular Stent Graft System7 mm125 mm120 cm9F5.4 mm - 6.1 mm0.035" (0.89 mm)ETOYes1
WRAP-L08050Merit WRAPSODY™Endovascular Stent Graft System8 mm50 mm120 cm9F6.2 mm - 7.2 mm0.035" (0.89 mm)ETOYes1
WRAP-L08075Merit WRAPSODY™Endovascular Stent Graft System8 mm75 mm120 cm9F6.2 mm - 7.2 mm0.035" (0.89 mm)ETOYes1
WRAP-L08100Merit WRAPSODY™Endoprosthesis8 mm100 mm120 cm10F6.2 mm - 7.2 mm0.035" (0.89 mm)ETOYes1
WRAP-L08125Merit WRAPSODY™Endovascular Stent Graft System8 mm125 mm120 cm10F6.2 mm - 7.2 mm0.035" (0.89 mm)ETOYes1
WRAP-L09050Merit WRAPSODY™Endovascular Stent Graft System9 mm50 mm120 cm10F7.3 mm - 8.1 mm0.035" (0.89 mm)ETOYes1
WRAP-L09075Merit WRAPSODY™Endovascular Stent Graft System9 mm75 mm120 cm10F7.3 mm - 8.1 mm0.035" (0.89 mm)ETOYes1
WRAP-L09100Merit WRAPSODY™Endovascular Stent Graft System9 mm100 mm120 cm11F7.3 mm - 8.1 mm0.035" (0.89 mm)ETOYes1
WRAP-L09125Merit WRAPSODY™Endovascular Stent Graft System9 mm125 mm120 cm11F7.3 mm - 8.1 mm0.035" (0.89 mm)ETOYes1
WRAP-L10050Merit WRAPSODY™Endovascular Stent Graft System10 mm50 mm120 cm11F8.2 mm - 9.0 mm0.035" (0.89 mm)ETOYes1
WRAP-L10075Merit WRAPSODY™Endovascular Stent Graft System10 mm75 mm120 cm11F8.2 mm - 9.0 mm0.035" (0.89 mm)ETOYes1
WRAP-L10100Merit WRAPSODY™Endovascular Stent Graft System10 mm100 mm120 cm12F8.2 mm - 9.0 mm0.035" (0.89 mm)ETOYes1
WRAP-L10125Merit WRAPSODY™Endovascular Stent Graft System10 mm125 mm120 cm12F8.2 mm - 9.0 mm0.035" (0.89 mm)ETOYes1
WRAP-L12030Merit WRAPSODY™Endovascular Stent Graft System12 mm30 mm120 cm12F9.0 mm - 10.8 mm0.035" (0.89 mm)ETOYes1
WRAP-L12040Merit WRAPSODY™Endovascular Stent Graft System12 mm40 mm120 cm12F9.0 mm - 10.8 mm0.035" (0.89 mm)ETOYes1
WRAP-L12050Merit WRAPSODY™Endovascular Stent Graft System12 mm50 mm120 cm12F9.0 mm - 10.8 mm0.035" (0.89 mm)ETOYes1
WRAP-L12060Merit WRAPSODY™Endovascular Stent Graft System12 mm60 mm120 cm12F9.0 mm - 10.8 mm0.035" (0.89 mm)ETOYes1
WRAP-L12070Merit WRAPSODY™Endovascular Stent Graft System12 mm70 mm120 cm12F9.0 mm - 10.8 mm0.035" (0.89 mm)ETOYes1
WRAP-L12080Merit WRAPSODY™Endovascular Stent Graft System12 mm80 mm120 cm12F9.0 mm - 10.8 mm0.035" (0.89 mm)ETOYes1
WRAP-L14030Merit WRAPSODY™Endovascular Stent Graft System14 mm30 mm120 cm12F10.9 mm - 12.6 mm0.035" (0.89 mm)ETOYes1
WRAP-L14040Merit WRAPSODY™Endovascular Stent Graft System14 mm40 mm120 cm12F10.9 mm - 12.6 mm0.035" (0.89 mm)ETOYes1
WRAP-L14050Merit WRAPSODY™Endovascular Stent Graft System14 mm50 mm120 cm12F10.9 mm - 12.6 mm0.035" (0.89 mm)ETOYes1
WRAP-L14060Merit WRAPSODY™Endovascular Stent Graft System14 mm60 mm120 cm14F10.9 mm - 12.6 mm0.035" (0.89 mm)ETOYes1
WRAP-L14070Merit WRAPSODY™Endovascular Stent Graft System14 mm70 mm120 cm14F10.9 mm - 12.6 mm0.035" (0.89 mm)ETOYes1
WRAP-L14080Merit WRAPSODY™Endovascular Stent Graft System14 mm80 mm120 cm14F10.9 mm - 12.6 mm0.035" (0.89 mm)ETOYes1
WRAP-L16030Merit WRAPSODY™Endovascular Stent Graft System16 mm30 mm120 cm14F12.7 mm - 14.4 mm0.035" (0.89 mm)ETOYes1
WRAP-L16040Merit WRAPSODY™Endovascular Stent Graft System16 mm40 mm120 cm14F12.7 mm - 14.4 mm0.035" (0.89 mm)ETOYes1
WRAP-L16050Merit WRAPSODY™Endovascular Stent Graft System16 mm50 mm120 cm14F12.7 mm - 14.4 mm0.035" (0.89 mm)ETOYes1
WRAP-L16060Merit WRAPSODY™Endovascular Stent Graft System16 mm60 mm120 cm14F12.7 mm - 14.4 mm0.035" (0.89 mm)ETOYes1
WRAP-L16070Merit WRAPSODY™Endovascular Stent Graft System16 mm70 mm120 cm14F12.7 mm - 14.4 mm0.035" (0.89 mm)ETOYes1
WRAP-L16080Merit WRAPSODY™Endovascular Stent Graft System16 mm80 mm120 cm14F12.7 mm - 14.4 mm0.035" (0.89 mm)ETOYes1
WRAP-S06050Merit WRAPSODY™Endovascular Stent Graft System6 mm50 mm80 cm8F4.6 mm - 5.3 mm0.035" (0.89 mm)ETOYes1
WRAP-S06075Merit WRAPSODY™Endovascular Stent Graft System6 mm75 mm80 cm8F4.6 mm - 5.3 mm0.035" (0.89 mm)ETOYes1
WRAP-S06075-WAVEMerit WRAPSODY™Endovascular Stent Graft System6 mm75 mm80 cm8F4.6 mm - 5.3 mm0.035" (0.89 mm)ETOYes1
WRAP-S06100Merit WRAPSODY™Endovascular Stent Graft System6 mm100 mm80 cm8F4.6 mm - 5.3 mm0.035" (0.89 mm)ETOYes1
WRAP-S06125Merit WRAPSODY™Endovascular Stent Graft System6 mm125 mm80 cm8F4.6 mm - 5.3 mm0.035" (0.89 mm)ETOYes1
WRAP-S07050Merit WRAPSODY™Endovascular Stent Graft System7 mm50 mm80 cm9F5.4 mm - 6.1 mm0.035" (0.89 mm)ETOYes1
WRAP-S07075Merit WRAPSODY™Endovascular Stent Graft System7 mm75 mm80 cm9F5.4 mm - 6.1 mm0.035" (0.89 mm)ETOYes1
WRAP-S07100Merit WRAPSODY™Endovascular Stent Graft System7 mm100 mm80 cm9F5.4 mm - 6.1 mm0.035" (0.89 mm)ETOYes1
WRAP-S07125Merit WRAPSODY™Endovascular Stent Graft System7 mm125 mm80 cm9F5.4 mm - 6.1 mm0.035" (0.89 mm)ETOYes1
WRAP-S08050Merit WRAPSODY™Endovascular Stent Graft System8 mm50 mm80 cm9F6.2 mm - 7.2 mm0.035" (0.89 mm)ETOYes1
WRAP-S08075Merit WRAPSODY™Endovascular Stent Graft System8 mm75 mm80 cm9F6.2 mm - 7.2 mm0.035" (0.89 mm)ETOYes1
WRAP-S08100Merit WRAPSODY™Endovascular Stent Graft System8 mm100 mm80 cm10F6.2 mm - 7.2 mm0.035" (0.89 mm)ETOYes1
WRAP-S08125Merit WRAPSODY™Endovascular Stent Graft System8 mm125 mm80 cm10F6.2 mm - 7.2 mm0.035" (0.89 mm)ETOYes1
WRAP-S09050Merit WRAPSODY™Endovascular Stent Graft System9 mm50 mm80 cm10F7.3 mm - 8.1 mm0.035" (0.89 mm)ETOYes1
WRAP-S09075Merit WRAPSODY™Endovascular Stent Graft System9 mm75 mm80 cm10F7.3 mm - 8.1 mm0.035" (0.89 mm)ETOYes1
WRAP-S09100Merit WRAPSODY™Endovascular Stent Graft System9 mm100 mm80 cm11F7.3 mm - 8.1 mm0.035" (0.89 mm)ETOYes1
WRAP-S09125Merit WRAPSODY™Endovascular Stent Graft System9 mm125 mm80 cm11F7.3 mm - 8.1 mm0.035" (0.89 mm)ETOYes1
