Performa® Vessel-Sizing Catheters
Request Information
VISUALIZE THE DIFFERENCE.

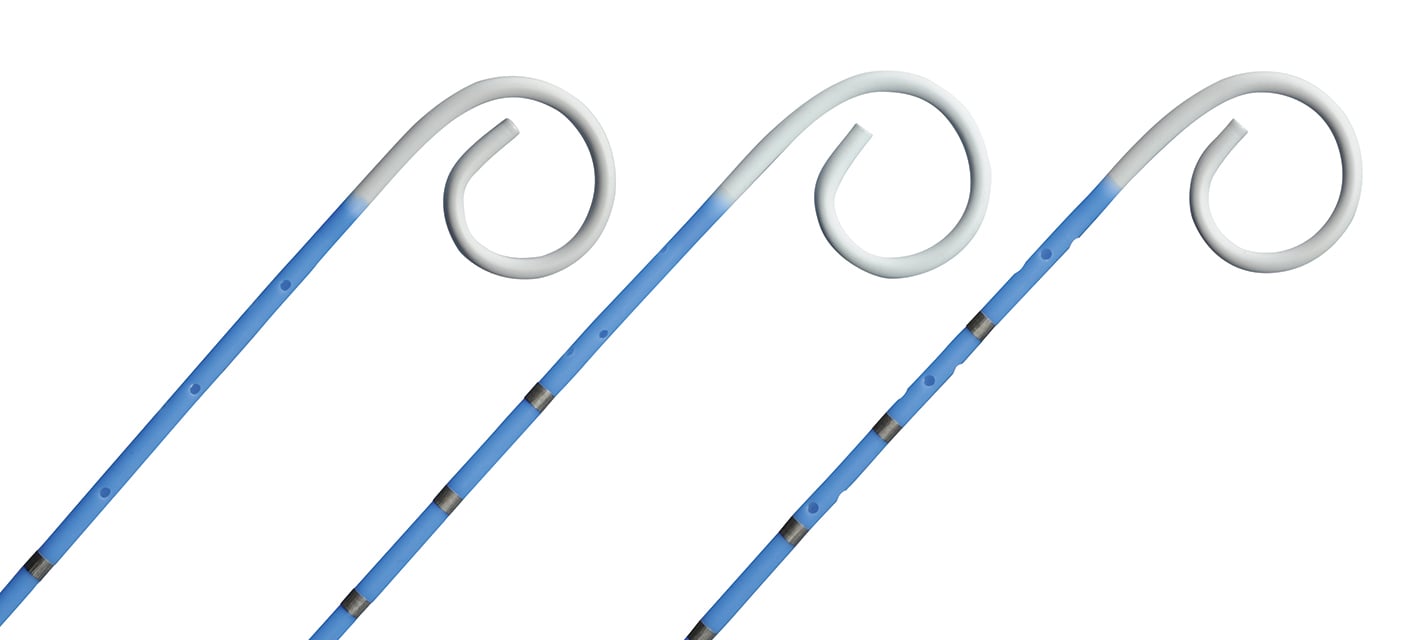

Merit’s Performa® Vessel-Sizing Catheters provide clinicians with an instrument for accurate measurement of a patient’s anatomy and will take the guess work out of electing the appropriate interventional device.
Features & Benefits

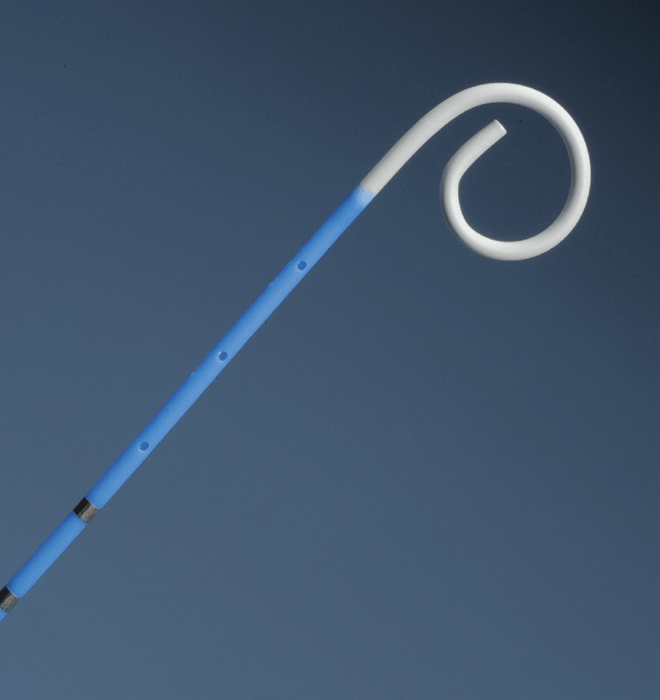

Standard Configuration
Platinum marker bands are placed at the distal portion of the catheter to determine accurate vessel sizing.

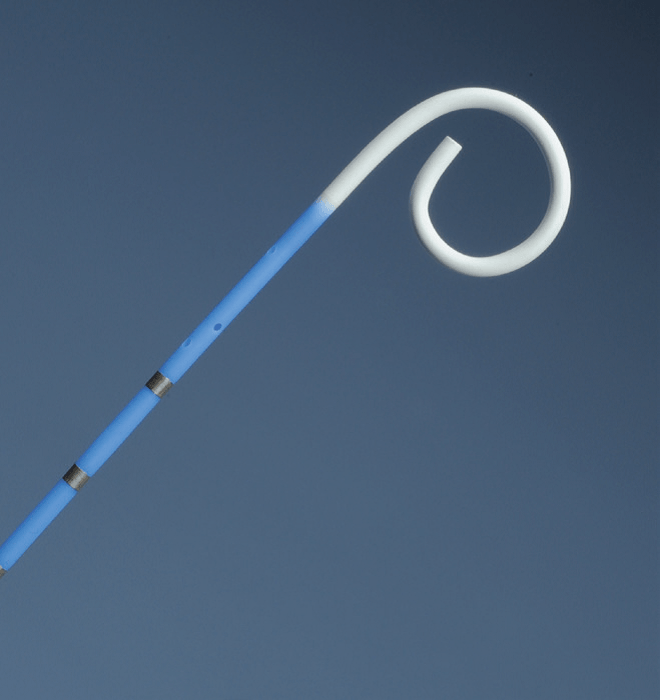

SH Configuration
Platinum marker bands are positioned closer to the pigtail curve allowing bands to be visualized closer to the vessel

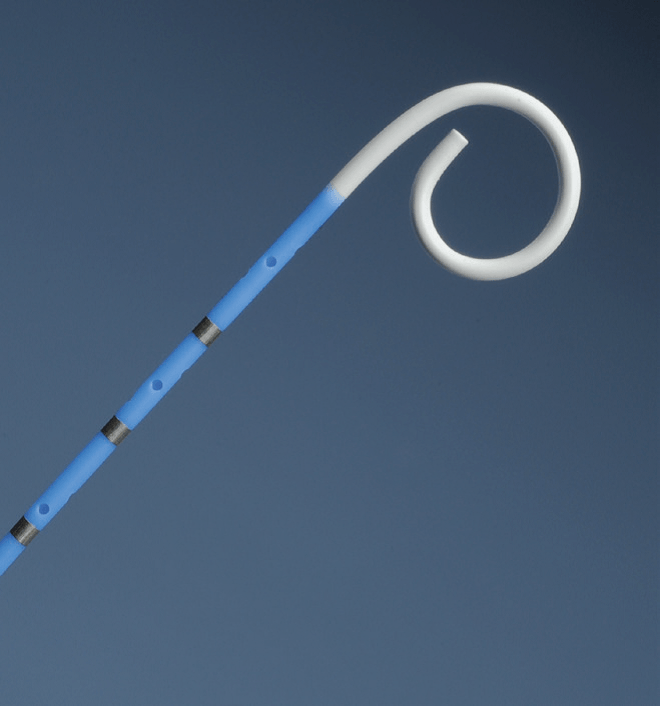

AVS Configuration
Platinum marker bands have side ports placed between bands to allow quick contrast filling of the vessel while visualizing the marker bands.
ADDITIONAL FEATURES
Marker Bands
- 2 band option – Spaced 2 cm apart
- 11 and 20 band options – Eleven bands spaced 1 cm apart for a 10 cm segment. Also available with twenty bands spaced 1 cm apart for a 19 cm segment.

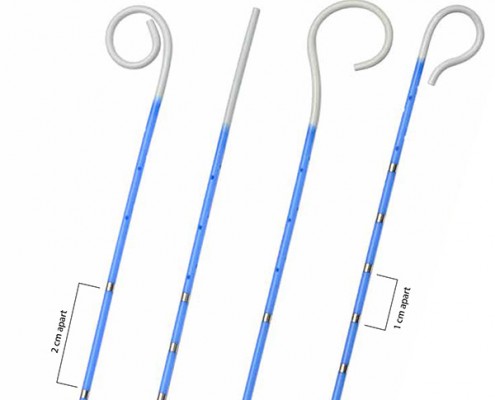

Four Tip Configurations
Available in Pigtail, straight, Modified Hook and ultra Bolus Flush styles.
Documents
Discover more about the Performa® Vessel-Sizing Catheters by reviewing the brochures and Instructions for Use.
Current IFUs
Current Brochures
Order Information
View All Details
| Catalog Number | Expanded Family Name1 | Braided | French Size (F) | Length | Label Short Description | Catheter Shape | Internal Diameter | # Side Ports | Recommended Guide Wire | Marker Bands and Spacing | Sterilization | Latex Free | HCPCS Code | Shipping Box Qty | GS1 | GTIN Unit | GTIN Carton | GTIN Shipper |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46535AVS20MHK | Vessel Sizing | Non-Braided | 4F | 65 cm | MOD HOOK-20B | Modified Hook | 0.041" (1.04 mm) | 6 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 510035AVS20MHK | Vessel Sizing | Non-Braided | 5F | 100 cm | MOD HOOK-20B | Modified Hook | 0.052" (1.32 mm) | 6 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 510035AVS20PIG | Vessel Sizing | Non-Braided | 5F | 100 cm | PIG-VSC-20B | Pigtail | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 510035AVS2MHK | Vessel Sizing | Non-Braided | 5F | 100 cm | MOD HOOK-2B | Modified Hook | 0.052" (1.32 mm) | 6 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 510035AVS2PIG | Vessel Sizing | Non-Braided | 5F | 100 cm | PIG-VSC-2B | Pigtail | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 510035AVS2STR | Vessel Sizing | Non-Braided | 5F | 100 cm | VSC-2B | Straight | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 56535AVS20MHK | Vessel Sizing | Non-Braided | 5F | 65 cm | MOD HOOK-20B | Modified Hook | 0.052" (1.32 mm) | 6 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 56535AVS20PIG | Vessel Sizing | Non-Braided | 5F | 65 cm | PIG-VSC-20B | Pigtail | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 56535AVS2MHK | Vessel Sizing | Non-Braided | 5F | 65 cm | MOD HOOK-2B | Modified Hook | 0.052" (1.32 mm) | 6 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 56535AVS2PIG | Vessel Sizing | Non-Braided | 5F | 65 cm | PIG-VSC-2B | Pigtail | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 56535AVS2STR | Vessel Sizing | Non-Braided | 5F | 65 cm | VSC-2B | Straight | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7602-11M | Vessel Sizing | Non-Braided | 5F | 100 cm | PIG-VSC-11B | Pigtail | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 11 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7602-11M65 | Vessel Sizing | Non-Braided | 5F | 65 cm | PIG-VSC-11B | Pigtail | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 11 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7602-20M | Vessel Sizing | Non-Braided | 5F | 100 cm | PIG-VSC-20B | Pigtail | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7602-20M100SH | Vessel Sizing | Non-Braided | 5F | 100 cm | PIG-VSC-20B | Pigtail | 0.052" (1.32 mm) | 5 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7602-20M65 | Vessel Sizing | Non-Braided | 5F | 65 cm | PIG-VSC-20B | Pigtail | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7602-20M65SH | Vessel Sizing | Non-Braided | 5F | 65 cm | PIG-VSC-20B | Pigtail | 0.052" (1.32 mm) | 5 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7602-2M | Vessel Sizing | Non-Braided | 5F | 100 cm | PIG-VSC-2B | Pigtail | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7602-2M65 | Vessel Sizing | Non-Braided | 5F | 65 cm | PIG-VSC-2B | Pigtail | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7603-11M100 | Vessel Sizing | Non-Braided | 5F | 100 cm | MOD HOOK-11B | Modified Hook | 0.052" (1.32 mm) | 6 Side Ports | 0.035" (0.89 mm) | 11 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7603-11M65 | Vessel Sizing | Non-Braided | 5F | 65 cm | MOD HOOK-11B | Modified Hook | 0.052" (1.32 mm) | 6 Side Ports | 0.035" (0.89 mm) | 11 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7603-20M100SH | Vessel Sizing | Non-Braided | 5F | 100 cm | MOD HOOK-20B | Modified Hook | 0.052" (1.32 mm) | 6 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7603-20M65SH | Vessel Sizing | Non-Braided | 5F | 65 cm | MOD HOOK-20B | Modified Hook | 0.052" (1.32 mm) | 6 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7603-2M100 | Vessel Sizing | Non-Braided | 5F | 100 cm | MOD HOOK-2B | Modified Hook | 0.052" (1.32 mm) | 6 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7603-2M65 | Vessel Sizing | Non-Braided | 5F | 65 cm | MOD HOOK-2B | Modified Hook | 0.052" (1.32 mm) | 6 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7673-11M100SH | Vessel Sizing | Non-Braided | 5F | 100 cm | VSC-11B | Straight | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 11 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7673-11M65SH | Vessel Sizing | Non-Braided | 5F | 65 cm | VSC-11B | Straight | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 11 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7673-20M100SH | Vessel Sizing | Non-Braided | 5F | 100 cm | VSC-20B | Straight | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7673-20M65SH | Vessel Sizing | Non-Braided | 5F | 65 cm | VSC-20B | Straight | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7673-2M | Vessel Sizing | Non-Braided | 5F | 100 cm | VSC-2B | Straight | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7673-2M65 | Vessel Sizing | Non-Braided | 5F | 65 cm | VSC-2B | Straight | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7674-2M | Vessel Sizing | Non-Braided | 5F | 100 cm | UBF-VSC-2B | Ultra Bolus | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7674-2M65 | Vessel Sizing | Non-Braided | 5F | 65 cm | UBF-VSC-2B | Ultra Bolus | 0.052" (1.32 mm) | 10 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7742-20M100SH | Vessel Sizing | Non-Braided | 4F | 100 cm | PIG-VSC-20B | Pigtail | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7742-20M65SH | Vessel Sizing | Non-Braided | 4F | 65 cm | PIG-VSC-20B | Pigtail | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 20 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 1 | ||||
| 7742-2M100SH | Vessel Sizing | Non-Braided | 4F | 100 cm | PIG-VSC-2B | Pigtail | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7742-2M65SH | Vessel Sizing | Non-Braided | 4F | 65 cm | PIG-VSC-2B | Pigtail | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7743-2M100SH | Vessel Sizing | Non-Braided | 4F | 100 cm | UBF-VSC-2B | Ultra Bolus | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7743-2M65SH | Vessel Sizing | Non-Braided | 4F | 65 cm | UBF-VSC-2B | Ultra Bolus | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7744-2M100SH | Vessel Sizing | Non-Braided | 4F | 100 cm | VSC-2B | Straight | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7744-2M65SH | Vessel Sizing | Non-Braided | 4F | 65 cm | VSC-2B | Straight | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7755-2M100 | Vessel Sizing | Non-Braided | 4F | 100 cm | MOD HOOK-2B | Modified Hook | 0.041" (1.04 mm) | 6 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7755-2M65 | Vessel Sizing | Non-Braided | 4F | 65 cm | MOD HOOK-2B | Modified Hook | 0.041" (1.04 mm) | 6 Side Ports | 0.035" (0.89 mm) | 2 Bands (2 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7757-2MP65 | Vessel Sizing | Non-Braided | 4F | 65 cm | PED-PIG-VSC-2B | Pigtail | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7757-2MP65SH | Vessel Sizing | Non-Braided | 4F | 65 cm | PED-PIG-VSC-2B | Pigtail | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7757-2MP65SHA | Vessel Sizing | Non-Braided | 4F | 65 cm | PED-PIG-VSC-2B | Pigtail | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7757-2MP80 | Vessel Sizing | Non-Braided | 4F | 80 cm | PED-PIG-VSC-2B | Pigtail | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7757-2MP80SH | Vessel Sizing | Non-Braided | 4F | 80 cm | PED-PIG-VSC-2B | Pigtail | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (1 cm apart) | ETO | Yes | No Applicable Code | 5 | ||||
| 7757-2MP80SHTC | Vessel Sizing | Non-Braided | 4F | 80 cm | PED-PIG-VSC-2B | Pigtail | 0.041" (1.04 mm) | 5 Side Ports | 0.035" (0.89 mm) | 2 Bands (5 mm apart) | ETO | Yes | No Applicable Code | 5 |
Related products

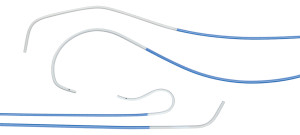

Performa® Diagnostic Peripheral Catheters
