OPTIONS WITH PERFORMANCE

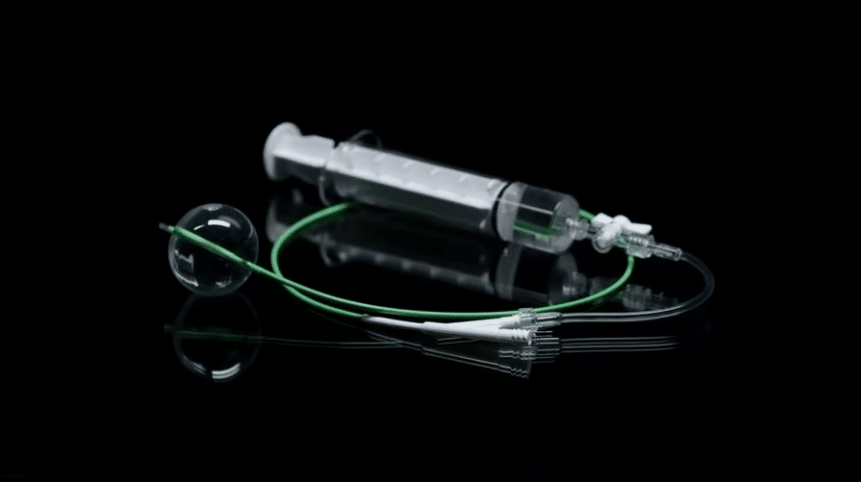

Q50 stent graft balloon catheters have demonstrated reliability for abdominal and thoracic EVAR procedures and reinterventions. In addition to reliable stent graft modeling and expansion, the Q50 balloon catheters are ideal for temporary occlusion of large vessels.
Features & Benefits
Broadest Balloon Diameter Range
With the lowest available profile, 10mm to 50mm inflation diameters, and 10F and 12F introducer sheath compatible.

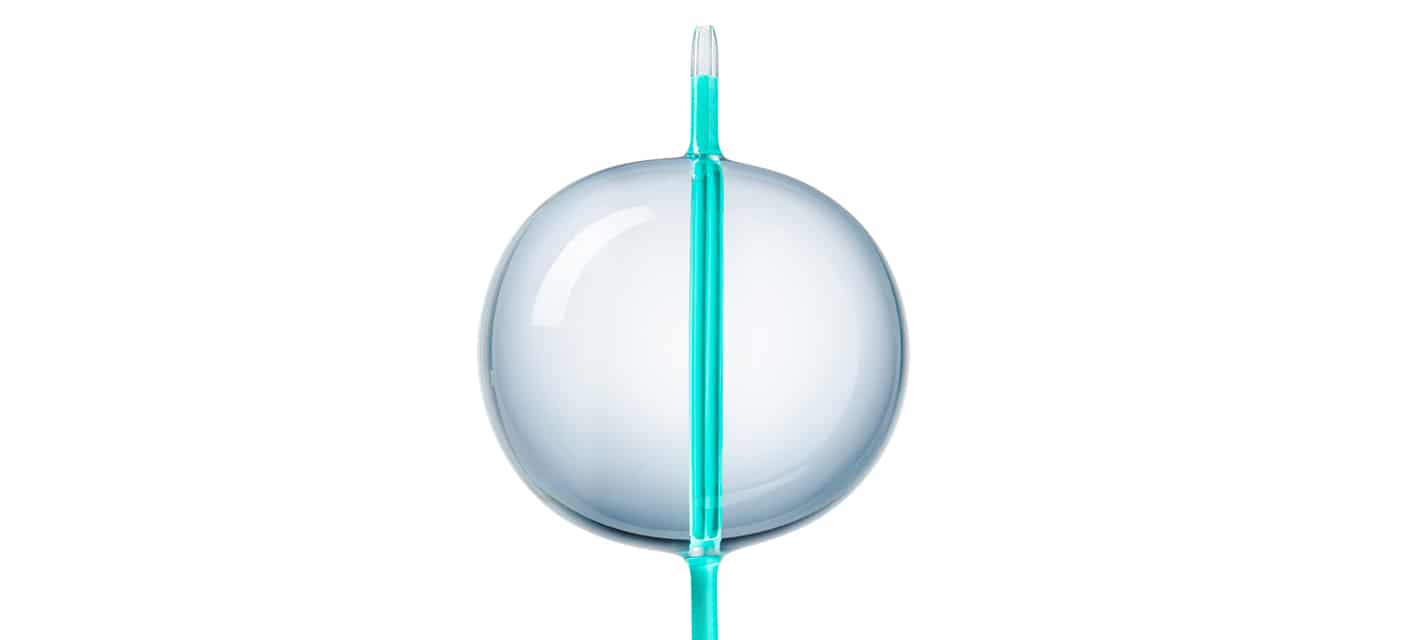

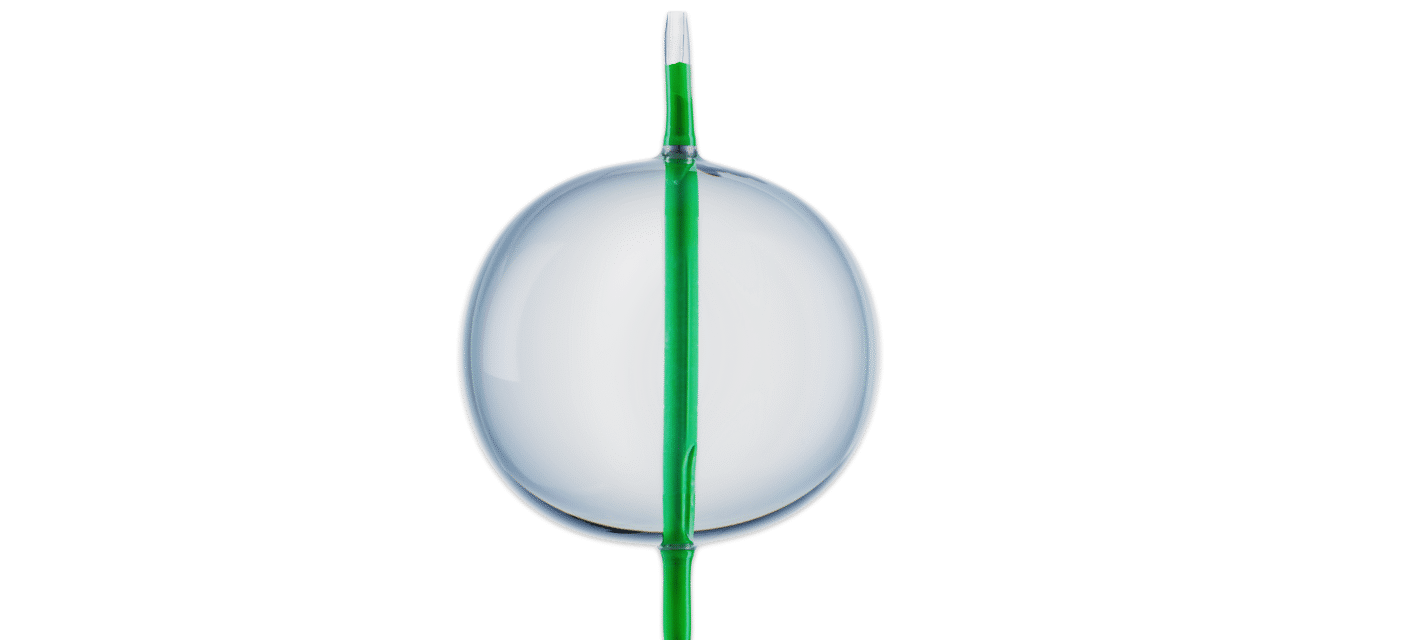

Strong Yet Compliant Balloon
Utilizing a proprietary polyurethane technology.
Two Versatile Catheter Lengths
65cm length ideal for AAA cases & 100cm length ideal for TAA cases and general occlusion.
- Unique tapered flexible tip facilitates device passage
- Exceptional balloon inflation and deflation rates
- Optimized catheter pushability
- Accurately positioned markerbands at balloon ends
BALLOON COMPLIANCE CHART
|RECOMMENDED INFLATION VOLUME (CC)||BALLOON DIAMETER (MM)|
Q50® PLUS is manufactured by and is a registered trademark of QXMédical.
|Catalog Number||Guide Wire||Sheath Compatibility||Balloon Outer Diameters||Balloon Length (mm)||Catheter Length (cm)||Sterilization||Latex Free||Shipping Box Qty||GS1||GTIN Unit||GTIN Carton||GTIN Shipper|
|Q50-100-X||0.038" (0.97 mm)||10F (3.3 mm)||1.97" (50 mm)||40 mm||100 cm||ETO||Yes||1|
|Q50-100P||0.038" (0.97 mm)||12F (4.0 mm)||1.97" (50 mm)||40 mm||100 cm||ETO||Yes||1|
|Q50-65-X||0.038" (0.97 mm)||10F (3.3 mm)||1.97" (50 mm)||40 mm||65 cm||ETO||Yes||1|
|Q50-65P||0.038" (0.97 mm)||12F (4.0 mm)||1.97" (50 mm)||40 mm||100 cm||ETO||Yes||1|
