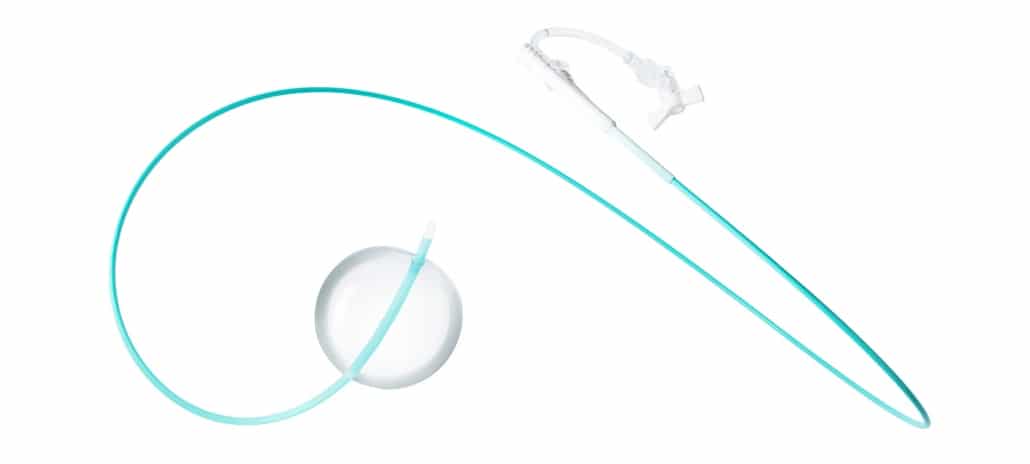

Q50® Stent Graft Balloon Catheters

products images
solution

Feature & Benefits

Broadest Balloon Diameter Range

Broadest Balloon Diameter Range

With the lowest available profile, 10mm to 50mm inflation diameters, and 10F and 12F introducer sheath compatible.

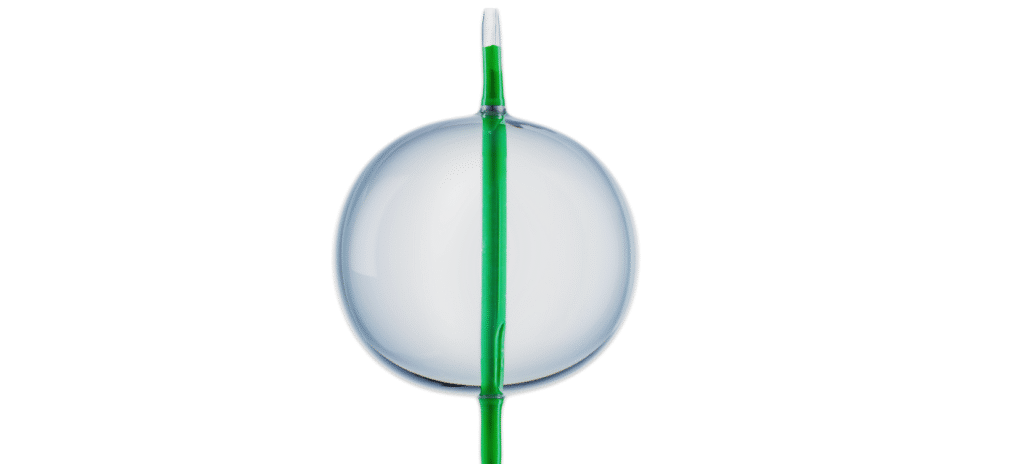

Strong Yet Compliant Balloon

Strong Yet Compliant Balloon

Utilizing a proprietary polyurethane technology.

Two Versatile Catheter Lengths

Two Versatile Catheter Lengths

65cm length ideal for AAA cases & 100cm length ideal for TAA cases and general occlusion.

ADDITIONAL FEATURES

  • Unique tapered flexible tip facilitates device passage
  • Exceptional balloon inflation and deflation rates
  • Optimized catheter pushability
  • Accurately positioned markerbands at balloon ends

BALLOON COMPLIANCE CHART

RECOMMENDED INFLATION VOLUME (CC) BALLOON DIAMETER (MM)
3 10
6 20
16 30
32 40
44 45
60 50

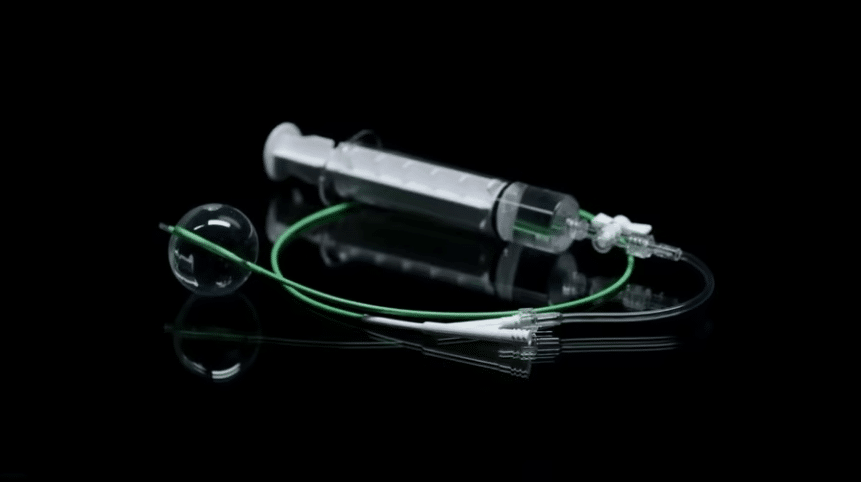

Q50® PLUS is manufactured by and is a registered trademark of QXMédical.

QXMedical

document

Documents

Discover more about the Q50® Stent Graft Balloon Catheters by reviewing the brochures and Instructions for Use.

list

Order Information
