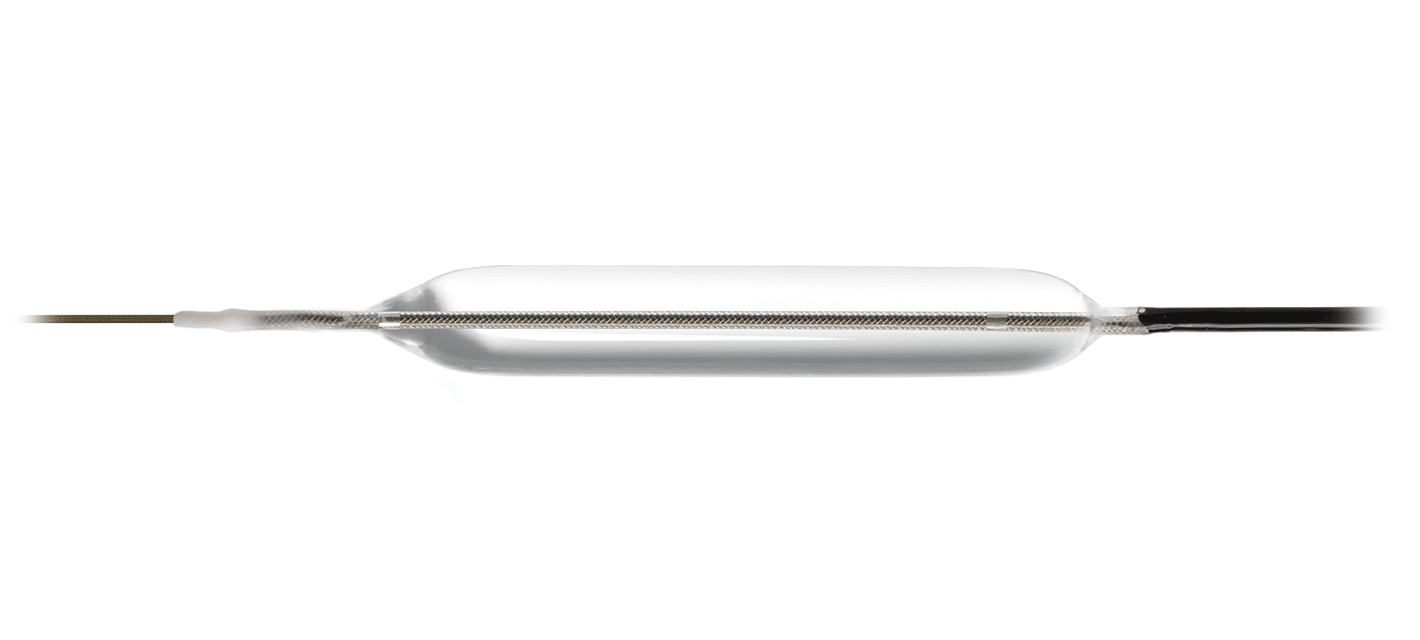

Elation 5-Stage Wireguided Dilation Balloon - First and Only

The first and only 5-stage Wireguided dilation balloon on the market. Elation5 adds value by expanding the treatment range available on a single balloon while maintaining all the premium qualities you have come to expect from Merit’s Elation 3-Stage Dilation Balloons.

Video Gallery

Introducing the Elation5 5-Stage Balloon Dilator

Introducing the Elation5 5-Stage Balloon Dilator

Elation Balloon Dilator [In-Service]

Features & Benefits

Our proprietary balloon and catheter designs result in a rapid, complete deflation and easy removal from the scope. The 5-stage balloon reduces frequency of needing a second balloon, is available in unique 5 mm and 21 mm diameters, and a simple locking clip allows for easy containment of the catheter when not in use.

Low Re-insertion Force

Allows the balloon to pass through the working channel of the scope more than one time.

High Clarity Material

Provides an optimal optical clarity without cone distortion

Radiopaque Marker Bands

Positioned at the balloon shoulders for precise dilation location.

Documents

Discover more about the Elation5 Wireguided Dilation Balloon by reviewing the product documents.

Current IFUs

Current Brochures

Order Information

Please note:
• All Elation5 Wireguided Dilation Balloons are sterile and latex free.

View All Details
Catalog NumberMinimum Required Working ChannelRecommended Guide WireBalloon Outer DiametersBalloon Length (mm)Catheter Length (mm)French SizeGS1GTIN UnitGTIN CartonGTIN Shipper
EPCX102.8 mm0.035" (0.89 mm)9 mm, 10 mm, 11 mm, 12 mm, 13 mm55 mm2400 mm7.5F
EPCX122.8 mm0.035" (0.89 mm)11 mm, 12 mm, 13.5 mm, 15 mm, 16 mm55 mm2400 mm7.5F
EPCX152.8 mm0.035" (0.89 mm)14 mm, 15 mm, 16.5 mm, 18 mm, 19 mm55 mm2400 mm7.5F
EPCX182.8 mm0.035" (0.89 mm)17 mm, 18 mm, 19 mm, 20 mm, 21 mm55 mm2400 mm7.5F
EPCX62.8 mm0.035" (0.89 mm)5 mm, 6 mm, 7 mm, 8 mm, 9 mm55 mm2400 mm7.5F
EPCX82.8 mm0.035" (0.89 mm)7 mm, 8 mm, 9 mm, 10 mm, 11 mm55 mm2400 mm7.5F
EPX102.8 mm0.035" (0.89 mm)9 mm, 10 mm, 11 mm, 12 mm, 13 mm55 mm1800 mm7.5F
EPX122.8 mm0.035" (0.89 mm)11 mm, 12 mm, 13.5 mm, 15 mm, 16 mm55 mm1800 mm7.5F
EPX152.8 mm0.035" (0.89 mm)14 mm, 15 mm, 16.5 mm, 18 mm, 19 mm55 mm1800 mm7.5F
EPX182.8 mm0.035" (0.89 mm)17 mm, 18 mm, 19 mm, 20 mm, 21 mm55 mm1800 mm7.5F
EPX62.8 mm0.035" (0.89 mm)5 mm, 6 mm, 7 mm, 8 mm, 9 mm55 mm1800 mm7.5F
EPX82.8 mm0.035" (0.89 mm)7 mm, 8 mm, 9 mm, 10 mm, 11 mm55 mm1800 mm7.5F
