Pressure Monitoring Tubing

Request Information

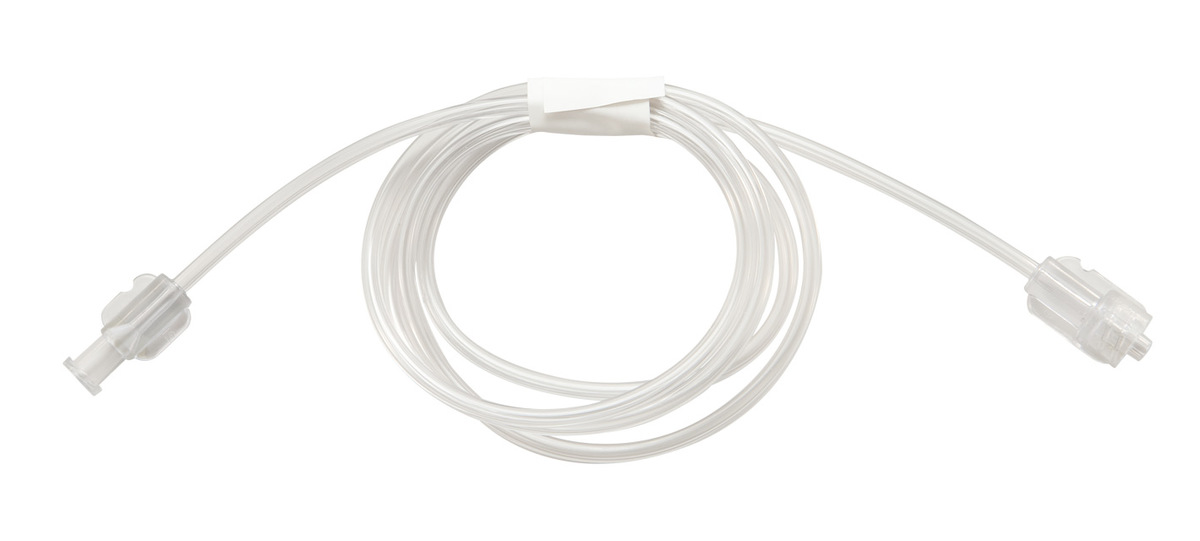

Pressure Monitoring Tubing

Pressure monitoring tubing is non-expanding PVC tubing with a rigid wall thickness which will ensure high quality wave forms with improved clarity. Available with both male-to-male and male-to-female connectors from 6 inches (15 cm) to 96 inches (244 cm) in length.

Features & Benefits

To compliment our extensive line of quality angiography accessories, Merit Medical has developed a complete line of high-pressure tubing to meet all procedural requirements.

Pressure Monitoring Tubing

  • 1200 PSI (83 Bar) ExCiteTM Tubing
  • 1200 PSI (83 Bar) Clear Tubing
  • 900 PSI (62 Bar) Clear Tubing
  • 500 PSI (34 Bar) Clear Tubing
  • 1200 PSI (83 Bar) Braided Tubing

Airless Rotator

Merit Medical’s patented airless rotator enhances patient safety by minimizing the possibility of trapped air.

Merit Keep

Helps organize tubing and maintain better control of the sterile field. Merit’s Keep provides the security of knowing the tubing will stay in place, without the worry of contamination of the sterile field. All flexible tubing styles are available with Merit’s patented Keep feature.

Male Rotator Luer Connector

Allows 360o manipulation of the catheter without disconnection or tangling of the tubing lines.

Female Luer Connector

Merit’s stringent specifications provide consistent connectors and tubing maintaining our “quality first” reputation.

Male Fixed Luer Connector

Assures secure connection to the catheter.

Documents

Discover more about the Pressure Monitoring Tubing by reviewing the brochures and Instructions for Use.

Current Brochures

Order Information

View All Details
Catalog NumberExpanded Family NameTubing Length (in/cm)Proximal Hub StyleDistal Hub Style1Tubing IDTubing ODSterilizationLatex FreeHCPCS Code
AWL24Pressure Monitoring Tubing24" (61 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Applicable Code
PM6006Pressure Monitoring Tubing6" (15 cm)Fixed Male ConnectorFixed Male to Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Applicable Code
PM6012Pressure Monitoring Tubing12" (30 cm)Fixed Male ConnectorFixed Male to Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Alpplicable Code
PM6024Pressure Monitoring Tubing24" (61 cm)Fixed Male ConnectorFixed Male to Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Applicable Code
PM6036Pressure Monitoring Tubing36" (91 cm)Fixed Male ConnectorFixed Male to Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Applicable Code
PM6048Pressure Monitoring Tubing48" (122 cm)Fixed Male ConnectorFixed Male to Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Alpplicable Code
PM6060Pressure Monitoring Tubing60" (152 cm)Fixed Male ConnectorFixed Male to Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Applicable Code
PM6072Pressure Monitoring Tubing72" (183 cm)Fixed Male ConnectorFixed Male to Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Applicable Code
PM6096Pressure Monitoring Tubing96" (244 cm)Fixed Male ConnectorFixed Male to Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYes
PM6106Pressure Monitoring Tubing6" (15 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Alpplicable Code
PM6112Pressure Monitoring Tubing12" (30 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Alpplicable Code
PM6124Pressure Monitoring Tubing24" (61 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Alpplicable Code
PM6136Pressure Monitoring Tubing36" (91 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Alpplicable Code
PM6148Pressure Monitoring Tubing48" (122 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Alpplicable Code
PM6148-BPressure Monitoring Tubing48" (122 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYes
PM6148-RPressure Monitoring Tubing48" (122 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYes
PM6160Pressure Monitoring Tubing60" (152 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Alpplicable Code
PM6160-YPressure Monitoring Tubing60" (152 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYes
PM6172Pressure Monitoring Tubing72" (183 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Alpplicable Code
PM6184Pressure Monitoring Tubing84" (213 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Applicable Code
PM6196Pressure Monitoring Tubing96" (244 cm)Fixed Female Luer ConnectorFixed Male Connector0.060" (1.52 mm)0.125" (3.18 mm)ETOYesNo Applicable Code
