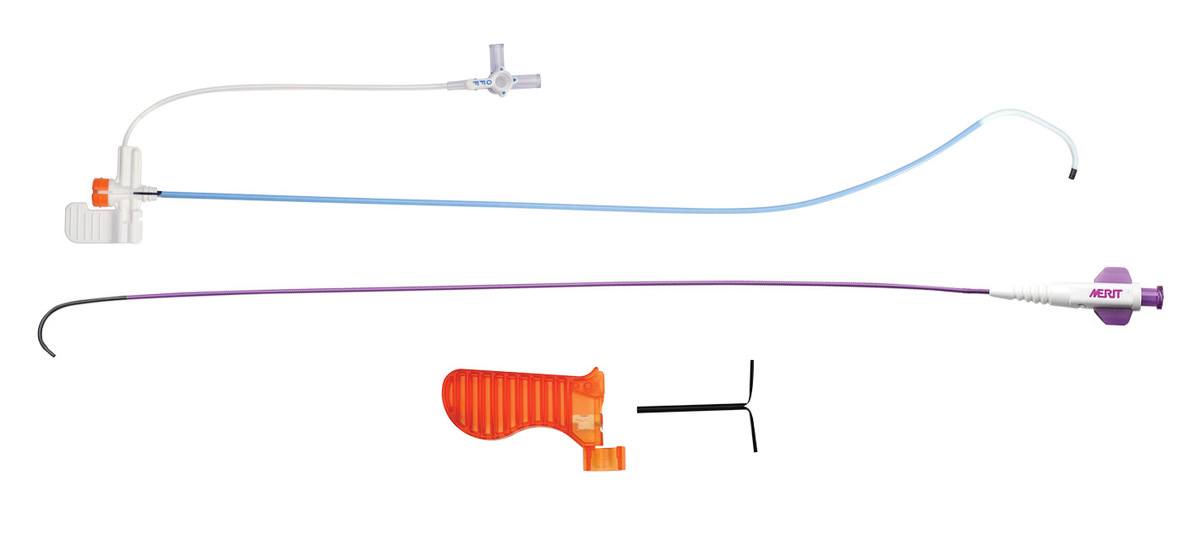

Worley™ Advanced Lateral Vein Introducer

Request Information

To meet the challenges of cardiac resynchronization therapy (CRT), you need advanced LV leads and LV delivery systems that match the tortuosity of your patient’s anatomy. The Worley Lateral Vein Introducer (LVI) system is designed to offer you the flexibility you need for reliable and accurate placement of LV leads to their target location.

Features & Benefits

  • Soft radiopaque tip minimizes risk of vessel wall trauma and improves fluoroscopic visualization
  • Proximal and distal curves enhance sub-selective access to angulated lateral vein branches
  • 5F OD target vein selector for improved target vein selection and guide wire replacement
  • 5.5F or 7F ID LVI provides ample room to perform various advanced CRT implantation techniques
  • Multidurometer proximal curve construction delivers improved tip directivity
  • Braided sheath construction supports better torque control and stability. Sliceable sheath for easy removal
  • Side port allows open access infusion and contrast injection during implantation
  • Integrated break-away hemostatic hub and handle designed to protect against blood loss and air embolism. Hub requires no cutting. Secure hub grip reduces the risk of lead dislodgement during removal

ADVANCED, EFFICIENT & SUCCESSFUL LV LEAD IMPLANTATION

When used together with the Worley Advanced CSG and Worley Vein Selector, the Worley Advanced LVI provides the tools and solutions needed to reduce implantation times, gain easier access to the target vessel, and improve chances for successful CRT implantation.1

4 CURVES FOR VARYING ANATOMY

Renal Curve

Worley Renal Curve

For common coronary venous anatomies

Hook Curve

For smaller challenging coronary venous anatomies

Hockey Stick Curve

For larger coronary venous anatomies

Multi-Purpose Curve

For other coronary venous anatomies


INTEGRATED VALVE & HUB DESIGN



Breakaway Valve

provides direct access for the slider to engage the braided sheath

Oversized Grip

reduces risk of lead movement

Easy-to-Use Slicer

mates to the CSG hub for improved stability during sheath removal

Documents

Discover more about the Worley™ Advanced Lateral Vein Introducer by reviewing the brochures and Instructions for Use.

Current IFUs

Current Brochures

Order Information

View All Details
Catalog NumberTrademarkExpanded Family NameCurve DesignFrench Size (F)Sheath Length (cm)Sheath Inner Diameter (ID) (F)SterilizationLatex FreeShipping Box Qty
FCL-200-00SafeSheath® WorleyWorley™ Advanced Telescopic LVI SystemHook5.5F62 cm5.5FETOYes1
FCL-200-01SafeSheath® WorleyWorley™ Advanced Telescopic LVI SystemHockey stick5.5F62 cm5.5FETOYes1
FCL-200-02SafeSheath® WorleyWorley™ Advanced Telescopic LVI SystemMulti-purpose5.5F62 cm5.5FETOYes1
FCL-200-03SafeSheath® WorleyWorley™ Advanced Telescopic LVI SystemRenal5.5F62 cm5.5FETOYes1
WORLVI-75-5-62-07-HOWorley™ Adv. LVIWorley™ Advanced Telescopic LVI SystemHook7F62 cm7FETOYes1
WORLVI-75-5-62-07-HSWorley™ Adv. LVIWorley™ Advanced Telescopic LVI SystemHockey stick7F62 cm7FETOYes1
WORLVI-75-5-62-07-MPWorley™ Adv. LVIWorley™ Advanced Telescopic LVI SystemMulti-purpose7F62 cm7FETOYes1
WORLVI-75-5-62-07-REWorley™ Adv. LVIWorley™ Advanced Telescopic LVI SystemRenal7F62 cm7FETOYes1
WORLVI-75-5-62-55-HOWorley™ Adv. LVIWorley™ Advanced Telescopic LVI SystemHook5.5F62 cm5.5FETOYes1
WORLVI-75-5-62-55-HSWorley™ Adv. LVIWorley™ Advanced Telescopic LVI SystemHockey stick5.5F62 cm5.5FETOYes1
WORLVI-75-5-62-55-MPWorley™ Adv. LVIWorley™ Advanced Telescopic LVI SystemMulti-purpose5.5F62 cm5.5FETOYes1
WORLVI-75-5-62-55-REWorley™ Adv. LVIWorley™ Advanced Telescopic LVI SystemRenal5.5F62 cm5.5FETOYes1
