Worley™ Advanced Coronary Sinus Guide

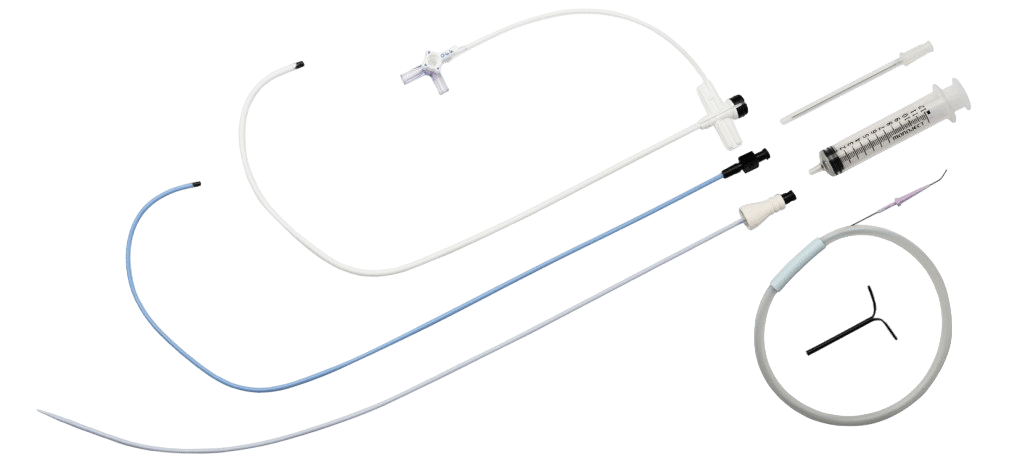

products images
solution

Features & Benefits

  • Braided core variable shape design provides better torque control and flexibility
  • Depth position marker for measuring the 43.5 cm distance between the braided core tip and the CSG
  • Integrated peel-away hemostasis valve handles like a standard peel-away introducer to reduce risk of blood loss and air embolism
  • Side port allows open access infusion and contrast injection during implantation
  • Crush resistant pebax® sheath with braided core reduces kinking and facilitates easy removal
  • 9 French ID provides ample room to perform various advanced CRT implantation techniques
  • Soft radiopaque tip reduces risk of vessel wall trauma and improves fluoroscopic visualization
  • Multiple introducer angles  for better CS lead placement

Worley Sinus Guide Product Features Call Out


ADVANCED POSSIBILITIES FOR CORONARY SINUS CANNULATION

The Worley Advanced Coronary Sinus Guide’s unique curve used in conjunction with the Braided Core helps you match your patient’s anatomy to the length and curve of the Coronary Sinus Guide.  The Braided Core inner catheter can be advanced as needed to create variable curves reducing the number of sheaths needed to facilitate a successful implantation.

Image showing unique curve of Worley Sinus Guide


BRAIDED CORE VARIABLE SHAPE DESIGN

WORLEY SIZE GUIDE

  • Reduces the number of sheaths needed to facilitate a successful implantation
  • Radiopaque tip for better fluoroscopic visualization
  • Inner catheter can be advanced as needed up to 6.5 cm from tip to facilitate CS cannulation in varying anatomy
  • Greater torque control when compared to extruded Coronary Sinus Guide
  • Proximal black depth-positioning marker for depth guidance and accurate placement

INTEGRATED PEEL-AWAY HEMOSTASIS VALVE

  • Integrated valve and hub design allows handling like a standard peel-away introducer
  • Minimizes the risk of lead movement or dislodgement during catheter removal
  • Provides easy splitting of the delivery sheath without the need of a separate slitter



document

Documents

Discover more about the Worley™ Advanced Coronary Sinus Guide by reviewing the brochures and Instructions for Use.

list

Order Information
