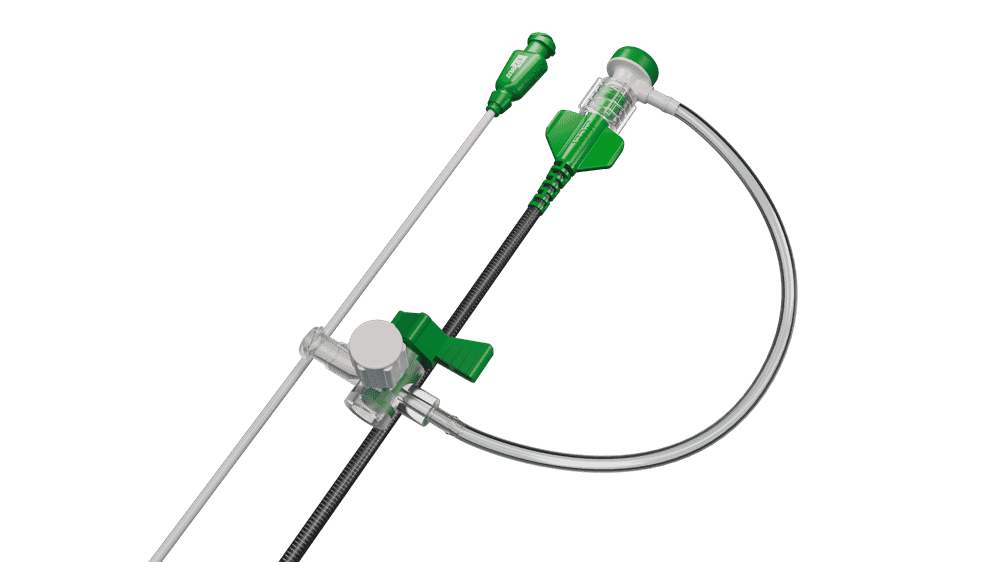

Prelude Roadster™ Guide Sheath

Prelude Roadster Guide Sheath - Designed for access to tortuous anatomy

STAY ON COURSE

Expand your diagnostic and interventional procedures with the Prelude Roadster, a long guide sheath designed to access difficult anatomy in the peripheral vasculature. With advanced hydrophilic coating for smooth insertion and durable stainless steel coiling for kink resistance—no matter your destination, stay on course with the Prelude Roadster.

Video Gallery

PRELUDE ROADSTER GUIDE SHEATH [IN-SERVICE]

Prelude Roadster Guide Sheath In-Service Video

Features & Benefits

The Prelude Roadster is designed with the patient and clinician in mind to help provide access to difficult anatomy in the peripheral vasculature. The Prelude Roadster has a high-quality hydrophilic coating that allows a smooth transition as well as stainless-steel coiling for kink resistance to help gain and maintain access. It provides excellent visibility with a marker band and radiopaque tip which will confirm the precise location of the sheath during diagnostic and interventional procedures.

DESIGNED FOR EASE OF ENTRY AND ENHANCED TRACKABILITY

Prelude Roadster - Features & Benefits to ease entry & enhance trackability

1 — Visibility
Marker band and radiopaque tip confirm precise location, especially important during critical balloon inflation.

2 — Minimize Friction
A distal 35-cm length of hydrophilic coating eases entry into the vessel.

3 — Ergonomic Hub
Supports device torque and minimizes kinking.

4 — Patient Safety
A hemostasis valve helps to reduce the potential of patient blood loss.

5 — Strain Relief
Designed to help minimize kinking during insertion.

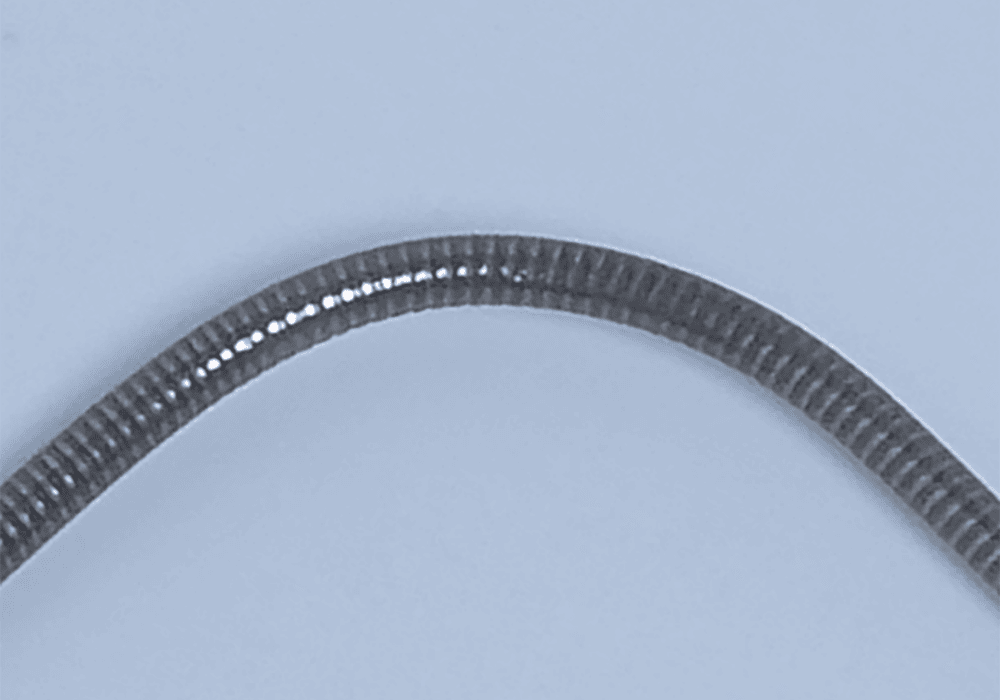

6 — Kink Resistance
A nylon outer layer with stainless steel coil and PTFE liner prevents kinking.

7 — Trackability
Seamless guide wire-to-dilator and dilator-to-sheath transitions facilitate tracking over the wire during placement.


SHAPES AND SIZES TO MEET A WIDE RANGE OF ANATOMICAL NEEDS

DIAMETER SIZES: A wide selection of lumen sizes designed for diagnostic and therapeutic device delivery.

Prelude Roadster - Wide selection of lumen sizes

TIP SHAPES: Four tip shapes to help you address procedural challenges.

Prelude Roadster - Multiple Sheath Options



1 — Hockey Stick (HS)

2 — Straight (S)

3 — Renal Double Curve (R)

4 — Multipurpose (MP)



LENGTHS: 45 cm, 65 cm, and 90 cm sheath lengths to help you reach challenging anatomy.

Prelude Roadster - 45 cm, 60 cm, 90 cm lengths for reaching difficult anatomy

Documents

Loading...

Order Information

How to Read the Merit Prelude Roadster Part Number

PG6F90MPX (Part Number Example) PG 6F 90 MP X
Prelude Guide Sheath French Size Length (cm) Tip Shape Extra Body
