Kensington Guide Wire Bone Biopsy System

The Kensington Bone Biopsy System for Seldinger-inspired placement of a blunt 11G introducer via a 20G guide wire for a guided approach before reaching bone.

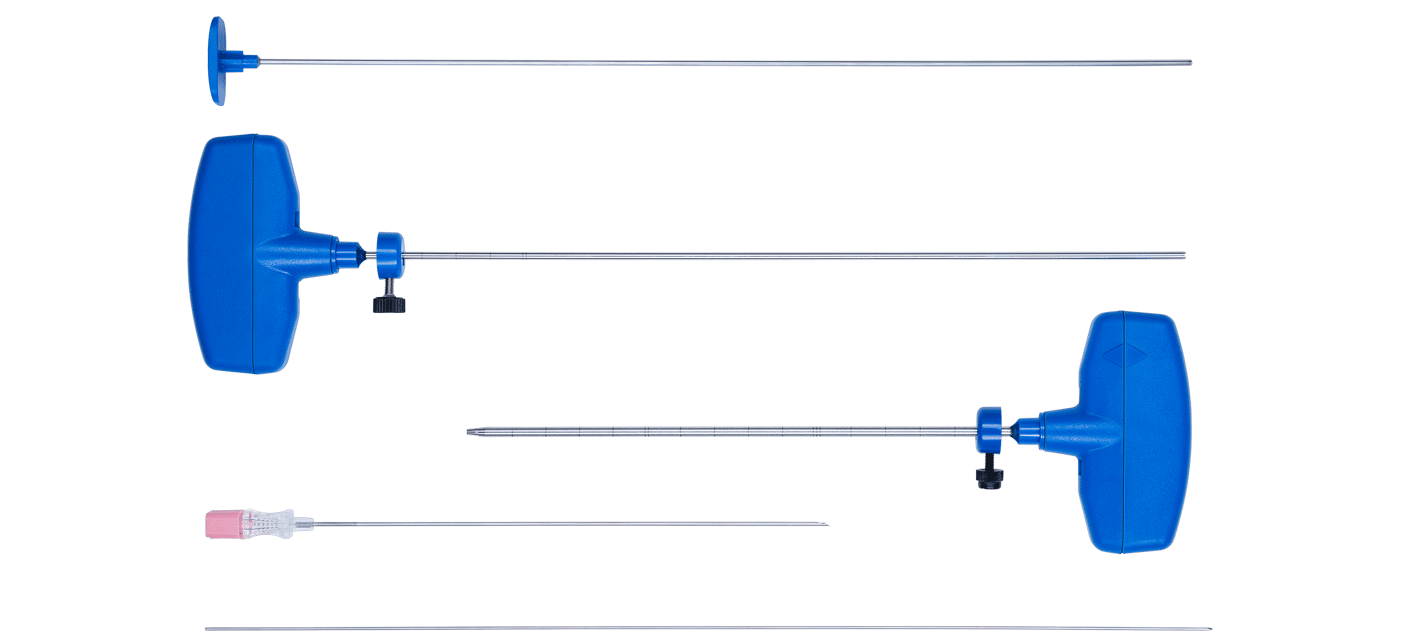

System Components

As with all the Merit Bone Biopsy Systems, the Kensington™ Bone Biopsy System contains the Preston™ Bone Biopsy Needle, designed for either incremental sampling for blastic lesions or with optional syringe aspiration.

  • Needle
  • Guide wire
  • Hollow stylet/tapered-tip cannula introducer
  • Clockwise trephine-tip biopsy needle
  • Ejector pin

The Kensington™ Guide Wire Bone Biopsy System is a minimally invasive, coaxial system designed for deep bone and sensitive procedures requiring a very precise approach.

Available in 11G in two lengths (10cm and 15cm), the Kensington™ System includes a smooth, tapered access needle that is placed directly over a 20G wire through the line of anesthesia. This method assists in creating a less traumatic pathway through soft tissues and adjacent structures and is designed to lessen exposure by minimizing repeat scanning. The Kensington™ System’s guided approach and blunt access facilitates biopsy of the upper spine.

Current Brochures

Introduction Method

Inspired by the Seldinger technique, the guide wire is positioned in the soft tissue via the needle. Gently dilating the soft tissue, the introducer is delivered over the guide wire to the bone surface. The bone is then accessed and sampled with the biopsy needle.

If crossing dense cortex is required, a Preston™ Hard Bone Introducer (supplied as a separate accessory) may be additionally used after placing introducer needle.

Box Quantity: 1

View Fullscreen

Catalog NumberExpanded Family NameSizeGaugeLengthSterilizationLatex FreeShipping Box Qty
KBC1110Guide Wire Bone Biopsy SystemSingle11G10 cmETOYes1
KBC1115Guide Wire Bone Biopsy SystemSingle11G15 cmETOYes1

* Gauge sizes may be closest approximate
** Length refers to the working needle only and does not include additional handle length
