Merit SureCross™ Support Catheters
Brochure/Documents
Learn More About Merit SureCross™ Support Catheters
Features & Benefits
Trackability, Pushability, Visibility
Crossing tight, difficult lesions is often challenging and time consuming. Having a support catheter that offers trackability, pushability and visibility gives you the confidence needed to cross occlusions, even in your most challenging case.
Product Features
Translucent Shaft for visualization of blood to verify placement in vessel lumen
3 Platinum Marker Bands to confirm catheter position and lesion sizing
- First marker band 2 mm from tip
- 0.014” and 0.018” second and third marker bands are 15 mm apart
- 0.035” second and third marker bands are 50 mm apart
40 cm Distal Hydrophilic Coating provides smooth tracking through tortuous anatomy
Low Profile Tapered Tip facilitates crossing difficult lesions
Maximum Infusion Pressure 300psi
Guide Wire Compatibility 0.014”, 0.018”, 0.035”
Multiple Lengths 65 cm, 90 cm, 135 cm, 150 cm
SureCross Shaft Technology
Engineered to optimize pushability and flexibility which maximizes guide wire support, trackability and lesion crossing.

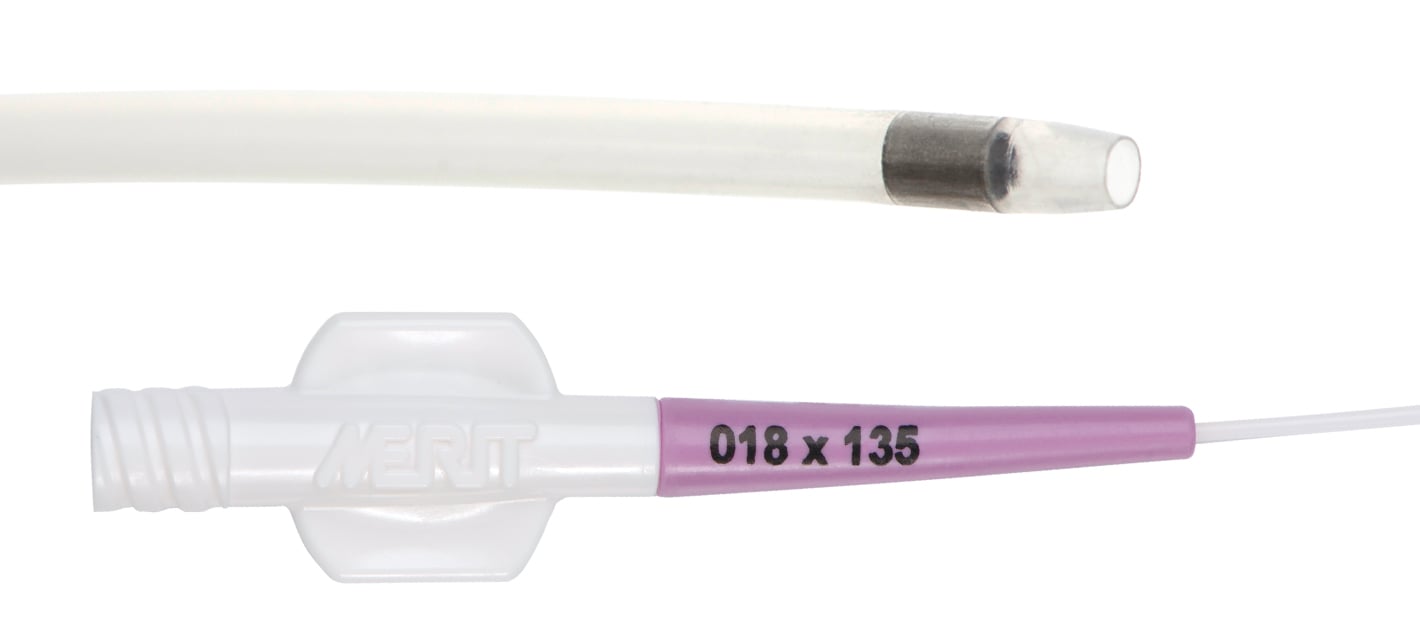

SureCross Tip Design
Short tip distance to marker band (2 mm) maximizes accuracy of tip location and enhances tip radiopacity
Internal platinum distal marker band provides a seamless transition zone
Marker band improves critical tip visualization
Robust tapered tip improves crossing and durability
Excellent transition from catheter tip to guide wire
Tip to Guide Wire Comparison
The low profile, seamless transition from catheter to guide wire provides exceptional crossing support.
Ordering Information
| Catalog Number | Trademark | Max. Guide Wire Diameter | Max. Guide Wire (mm) | Effective Length | Hydrophilic Coating Length | Marker Band Spacing | Tip Profile | Tip Profile (mm) | Tip Profile (F) | Min. Guiding Catheter | Max. Cath. OD | Max. Cath. OD (mm) | Min. Introducer Sheath | Bow Tie Option | Flow Rate Saline 150psi | Flow Rate Saline 300psi | Flow Rate Contrast 150psi | Flow Rate Contrast 300psi | Logo (File) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC14135 | SureCross | 0.014" | (0.36 mm) | 135 cm | 40 cm | 15 mm | 0.020" | (0.51 mm) | 1.5F | 5F | 0.039" | (0.99 mm) | 4F | Includes BowTie™ | 0.8 mL/sec | 1.1 mL/sec | 0.3 mL/sec | 0.4 mL/sec | Surecrosslogo |
| SC14150 | SureCross | 0.014" | (0.36 mm) | 150 cm | 40 cm | 15 mm | 0.020" | (0.51 mm) | 1.5F | 5F | 0.039" | (0.99 mm) | 4F | Includes BowTie™ | 0.6 mL/sec | 1.1 mL/sec | 0.2 mL/sec | 0.4 mL/sec | Surecrosslogo |
| SC1465 | SureCross | 0.014" | (0.36 mm) | 65 cm | 40 cm | 15 mm | 0.020" | (0.51 mm) | 1.5F | 5F | 0.039" | (0.99 mm) | 4F | Includes BowTie™ | 1.3 mL/sec | 1.5 mL/sec | 0.4 mL/sec | 1.0 mL/sec | Surecrosslogo |
| SC1490 | SureCross | 0.014" | (0.36 mm) | 90 cm | 40 cm | 15 mm | 0.020" | (0.51 mm) | 1.5F | 5F | 0.039" | (0.99 mm) | 4F | Includes BowTie™ | 0.9 mL/sec | 1.3 mL/sec | 0.4 mL/sec | 0.8 mL/sec | Surecrosslogo |
| SC18135 | SureCross | 0.018" | (0.46 mm) | 135 cm | 40 cm | 15 mm | 0.023" | (0.58 mm) | 1.7F | 5F | 0.044" | (1.12 mm) | 4F | Includes BowTie™ | 1.2 mL/ sec | 1.5 mL/sec | 0.5 mL/sec | 1.1 mL/sec | Surecrosslogo |
| SC18150 | SureCross | 0.018" | (0.46 mm) | 150 cm | 40 cm | 15 mm | 0.023" | (0.58 mm) | 1.7F | 5F | 0.044" | (1.12 mm) | 4F | Includes BowTie™ | 1.1 mL/ sec | 1.6 mL/sec | 0.6 mL/sec | 1.0 mL/sec | Surecrosslogo |
| SC1865 | SureCross | 0.018" | (0.46 mm) | 65 cm | 40 cm | 15 mm | 0.023" | (0.58 mm) | 1.7F | 5F | 0.044" | (1.12 mm) | 4F | Includes BowTie™ | 1.9 mL/sec | 2.6 mL/sec | 0.8 mL/sec | 1.6 mL/sec | Surecrosslogo |
| SC1890 | SureCross | 0.018" | (0.46 mm) | 90 cm | 40 cm | 15 mm | 0.023" | (0.58 mm) | 1.7F | 5F | 0.044" | (1.12 mm) | 4F | Includes BowTie™ | 1.6 mL/sec | 2.1 mL/sec | 0.7 mL/sec | 1.4 mL/sec | Surecrosslogo |
| SC35135 | SureCross | 0.035" | (0.89 mm) | 135 cm | 40 cm | 50 mm | 0.041" | (1.04 mm) | 3.1F | 6F | 0.062" | (1.57 mm) | 5F | 5.5 mL/sec | 8.0 mL/sec | 4.2 mL/sec | 6.1 mL/sec | Surecrosslogo | |
| SC35150 | SureCross | 0.035" | (0.89 mm) | 150 cm | 40 cm | 50 mm | 0.041" | (1.04 mm) | 3.1F | 6F | 0.062" | (1.57 mm) | 5F | 5.2 mL/sec | 7.7 mL/sec | 3.9 mL/sec | 5.9 mL/sec | Surecrosslogo | |
| SC3565 | SureCross | 0.035" | (0.89 mm) | 65 cm | 40 cm | 50 mm | 0.041" | (1.04 mm) | 3.1F | 6F | 0.062" | (1.57 mm) | 5F | 7.9 mL/sec | 11.0 mL/sec | 6.2 mL/sec | 8.6 mL/sec | Surecrosslogo | |
| SC3590 | SureCross | 0.035" | (0.89 mm) | 90 cm | 40 cm | 50 mm | 0.041" | (1.04 mm) | 3.1F | 6F | 0.062" | (1.57 mm) | 5F | 6.6 mL/sec | 9.8 mL/sec | 5.0 mL/sec | 6.8 mL/sec | Surecrosslogo |
