Features & Benefits

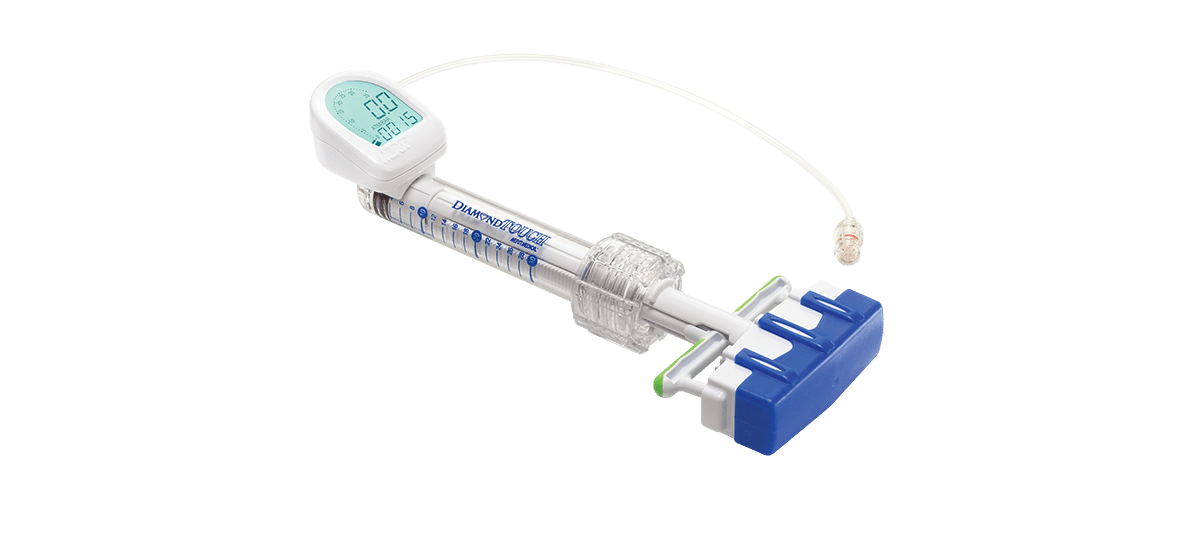

The DiamondTOUCH™ Digital Inflation Device combines the visibility and accuracy of a digital device with the convenience of an ergonomic one-handed prep handle.

Features

Digital Gauge

  • One button functionality for simplicity and ease of use
  • Large dial face with oversized time and pressure digits to enhance visibility
  • Last inflation mark recalls the highest pressure of the previous inflation
  • High resolution from multiple angles

Speed and Performance

  • Rapid Inflation – Pressures can be reached rapidly – up to 35 atm with as few 3 rotations of the handle. *
  • Quick release ergonomic handle – Releases easily, even from high-pressure inflations.
  • One-handed preparation – Preparation made easy with unique one-handed air removal. Simply press the handle against a solid surface.

Versatile

  • 30 mL syringe barrel accommodates additional fluid for larger balloons
  • 35 atm pressure capacity allows inflation of high pressure interventional balloons

Robust and Reliable

  • Strong components provide expanded capability with the security and confidence in performance that comes from using Merit products.
Documents
Ordering Information
Part NumberDescription
IN9135DiamondTOUCH
IN9152DiamondTOUCH with MAP152 – Access Plus hemostasis valve with metal wire introducer and torque device
IN9302DiamondTOUCH with MAP302 – Honor hemostasis valve with metal wire introducer and torque device
IN9352DiamondTOUCH with MAP352 – Honor hemostasis valve with bonded 20cm tubing, metal wire introducer and torque device
IN9403DiamondTOUCH with MAP403 – MBA hemostasis valve with metal wire introducer and torque device
