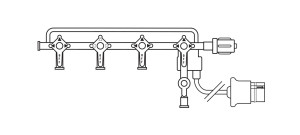

TRAM-P™ Manifold with Integral Transducer
Request Information
ALLOW PRESSURE READINGS AT ANY LEVEL.
The TRAM-P features an integrated transducer on the port closest to the rotating adapter with a pressure monitoring line off the compensation port to allow pressure readings at any level.
Features & Benefits
By positioning the compensation line on an IV pole rather than on a table, the TRAM-P manifold maintains a constant calibrated reading. With this configuration, the TRAM-P manifold can be moved to any position without affecting the accuracy of the pressure reading.
Custom Designed Kits
Enjoy the convenience of custom designing your own kit with our feature-rich products to support your unique clinical requirements.
Save Time & Money
Merit Medical offers an array of high-value fluid management products and angiography accessories to help you save time and money and to keep pace with your procedural volumes.
Convenient Location
Merit’s new TRAM manifold with an integrated transducer conveniently located on the first port gives a single operator the ability to de-bubble, zero and re-zero within the sterile field.
Increase Comfort
Increase comfort and reduce hand fatigue with our low-torque, easy-to-turn wide-spaced handles with wide spaced finger grips.
Documents
Discover more about the TRAM-P™ Manifold with Integral Transducer by reviewing the brochures and Instructions for Use.
Current IFUs
Current Brochures
Order Information
View All Details
| Catalog Number | Product Family | Trademark | Expanded Family Name1 | Expanded Family Name2 | Ports | Pressure Rating (psi/bar) | Compensated | Port Spacing | Handle Type | Sterilization | Latex Free | Shipping Box Qty | GS1 | GTIN Unit | GTIN Carton | GTIN Shipper |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 201LTCHF-R | Manifold | TRAM®P | Wide Manifold with Integral | Pressure Transducer | 1 Port | 200 psi (14 bar) | Compensated | Standard | Low Torque OFF Handle | ETO | Yes | 10 | ||||
| 203LTCHF-R | Manifold | TRAM®P | Wide Manifold with Integral | Pressure Transducer | 3 Port | 200 psi (14 bar) | Compensated | Standard | Low Torque OFF Handle | ETO | Yes | 10 | ||||
| 203LTCHWF-R | Manifold | TRAM®P | Wide Manifold with Integral | Pressure Transducer | 3 Port | 200 psi (14 bar) | Compensated | Wide | Low Torque OFF Handle | ETO | Yes | 10 | ||||
| 203LTCHWN-R | Manifold | TRAM®P | Wide Manifold with Integral | Pressure Transducer | 3 Port | 200 psi (14 bar) | Compensated | Wide | Low Torque ON Handle | ETO | Yes | 10 | ||||
| 2V4LTCHWF-R | Manifold | TRAM®P | Wide Manifold with Devos | Pressure Transducer and Devos Valve | 4 Port | 200 psi (14 bar) | Compensated | Wide | Low Torque OFF Handle | ETO | Yes | 10 | ||||
| 503LTCHWF-R | Manifold | TRAM®P | Wide Manifold with Integral | Pressure Transducer | 3 Port | 500 psi (34 bar) | Compensated | Wide | Low Torque OFF Handle | ETO | Yes | 10 | ||||
| 503LTCHWN-R | Manifold | TRAM®P | Wide Manifold with Integral | Pressure Transducer | 3 Port | 500 psi (34 bar) | Compensated | Wide | Low Torque ON Handle | ETO | Yes | 10 |
Related products

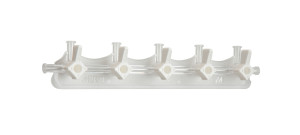

Merit® Manifolds
