Features & Benefits

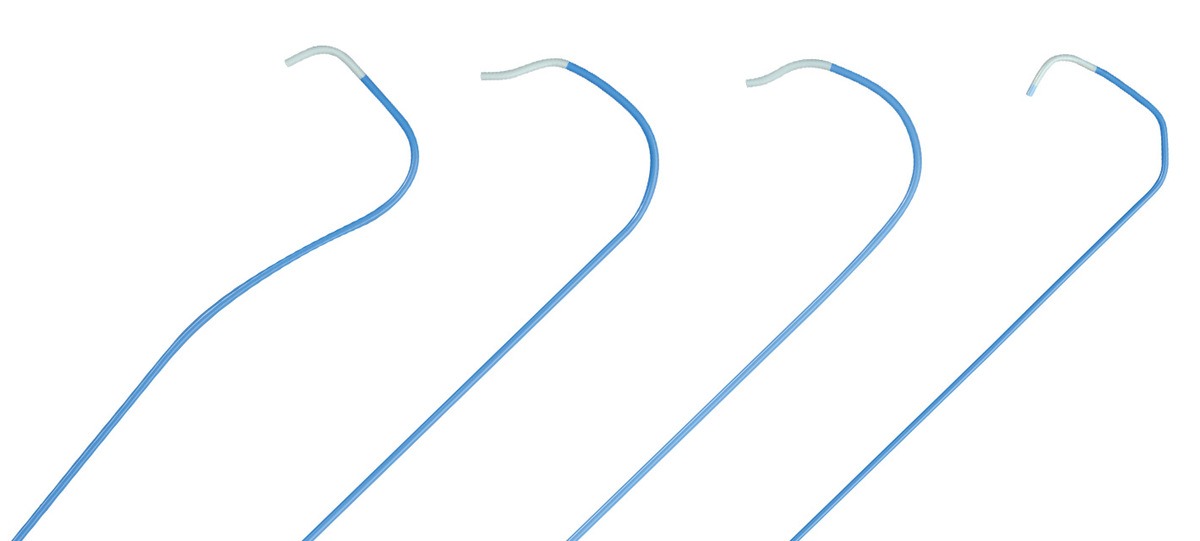

Merit Medical’s Performa® diagnostic cardiology catheter is designed with improved shaft strength for better pushability and torque. Nylon Pebax® material gives the Performa improved kink resistance. Its flat-wire braid design offers greater stability and increased torque. A large inner lumen enables increased flow rates. The Performa’s winged polycarbonate hub offers enhanced handling and control. The radiopaque tip allows shaft visualization under fluoroscopy and ensures accurate placement. Pebax® is a registered trademark of Arkema, Inc.

Nylon Material

  • Kink resistant
  • Optimal surface smoothness
  • Thermal stability at body temperature
  • Thin wall design for improved flow rate

Radiopacity

  • Good shaft visualization under fluoroscopy
  • Tip opacity ensures accurate placement and visualization

Winged Polycarbonate Hub

  • Enhanced handling and control

Wire Braid Design

  • Greater torque for maximum control
  • Improved longitudinal stability
  • High degree of maneuverability
  • Provides superior pushability

Tip Designs

  • Excellent tip memory
  • Re-forms accurately time after time

Bumper Tip

  • Added softness to the 4F Performa catheter line for patient safety

Flat Wire Braid

  • Increased Torque
  • Greater stability
  • Excellent kink resistance

4F Performa Catheter line

Inner Lumen Sizes

  • 4F 0.042″ (1.07 mm)
  • 5F 0.046″ (1.17 mm)
  • 5F 0.052″ (1.32 mm) high flow
  • 6F 0.054″ (1.37 mm)
  • 6F 0.059″ (1.49 mm) high flow
  • Superior guide wire trackability

Strain Relief

  • Increased strength at catheter/hub interface
  • Color coded for easy identification
Documents
Ordering Information

View Fullscreen

Catalog NumberLabel Long DescriptionFrench Size (F)LengthInternal Diameter# Side PortsRecommended Guide WireTip LengthFlow 1 (m L/sec)Flow 2 (psi)Flow 3 (kg/cm²)Angle LengthBumper TipHCPCS CodeGS1GTIN UnitGTIN CartonGTIN Shipper
4100381ULT1ULTIMATE 14F100 cm0.042" (1.07 mm)1 Side Port0.038" (0.97 mm)2.0 cm17 (mL/sec)1175 (psi)83 (kg/cm²)Bumper TipNo Applicable Code09529008844500952941088445009529120884450095298
4100381ULT2ULTIMATE 24F100 cm0.042" (1.07 mm)1 Side Port0.038" (0.97 mm)2.0 cm17 (mL/sec)1175 (psi)83 (kg/cm²)Bumper TipNo Applicable Code11919008844501191981088445011919520884450119192
4100381ULT4-T40ULTIMATE 4-T404F100 cm0.042" (1.07 mm)1 Side Port0.038" (0.97 mm)2.0 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code12357008844501235771088445012357420884450123571
4100381ULT4-T45ULTIMATE 4-T454F100 cm0.042" (1.07 mm)1 Side Port0.038" (0.97 mm)2.0 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code12358008844501235841088445012358120884450123588
4100382ULT3ULTIMATE 34F100 cm0.042" (1.07 mm)2 Side Ports0.038" (0.97 mm)2.0 cm17 mL/sec1175 psi83 kg/cm³Bumper Tip12303008844501230341088445012303120884450123038
410038ULT1ULTIMATE 14F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code12305008844501230581088445012305520884450123052
410038ULT2ULTIMATE 24F100 cm0.040" (1.02 mm)0 Side Ports0.038" (0.97 mm)17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code12306008844501230651088445012306220884450123069
410038ULT3ULTIMATE 34F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code12307008844501230721088445012307920884450123076
410038ULT4-T40ULTIMATE 4-T404F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code12355008844501235531088445012355020884450123557
410038ULT4-T45ULTIMATE 4-T454F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code12356008844501235601088445012356720884450123564
4RPL110MIV RAD PIG LT4F110 cm0.042" (1.07 mm)6 Side Ports0.038" (0.97 mm)8.0 cm15 (mL/sec)1163 (psi)82 (kg/cm²)No Applicable Code16191008844501619131088445016191020884450161917
4RPL110-NBMIV RAD PIG LT4F110 cm0.041" (1.04 mm)6 Side Ports0.038" (0.97 mm)8.0 cm16 (mL/sec)1132 (psi)80 (kg/cm²)No Applicable Code16208008844501620881088445016208520884450162082
4RPL125MIV RAD PIG LT4F125 cm0.042" (1.07 mm)6 Side Ports0.038" (0.97 mm)8.0 cm12 mL/sec1159 psi81 (kg/cm²)No Applicable Code16193008844501619371088445016193420884450161931
4RPL125-NBMIV RAD PIG LT4F125 cm0.041" (1.04 mm)6 Side Ports0.038" (0.97 mm)8.0 cm11 mL/sec1159 psi81(kg/cm²)No Applicable Code16238008844501623851088445016238220884450162389
4RPS110MIV RAD PIG ST4F110 cm0.042" (1.07 mm)6 Side Ports0.038" (0.97 mm)6.0 cm15 (mL/sec)1163 (psi)82 (kg/cm²)No Applicable Code16118008844501611801088445016118720884450161184
4RPS110-NBMIV RAD PIG ST4F110 cm0.041" (1.04 mm)6 Side Ports0.038" (0.97 mm)6.0 cm16 (mL/sec)1132 (psi)80 (kg/cm²)No Applicable Code16115008844501611591088445016115620884450161153
4RPS125MIV RAD PIG ST4F125 cm0.042" (1.07 mm)6 Side Ports0.038" (0.97 mm)6.0 cm12 mL/sec1159 psi81(kg/cm²)No Applicable Code16120008844501612031088445016120020884450161207
4RPS125-NBMIV RAD PIG ST4F125 cm0.041" (1.04 mm)6 Side Ports0.038" (0.97 mm)6.0 cm11 (mL/sec)1159 (psi)81 (kg/cm²)No Applicable Code16116008844501611661088445016116320884450161160
5100381ULT1ULTIMATE 15F100 cm0.046" (1.17mm)1 Side Port0.038" (0.97 mm)2.0 cm15 mL/sec940 psi66 kg/cm²Bumper TipNo Applicable Code03580008844500358011088445003580820884450035805
5100381ULT2ULTIMATE 25F100 cm0.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm15 mL/sec940 psi66 kg/cm²Bumper TipNo Applicable Code04325008844500432571088445004325420884450043251
5100381ULT4-T40ULTIMATE 4-T405F100 cm0.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm15 mL/sec940 psi66 kg/cm²Bumper TipNo Applicable Code12354008844501235461088445012354320884450123540
5100381ULT4-T45ULTIMATE 4-T455F100 cm0.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm15 mL/sec940 (psi)66 kg/cm²Bumper TipNo Applicable Code12353008844501235391088445012353620884450123533
5100382ULT35F100 cm0.046" (1.17 mm)2 Side Ports0.038" (0.97 mm)15 mL/sec940 psi66 kg/cm²Bumper Tip12304008844501230411088445012304820884450123045
510038ULT1ULTIMATE 15F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm15 mL/sec940 psi66 kg/cm²Bumper TipNo Applicable Code03585008844500358561088445003585320884450035850
510038ULT2ULTIMATE 25F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm15 mL/sec940 psi66 kg/cm²Bumper TipNo Applicable Code04335008844500433561088445004335320884450043350
510038ULT35F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)15 mL/sec940 psi66 kg/cm²Bumper Tip12308008844501230891088445012308620884450123083
510038ULT4-T40ULTIMATE 4-T405F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm15 mL/sec940 psi66 kg/cm²Bumper TipNo Applicable Code12351008844501235151088445012351220884450123519
510038ULT4-T45ULTIMATE 4-T455F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm15 mL/sec940 (psi)66 kg/cm²Bumper TipNo Applicable Code12352008844501235221088445012352920884450123526
5110381ULT1ULTIMATE 15F110 cm0.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm18 (mL/sec)1150 (psi)81 (kg/cm²)Bumper TipNo Applicable Code16509008844501650961088445016509320884450165090
5110381ULT2ULTIMATE 25F110 cm0.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm18 (mL/sec)1150 (psi)81 (kg/cm²)Bumper TipNo Applicable Code16510008844501651021088445016510920884450165106
5110381ULT4-T40ULTIMATE 4-T405F110 cm0.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm18 (mL/sec)1150 (psi)81 (kg/cm²)Bumper TipNo Applicable Code16511008844501651191088445016511620884450165113
5110381ULT4-T45ULTIMATE 4-T455F110 cm0.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm18 (mL/sec)1150 (psi)81 (kg/cm²)Bumper Tip16512008844501651261088445016512320884450165120
5110382ULT3ULTIMATE 35F110 cm0.046" (1.17 mm)2 Side Ports0.038" (0.97 mm)2.0 cm18 mL/sec1150 psi81 kg/cm²Bumper Tip16498008844501649831088445016498020884450164987
57538CSCORONARY SINUS5F75 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)4.3 cm20 mL/sec953 psi66 kg/cm²No Applicable Code12294008844501229451088445012294220884450122949
5IMP100381ULT1ULTIMATE 15F100 cm0.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm15 mL/sec814 psi57 kg/cm²No Applicable Code12309008844501230961088445012309320884450123090
5IMP10038ULT1ULTIMATE 15F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)15 mL/sec814 psi57 kg/cm²No Applicable Code12310008844501231021088445012310920884450123106
5RPL110MIV RAD PIG LT5F110 cm0.046" (1.17 mm)6 Side Ports0.038" (0.97 mm)8.0 cm18 (mL/sec)1150 (psi)81 (kg/cm²)No Applicable Code16192008844501619201088445016192720884450161924
5RPL110-NBMIV RAD PIG LT5F110 cm0.052" (1.32 mm)6 Side Ports0.038" (0.97 mm)8.0 cm28 (mL/sec)1132 (psi)80 (kg/cm²)No Applicable Code16207008844501620711088445016207820884450162075
5RPL125MIV RAD PIG LT5F125 cm0.046" (1.17 mm)6 Side Ports0.038" (0.97 mm)8.0 cm18 (mL/sec)1170 (psi)82 (kg/cm²)No Applicable Code16201008844501620191088445016201620884450162013
5RPL125-NBMIV RAD PIG LT5F125 cm0.052" (1.32 mm)6 Side Ports0.038" (0.97 mm)8.0 cm23 mL/sec1156 psi81 (kg/cm²)No Applicable Code16209008844501620951088445016209220884450162099
5RPS110MIV RAD PIG ST5F110 cm0.046" (1.17 mm)6 Side Ports0.038" (0.97 mm)6.0 cm18 (mL/sec)1150 (psi)81 (kg/cm²)No Applicable Code16104008844501610431088445016104020884450161047
5RPS110-NBMIV RAD PIG ST5F110 cm0.052" (1.32 mm)6 Side Ports0.038" (0.97 mm)6.0 cm28 (mL/sec)1132 (psi)80 (kg/cm²)No Applicable Code16105008844501610501088445016105720884450161054
5RPS125MIV RAD PIG ST5F125 cm0.046" (1.17 mm)6 Side Ports0.038" (0.97 mm)6.0 cm18 (mL/sec)1170 (psi)82 (kg/cm²)No Applicable Code16103008844501610361088445016103320884450161030
5RPS125-NBMIV RAD PIG ST5F125 cm0.052" (1.32 mm)6 Side Ports0.038" (0.97 mm)6.0 cm23 mL/sec1156 psi81 (kg/cm²)No Applicable Code16106008844501610671088445016106420884450161061
6100381ULT1ULTIMATE 16F100 cm0.054" (1.37 mm)1 Side Port0.038" (0.97 mm)2.0 cm27 mL/sec1170 psi82 kg/cm²03552008844500355281088445003552520884450035522
6100381ULT2ULTIMATE 26F100 cm0.054" (1.37 mm)1 Side Port0.038" (0.97 mm)2.0 cm27 mL/sec1170 psi82 kg/cm²04395008844500439501088445004395720884450043954
6100381ULT4-T40ULTIMATE 4-T406F100 cm0.054" (1.37 mm)1 Side Port0.038" (0.97 mm)2.0 cm27 mL/sec1170 psi82 kg/cm²No Applicable Code12360008844501236071088445012360420884450123601
6100381ULT4-T45ULTIMATE 4-T456F100 cm0.054" (1.37 mm)1 Side Port0.038" (0.97 mm)2.0 cm27 mL/sec1170 psi82 kg/cm²No Applicable Code12362008844501236211088445012362820884450123625
6100382ULT3ULTIMATE 36F100 cm0.054" (1.37 mm)2 Side Ports0.038" (0.97 mm)2.0 cm27 mL/sec1170 psi82 kg/cm²12311008844501231191088445012311620884450123113
610038ULT1ULTIMATE 16F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.0 cm27 mL/sec1170 psi82 kg/cm²03553008844500355351088445003553220884450035539
610038ULT2ULTIMATE 26F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.0 cm27 mL/sec1170 psi82 kg/cm²04396008844500439671088445004396420884450043961
610038ULT3ULTIMATE 36F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.0 cm27 mL/sec1170 psi82 kg/cm²12312008844501231261088445012312320884450123120
610038ULT4-T40ULTIMATE 4-T406F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.0 cm27 mL/sec1170 psi82 kg/cm²No Applicable Code12359008844501235911088445012359820884450123595
610038ULT4-T45ULTIMATE 4-T456F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.0 cm27 mL/sec1170 psi82 kg/cm²No Applicable Code12361008844501236141088445012361120884450123618
6110381ULT1ULTIMATE 16F110 cm0.054" (1.37 mm)1 Side Port0.038" (0.97 mm)2.0 cm30 (mL/sec)1120 (psi)79 (kg/cm²)16514008844501651401088445016514720884450165144
6110381ULT2ULTIMATE 26F110 cm0.054" (1.37 mm)1 Side Port0.038" (0.97 mm)2.0 cm30 (mL/sec)1120 (psi)79 (kg/cm²)16515008844501651571088445016515420884450165151
6110381ULT4-T40ULTIMATE 4-T406F110 cm0.054" (1.37 mm)1 Side Port0.038" (0.97 mm)2.0 cm30 (mL/sec)1120 (psi)79 (kg/cm²)16516008844501651641088445016516120884450165168
6110381ULT4-T45ULTIMATE 4-T456F110 cm0.054" (1.37 mm)1 Side Port0.038" (0.97 mm)2.0 cm30 (mL/sec)1120 (psi)79 (kg/cm²)16517008844501651711088445016517820884450165175
6110382ULT3ULTIMATE 36F110 cm0.054" (1.37 mm)2 Side Ports0.038" (0.97 mm)2.0 cm30 (mL/sec)1120 (psi)79 (kg/cm²)16513008844501651331088445016513020884450165137
6RPL110MIV RAD PIG LT6F110 cm0.054" (1.37 mm)6 Side Ports0.038" (0.97 mm)8.0 cm30 (mL/sec)1120 (psi)79 (kg/cm²)No Applicable Code16113008844501611351088445016113220884450161139
6RPL110-NBMIV RAD PIG LT6F110 cm0.059" (1.49 mm)6 Side Ports0.038" (0.97 mm)8.0 cm37 (mL/sec)1193 (psi)84 (kg/cm²)No Applicable Code16107008844501610741088445016107120884450161078
6RPL125MIV RAD PIG LT6F125 cm0.054" (1.37 mm)6 Side Ports0.038" (0.97 mm)8.0 cm24 (mL/sec)1135 (psi)80 (kg/cm²)No Applicable Code16114008844501611421088445016114920884450161146
6RPL125-NBMIV RAD PIG LT6F125 cm0.059" (1.49 mm)6 Side Ports0.038" (0.97 mm)8.0 cm35 (mL/sec)1124 (psi)79 (kg/cm²)No Applicable Code16110008844501611041088445016110120884450161108
6RPS110MIV RAD PIG ST6F110 cm0.054" (1.37 mm)6 Side Ports0.038" (0.97 mm)6.0 cm30 (mL/sec)1120 (psi)79 (kg/cm²)No Applicable Code16121008844501612101088445016121720884450161214
6RPS110-NBMIV RAD PIG ST6F110 cm0.059" (1.49 mm)6 Side Ports0.038" (0.97 mm)6.0 cm37 (mL/sec)1193 (psi)84 (kg/cm²)No Applicable Code16111008844501611111088445016111820884450161115
6RPS125MIV RAD PIG ST6F125 cm0.054" (1.37 mm)6 Side Ports0.038" (0.97 mm)6.0 cm24 (mL/sec)1135 (psi)80 (kg/cm²)No Applicable Code16183008844501618381088445016183520884450161832
6RPS125-NBMIV RAD PIG ST6F125 cm0.059" (1.49 mm)6 Side Ports0.038" (0.97 mm)6.0 cm35 (mL/sec)1124 (psi)79 (kg/cm²)No Applicable Code16112008844501611281088445016112520884450161122
7241-10RBR BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)3.4 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00124008844500012401088445000124720884450001244
7501-13JUDKINS LEFT 3.5 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00328008844500032821088445000328920884450003286
7501-21JUDKINS LEFT 4.0 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²01098008844500109831088445001098020884450010987
7501-33JUDKINS LEFT 5.0 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00325008844500032511088445000325820884450003255
7501-43JUDKINS LEFT 6.0 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²01018008844500101811088445001018820884450010185
7501-53JUDKINS LEFT 3.5 cm6F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm24 mL/sec1135 psi80 kg/cm²01019008844500101981088445001019520884450010192
7501-63JUDKINS LEFT 4.0 cm6F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm24 mL/sec1135 psi80 kg/cm²00330008844500033051088445000330220884450003309
7501-73JUDKINS LEFT 5.0 cm6F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm24 mL/sec1135 psi80 kg/cm²00311008844500031141088445000311120884450003118
7501-83JUDKINS LEFT 6.0 cm6F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm24 mL/sec1135 psi80 kg/cm²00331008844500033121088445000331920884450003316
7501-A3JUDKINS LEFT 3.5 cm SHORT TIP6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00364008844500036401088445000364720884450003644
7501-B1JUDKINS LEFT 4.0 cm SHORT TIP6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²01170008844500117061088445001170320884450011700
7501-C3JUDKINS LEFT 5.0 cm SHORT TIP6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00365008844500036571088445000365420884450003651
7501-D3JUDKINS LEFT 6.0 cm SHORT TIP6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00366008844500036641088445000366120884450003668
7501-H1JUDKINS LEFT 4.5 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00404008844500040431088445000404020884450004047
7502-13MODIFIED JUDKINS RIGHT 3.5 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00517008844500051701088445000517720884450005174
7502-21MODIFIED JUDKINS RIGHT 4.0 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²11106008844501110621088445011106920884450111066
7502-23MODIFIED JUDKINS RIGHT 4.0 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00518008844500051871088445000518420884450005181
7502-33MODIFIED JUDKINS RIGHT 5.0 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00519008844500051941088445000519120884450005198
7502-43MODIFIED JUDKINS RIGHT 6.0 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00520008844500052001088445000520720884450005204
7503-13JUDKINS RIGHT 3.5 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00341008844500034111088445000341820884450003415
7503-21JUDKINS RIGHT 4.0 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00312008844500031211088445000312820884450003125
7503-33JUDKINS RIGHT 5.0 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00342008844500034281088445000342520884450003422
7503-43JUDKINS RIGHT 6.0 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²01022008844500102281088445001022520884450010222
7503-53JUDKINS RIGHT 3.5 cm6F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm24 mL/sec1135 psi80 kg/cm²00405008844500040501088445000405720884450004054
7503-63JUDKINS RIGHT 4.0 cm6F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm24 mL/sec1135 psi80 kg/cm²00406008844500040671088445000406420884450004061
7503-73JUDKINS RIGHT 5.0 cm6F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm24 mL/sec1135 psi80 kg/cm²01015008844500101501088445001015720884450010154
7503-83JUDKINS RIGHT 6.0 cm6F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm24 mL/sec1135 psi80 kg/cm²00407008844500040741088445000407120884450004078
7503-93JUDKINS RIGHT 4.5 cm6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 (mL/sec)1170 (psi)82 (kg/cm²)10276008844501027631088445010276020884450102767
7503-A3JUDKINS RIGHT 3.5 cm SHORT TIP6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00408008844500040811088445000408820884450004085
7503-B1JUDKINS RIGHT 4.0 cm SHORT TIP6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00409008844500040981088445000409520884450004092
7503-C3JUDKINS RIGHT 5.0 cm SHORT TIP6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00410008844500041041088445000410120884450004108
7503-D3JUDKINS RIGHT 6.0 cm SHORT TIP6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)1.9 cm27 mL/sec1170 psi82 kg/cm²00411008844500041111088445000411820884450004115
7506-11AMPLATZ RIGHT MODIFIED6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)3.3 cm27 mL/sec1170 psi82 kg/cm²00431008844500043191088445000431620884450004313
7507-13AMPLATZ LEFT 16F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)5.0 cm27 mL/sec1170 psi82 kg/cm²00344008844500034421088445000344920884450003446
7507-23AMPLATZ LEFT 26F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)5.0 cm27 mL/sec1170 psi82 kg/cm²00345008844500034591088445000345620884450003453
7507-33AMPLATZ LEFT 36F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.4 cm27 mL/sec1170 psi82 kg/cm²01023008844500102351088445001023220884450010239
7507-43AMPLATZ LEFT 46F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.5 cm27 mL/sec1170 psi82 kg/cm²02420008844500242011088445002420820884450024205
7508-13AMPLATZ RIGHT 16F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)3.0 cm27 mL/sec1170 psi82 kg/cm²00434008844500043401088445000434720884450004344
7508-23AMPLATZ RIGHT 26F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)3.5 cm27 mL/sec1170 psi82 kg/cm²00348008844500034801088445000348720884450003484
7508-33AMPLATZ RIGHT 36F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)4.0 cm27 mL/sec1170 psi82 kg/cm²00435008844500043571088445000435420884450004351
7509-11CARDIAC PIGTAIL6F110 cm0.054" (1.37 mm)5 Side Ports0.038" (0.97 mm)7.5 cm30 mL/sec1120 psi79 kg/cm²00129008844500012951088445000129220884450001299
7509-23CARDIAC PIGTAIL 145 DEGREE6F110 cm0.054" (1.37 mm)5 Side Ports0.038" (0.97 mm)7.5 cm30 mL/sec1120 psi79 kg/cm²5.5 cm00338008844500033811088445000338820884450003385
7509-33CARDIAC PIGTAIL 155 DEGREE6F110 cm0.054" (1.37 mm)5 Side Ports0.038" (0.97 mm)7.5 cm30 mL/sec1120 psi79 kg/cm²5.5 cm00545008844500054531088445000545020884450005457
7509-43CARDIAC PIGTAIL6F125 cm0.054" (1.37 mm)5 Side Ports0.038" (0.97 mm)7.5 cm24 mL/sec1135 psi80 kg/cm²00436008844500043641088445000436120884450004368
7509-53CARDIAC PIGTAIL 145 DEGREE6F125 cm0.054" (1.37 mm)5 Side Ports0.038" (0.97 mm)7.5 cm24 mL/sec1135 psi80 kg/cm²5.5 cm00313008844500031381088445000313520884450003132
7509-63CARDIAC PIGTAIL 155 DEGREE6F125 cm0.054" (1.37 mm)5 Side Ports0.038" (0.97 mm)7.5 cm24 mL/sec1135 psi80 kg/cm²5.5 cm00546008844500054601088445000546720884450005464
7510-13LEFT CORONARY BYPASS6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.5 cm27 mL/sec1170 psi82 kg/cm²01024008844500102421088445001024920884450010246
7510-23RIGHT CORONARY BYPASS6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.5 cm27 mL/sec1170 psi82 kg/cm²00340008844500034041088445000340120884450003408
7511-13INTERNAL MAMMARY6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)3.3 cm27 mL/sec1170 psi82 kg/cm²00132008844500013251088445000132220884450001329
7512-13PROGRESSIVE RIGHT CORONARY6F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.5 cm27 mL/sec1170 psi82 kg/cm²00536008844500053611088445000536820884450005365
7512-23PROGRESSIVE RIGHT CORONARY6F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.5 cm24 mL/sec1135 psi80 kg/cm²00537008844500053781088445000537520884450005372
7513-13MULTIPURPOSE A26F80 cm0.054" (1.37 mm)2 Side Ports0.038" (0.97 mm)5.8 cm30 mL/sec1200 psi84 kg/cm²08024008844500802451088445008024220884450080249
7513-23MULTIPURPOSE A26F100 cm0.054" (1.37 mm)2 Side Ports0.038" (0.97 mm)5.8 cm27 mL/sec1170 psi82 kg/cm²00437008844500043711088445000437820884450004375
7513-33MULTIPURPOSE B26F80 cm0.054" (1.37 mm)2 Side Ports0.038" (0.97 mm)5.8 cm30 mL/sec1200 psi84 kg/cm²00438008844500043881088445000438520884450004382
7513-43MULTIPURPOSE B26F100 cm0.054" (1.37 mm)2 Side Ports0.038" (0.97 mm)5.8 cm27 mL/sec1170 psi82 kg/cm²01026008844500102661088445001026320884450010260
7513-53MULTIPURPOSE A26F125 cm0.054" (1.37 mm)2 Side Ports0.038" (0.97 mm)5.8 cm24 mL/sec1135 psi80 kg/cm²00368008844500036881088445000368520884450003682
7513-63MULTIPURPOSE B26F125 cm0.054" (1.37 mm)2 Side Ports0.038" (0.97 mm)5.8 cm24 mL/sec1135 psi80 kg/cm²00439008844500043951088445000439220884450004399
7513-A3MULTIPURPOSE A16F80 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)5.8 cm30 mL/sec1200 psi84 kg/cm²00316008844500031691088445000316620884450003163
7513-B3MULTIPURPOSE A16F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)5.8 cm27 mL/sec1170 psi82 kg/cm²00306008844500030601088445000306720884450003064
7513-C3MULTIPURPOSE A16F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)5.8 cm24 mL/sec1135 psi80 kg/cm²00440008844500044011088445000440820884450004405
7513-D3MULTIPURPOSE B16F80 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)5.8 cm30 mL/sec1200 psi84 kg/cm²00541008844500054151088445000541220884450005419
7513-E3MULTIPURPOSE B16F100 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)5.8 cm27 mL/sec1170 psi82 kg/cm²00441008844500044181088445000441520884450004412
7513-F3MULTIPURPOSE B16F125 cm0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)5.8 cm24 mL/sec1135 psi80 kg/cm²00442008844500044251088445000442220884450004429
7520-23SONES TYPE6F100 cm0.054" (1.37 mm)4 Side Ports0.038" (0.97 mm)7.3 cm27 (mL/sec)1170 (psi)82 (kg/cm²)11775008844501177501088445011775720884450117754
7521-13JUDKINS LEFT 3.5 cm5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00094008844500009461088445000094320884450000940
7521-21JUDKINS LEFT 4.0 cm5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00101008844500010111088445000101820884450001015
7521-33JUDKINS LEFT 5.0 cm5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00130008844500013011088445000130820884450001305
7521-43JUDKINS LEFT 6.0 cm5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00428008844500042891088445000428620884450004283
7521-53JUDKINS LEFT 3.5 cm5F125 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm14 mL/sec1030 psi72 kg/cm²00126008844500012641088445000126120884450001268
7521-63JUDKINS LEFT 4.0 cm5F125 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm14 mL/sec1030 psi72 kg/cm²00127008844500012711088445000127820884450001275
7521-73JUDKINS LEFT 5.0 cm5F125 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm14 mL/sec1030 psi72 kg/cm²01017008844500101741088445001017120884450010178
7521-83JUDKINS LEFT 6.0 cm5F125 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm14 mL/sec1030 psi72 kg/cm²00323008844500032371088445000323420884450003231
7521-F1JUDKINS LEFT 4.5 cm5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00319008844500031901088445000319720884450003194
7521-L3JUDKINS LEFT 1.5 cm BUMPER TIP5F70 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm20 mL/sec982 psi69 kg/cm²Bumper TipNo Applicable Code00356008844500035651088445000356220884450003569
7521-M3JUDKINS LEFT 2.0 cm BUMPER TIP5F70 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm20 mL/sec982 psi69 kg/cm²Bumper TipNo Applicable Code00357008844500035721088445000357920884450003576
7521-N3JUDKINS LEFT 2.5 cm BUMPER TIP5F70 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm20 mL/sec982 psi69 kg/cm²Bumper TipNo Applicable Code00358008844500035891088445000358620884450003583
7521-P3JUDKINS LEFT 3.0 cm BUMPER TIP5F70 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm20 mL/sec982 psi69 kg/cm²Bumper TipNo Applicable Code00359008844500035961088445000359320884450003590
7523-13JUDKINS RIGHT 3.5 cm5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00426008844500042651088445000426220884450004269
7523-21JUDKINS RIGHT 4.0 cm5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00100008844500010041088445000100120884450001008
7523-33JUDKINS RIGHT 5.0 cm5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00119008844500011961088445000119320884450001190
7523-43JUDKINS RIGHT 6.0 cm5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00427008844500042721088445000427920884450004276
7523-53JUDKINS RIGHT 3.5 cm5F125 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm14 mL/sec1030 psi72 kg/cm²01081008844500108151088445001081220884450010819
7523-63JUDKINS RIGHT 4.0 cm5F125 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm14 mL/sec1030 psi72 kg/cm²00125008844500012571088445000125420884450001251
7523-73JUDKINS RIGHT 5.0 cm5F125 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm14 mL/sec1030 psi72 kg/cm²00367008844500036711088445000367820884450003675
7523-83JUDKINS RIGHT 6.0 cm5F125 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm14 mL/sec1030 psi72 kg/cm²01027008844500102731088445001027020884450010277
7523-93JUDKINS RIGHT 4.5 cm5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 (mL/sec)940 (psi)66 (kg/cm²)12145008844501214501088445012145720884450121454
7523-E3JUDKINS RIGHT 3.5 cm SHORT TIP5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00444008844500044491088445000444620884450004443
7523-F1JUDKINS RIGHT 4.0 cm SHORT TIP5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00445008844500044561088445000445320884450004450
7523-G3JUDKINS RIGHT 5.0 cm SHORT TIP5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00446008844500044631088445000446020884450004467
7523-H3JUDKINS RIGHT 6.0 cm SHORT TIP5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00526008844500052621088445000526920884450005266
7523-L3JUDKINS RIGHT 1.5cm BUMPER TIP5F70 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm20 mL/sec982 psi69 kg/cm²Bumper TipNo Applicable Code00360008844500036021088445000360920884450003606
7523-M3JUDKINS RIGHT 2.0cm BUMPER TIP5F70 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm20 mL/sec982 psi69 kg/cm²Bumper TipNo Applicable Code00361008844500036191088445000361620884450003613
7523-N3JUDKINS RIGHT 2.5 cm BUMPER TIP5F70 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm20 mL/sec982 psi69 kg/cm²Bumper Tip00362008844500036261088445000362320884450003620
7523-P3JUDKINS RIGHT 3.0 cm BUMPER TIP5F70 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm20 mL/sec982 psi69 kg/cm²Bumper Tip00363008844500036331088445000363020884450003637
7526-11AMPLATZ RIGHT MODIFIED5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)3.3 cm15 mL/sec940 psi66 kg/cm²00447008844500044701088445000447720884450004474
7527-13AMPLATZ LEFT 15F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)5.0 cm15 mL/sec940 psi66 kg/cm²01028008844500102801088445001028720884450010284
7527-23AMPLATZ LEFT 25F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)5.0 cm15 mL/sec940 psi66 kg/cm²00853008844500085391088445000853620884450008533
7527-33AMPLATZ LEFT 35F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm15 mL/sec940 psi66 kg/cm²01097008844500109761088445001097320884450010970
7527-43AMPLATZ LEFT 45F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²01109008844500110961088445001109320884450011090
7528-13AMPLATZ RIGHT 15F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)3.3 cm15 mL/sec940 psi66 kg/cm²01002008844500100201088445001002720884450010024
7528-33AMPLATZ RIGHT 35F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)5.0 cm15 mL/sec940 psi66 kg/cm²00448008844500044871088445000448420884450004481
7529-11CARDIAC PIGTAIL5F110 cm0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)7.5 cm18 mL/sec1150 psi81 kg/cm²04463008844500446361088445004463320884450044630
7529-23CARDIAC PIGTAIL 145 DEGREE5F110 cm0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)7.5 cm18 mL/sec1150 psi81 kg/cm²7.5 cm00450008844500045001088445000450720884450004504
7529-33CARDIAC PIGTAIL 155 DEGREE5F110 cm0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)7.5 cm18 mL/sec1150 psi81 kg/cm²7.5 cm00099008844500009911088445000099820884450000995
7529-43CARDIAC PIGTAIL5F125 cm0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)7.5 cm18 mL/sec1170 psi82 kg/cm²01029008844500102971088445001029420884450010291
7529-53CARDIAC PIGTAIL 145 DEGREE5F125 cm0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)7.5 cm18 mL/sec1170 psi82 kg/cm²7.5 cm00451008844500045171088445000451420884450004511
7529-63CARDIAC PIGTAIL 155 DEGREE5F125 cm0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)7.5 cm18 mL/sec1170 psi82 kg/cm²7.5 cm00452008844500045241088445000452120884450004528
7530-13SONES TYPE5F80 cm0.046" (1.17 mm)4 Side Ports0.038" (0.97 mm)7.3 cm20 mL/sec1004 psi71 kg/cm²00453008844500045311088445000453820884450004535
7530-23SONES TYPE5F100 cm0.046" (1.17 mm)4 Side Ports0.038" (0.97 mm)7.3 cm15 mL/sec940 psi66 kg/cm²00370008844500037011088445000370820884450003705
7531-13INTERNAL MAMMARY5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)3.3 cm15 mL/sec940 psi66 kg/cm²00098008844500009841088445000098120884450000988
7532-13PROGRESSIVE RIGHT CORONARY5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00103008844500010351088445000103220884450001039
7533-13MULTIPURPOSE A15F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)5.8 cm15 mL/sec940 psi66 kg/cm²00045008844500004581088445000045520884450000452
7533-23MULTIPURPOSE A25F100 cm0.046" (1.17 mm)2 Side Ports0.038" (0.97 mm)5.8 cm15 mL/sec940 psi66 kg/cm²00097008844500009771088445000097420884450000971
7533-33MULTIPURPOSE B15F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)5.8 cm15 mL/sec940 psi66 kg/cm²00046008844500004651088445000046220884450000469
7533-43MULTIPURPOSE B25F100 cm0.046" (1.17 mm)2 Side Ports0.038" (0.97 mm)5.8 cm15 mL/sec940 psi66 kg/cm²01001008844500100131088445001001020884450010017
7533-53MULTIPURPOSE A25F80 cm0.046" (1.17 mm)2 Side Ports0.038" (1.17 mm)5.8 cm20 mL/sec1004 psi71 kg/cm²00043008844500004341088445000043120884450000438
7533-63MULTIPURPOSE B25F80 cm0.046" (1.17 mm)2 Side Ports0.038" (1.17 mm)5.8 cm20 mL/sec1004 psi71 kg/cm²00186008844500018681088445000186520884450001862
7534-13LEFT CORONARY BYPASS5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00095008844500009531088445000095020884450000957
7534-23RIGHT CORONARY BYPASS5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²00096008844500009601088445000096720884450000964
7534-43LEFT CORONARY BYPASS5F100 cm0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.5 cm15 mL/sec940 psi66 kg/cm²Bumper Tip08791008844500879161088445008791320884450087910
7569-11UHF CARDIAC PIGTAIL6F110 cm0.059" (1.49 mm)5 Side Ports0.038" (0.97 mm)8.0 cm37 mL/sec1193 psi84 kg/cm²07784008844500778491088445007784620884450077843
7569-23UHF CARDIAC PIGTAIL 145 DEGREE6F110 cm0.059" (1.49 mm)5 Side Ports0.038" (0.97 mm)8.0 cm37 mL/sec1193 psi84 kg/cm²5.5 cm00459008844500045931088445000459020884450004597
7569-33UHF CARDIAC PIGTAIL 155 DEGREE6F110 cm0.059" (1.49 mm)5 Side Ports0.038" (0.97 mm)8.0 cm37 mL/sec1193 psi84 kg/cm²5.5 cm00544008844500054461088445000544320884450005440
7569-43UHF CARDIAC PIGTAIL6F125 cm0.059" (1.49 mm)5 Side Ports0.038" (0.97 mm)8.0 cm35 mL/sec1124 psi79 kg/cm²00460008844500046091088445000460620884450004603
7569-53UHF CARDIAC PIGTAIL 145 DEGREE6F125 cm0.059" (1.49 mm)5 Side Ports0.038" (0.97 mm)8.0 cm35 mL/sec1124 psi79 kg/cm²5.5 cm00462008844500046231088445000462020884450004627
7569-63UHF CARDIAC PIGTAIL 155 DEGREE6F125 cm0.059" (1.49 mm)5 Side Ports0.038" (0.97 mm)8.0 cm35 mL/sec1124 psi79 kg/cm²5.5 cm00547008844500054771088445000547420884450005471
7572-11PROGRESSIVE RIGHT CORONARY HF6F100 cm0.059" (1.49 mm)0 Side Ports0.038" (0.97 mm)2.5 cm34 mL/sec1163 psi82 kg/cm²00535008844500053541088445000535120884450005358
7574-13JUDKINS LEFT 3.5 cm HF6F100 cm0.059" (1.49 mm)0 Side Ports0.038" (0.97 mm)2.5 cm34 mL/sec1163 psi82 kg/cm²00332008844500033291088445000332620884450003323
7574-21JUDKINS LEFT 4.0 cm HF6F100 cm0.059" (1.49 mm)0 Side Ports0.038" (0.97 mm)2.5 cm34 mL/sec1163 psi82 kg/cm²00333008844500033361088445000333320884450003330
7574-33JUDKINS LEFT 5.0 cm HF6F100 cm0.059" (1.49 mm)0 Side Ports0.038" (0.97 mm)2.5 cm34 mL/sec1163 psi82 kg/cm²01020008844500102041088445001020120884450010208
7574-43JUDKINS LEFT 6.0 cm HF6F100 cm0.059" (1.49 mm)0 Side Ports0.038" (0.97 mm)2.5 cm34 mL/sec1163 psi82 kg/cm²00334008844500033431088445000334020884450003347
7600-11PROGRESSIVE RIGHT CORONARY HF5F100 cm0.052" (1.32 mm)0 Side Ports0.038" (0.97 mm)2.5 cm24 mL/sec1163 psi82 kg/cm²00534008844500053471088445000534420884450005341
7601-13JUDKINS LEFT 3.5 cm HF5F100 cm0.052" (1.32 mm)0 Side Ports0.038" (0.97 mm)2.5 cm24 mL/sec1163 psi82 kg/cm²00318008844500031831088445000318020884450003187
7601-21JUDKINS LEFT 4.0 cm HF5F100 cm0.052" (1.32 mm)0 Side Ports0.038" (0.97 mm)2.5 cm24 mL/sec1163 psi82 kg/cm²00320008844500032061088445000320320884450003200
7601-33JUDKINS LEFT 5.0 cm HF5F100 cm0.052" (1.32 mm)0 Side Ports0.038" (0.97 mm)2.5 cm24 mL/sec1163 psi82 kg/cm²00321008844500032131088445000321020884450003217
7601-43JUDKINS LEFT 6.0 cm HF5F100 cm0.052" (1.32 mm)0 Side Ports0.038" (0.97 mm)2.5 cm24 mL/sec1163 psi82 kg/cm²00322008844500032201088445000322720884450003224
7602-11UHF CARDIAC PIGTAIL5F110 cm0.052" (1.32 mm)5 Side Ports0.038" (0.97 mm)7.5 cm28 mL/sec1132 psi80 kg/cm²00461008844500046161088445000461320884450004610
7602-23UHF CARDIAC PIGTAIL 145 DEGREE5F110 cm0.052" (1.32 mm)5 Side Ports0.038" (0.97 mm)7.5 cm28 mL/sec1132 psi80 kg/cm²7.5 cm00463008844500046301088445000463720884450004634
7602-33UHF CARDIAC PIGTAIL 155 DEGREE5F110 cm0.052" (1.32 mm)5 Side Ports0.038" (0.97 mm)7.5 cm28 mL/sec1132 psi80 kg/cm²7.5 cm01032008844500103271088445001032420884450010321
7700-10JUDKINS LEFT 3.5 cm BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.3 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00415008844500041591088445000415620884450004153
7700-20JUDKINS LEFT 4.0 cm BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.3 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00416008844500041661088445000416320884450004160
7700-30JUDKINS LEFT 5.0 cm BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.3 cm17 mL/sec1175 psi83 kg/cm²Bumper Tip00417008844500041731088445000417020884450004177
7700-40JUDKINS LEFT 6.0 cm BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.3 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00418008844500041801088445000418720884450004184
7700-A0JUDKINS LEFT 1.5 cm BUMPER TIP4F70 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm16 mL/sec1040 psi73 kg/cm²Bumper TipNo Applicable Code00350008844500035031088445000350020884450003507
7700-B0JUDKINS LEFT 2.0 cm BUMPER TIP4F70 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm16 mL/sec1040 psi73 kg/cm²Bumper TipNo Applicable Code00351008844500035101088445000351720884450003514
7700-C0JUDKINS LEFT 2.5 cm BUMPER TIP4F70 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm16 mL/sec1040 psi73 kg/cm²Bumper TipNo Applicable Code00352008844500035271088445000352420884450003521
7700-D0JUDKINS LEFT 3.0 cm BUMPER TIP4F70 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm16 mL/sec1040 psi73 kg/cm²Bumper TipNo Applicable Code01025008844500102591088445001025620884450010253
7701-10JUDKINS RIGHT 3.5cm BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.5 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code01106008844500110651088445001106220884450011069
7701-20JUDKINS RIGHT 4.0cm BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.5 cm17 mL/sec1175 psi83 kg/cm²Bumper Tip00412008844500041281088445000412520884450004122
7701-30JUDKINS RIGHT 5.0cm BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.5 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00413008844500041351088445000413220884450004139
7701-40JUDKINS RIGHT 6.0cm BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.5 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00414008844500041421088445000414920884450004146
7701-50JUDKINS RIGHT 4.5 cm BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.5 cm17 mL/sec1175 psi83 kg/cm²Bumper Tip10249008844501024971088445010249420884450102491
7701-A0JUDKINS RIGHT 1.5 cm BUMPER TIP4F70 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm16 mL/sec1040 psi73 kg/cm²Bumper Tip00353008844500035341088445000353120884450003538
7701-B0JUDKINS RIGHT 2.0cm BUMPER TIP4F70 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm16 mL/sec1040 psi73 kg/cm²Bumper TipNo Applicable Code01101008844500110101088445001101720884450011014
7701-C0JUDKINS RIGHT 2.5cm BUMPER TIP4F70 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm16 mL/sec1040 psi73 kg/cm²Bumper TipNo Applicable Code00354008844500035411088445000354820884450003545
7701-D0JUDKINS RIGHT 3.0cm BUMPER TIP4F70 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm16 mL/sec1040 psi73 kg/cm²Bumper TipNo Applicable Code00355008844500035581088445000355520884450003552
7702-10AMPLATZ RIGHT 1 BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)3.3 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00422008844500042271088445000422420884450004221
7702-20AMPLATZ RIGHT 2 BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)5.0 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00423008844500042341088445000423120884450004238
7702-30AMPLATZ RIGHT 3 BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)5.0 cm17 mL/sec1175 psi83 kg/cm²Bumper Tip00485008844500048521088445000485920884450004856
7702-40AMPLATZ RIGHT MOD BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)3.3 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code01107008844500110721088445001107920884450011076
7703-10AMPLATZ LEFT 1 BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)5.0 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00420008844500042031088445000420020884450004207
7703-20AMPLATZ LEFT 2 BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.2 cm17 mL/sec1175 psi83 kg/cm²Bumper Tip00421008844500042101088445000421720884450004214
7703-30AMPLATZ LEFT 3 BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.3 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00486008844500048691088445000486620884450004863
7703-40AMPLATZ LEFT 4 BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.5 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00487008844500048761088445000487320884450004870
7703-B0AMPLATZ LEFT 24F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)1.5 cm17 mL/sec1175 psi83 kg/cm²Bumper Tip00329008844500032991088445000329620884450003293
7704-10CARDIAC PIG STR4F110 cm0.042" (1.07 mm)5 Side Ports0.038" (0.97 mm)6.5 cm15 mL/sec1163 psi82 kg/cm²No Applicable Code00488008844500048831088445000488020884450004887
7704-20CARDIAC PIG 145 DEGREE4F110 cm0.042" (1.07 mm)5 Side Ports0.038" (0.97 mm)6.5 cm15 mL/sec1163 psi82 kg/cm²5.5 cm00307008844500030771088445000307420884450003071
7704-30CARDIAC PIG 155 DEGREE4F110 cm0.042" (1.07 mm)5 Side Ports0.038" (0.97 mm)6.5 cm15 mL/sec1163 psi82 kg/cm²5.5 cmNo Applicable Code00093008844500009391088445000093620884450000933
7704-70CARDIAC PIG STR4F80 cm0.042" (1.07 mm)5 Side Ports0.038" (0.97 mm)6.5 cm15 mL/sec1138 psi80 kg/cm²No Applicable Code01168008844500116831088445001168020884450011687
7705-10SONES BUMPER TIP4F80 cm0.042" (1.07 mm)4 Side Ports0.038" (0.97 mm)7.3 cm15 mL/sec1128 psi79 kg/cm²Bumper TipNo Applicable Code00561008844500056131088445000561020884450005617
7705-20SONES BUMPER TIP4F100 cm0.042" (1.07 mm)4 Side Ports0.038" (0.97 mm)7.3 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00369008844500036951088445000369220884450003699
7706-10INTERNAL MAMMARY BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)3.3 cm17 mL/sec1175 psi83 kg/cm²Bumper Tip00092008844500009221088445000092920884450000926
7707-10PROGRESSIVE RIGHT CORONARY BT4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.5 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00419008844500041971088445000419420884450004191
7708-10MULTIPURPOSE A1 BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)5.8 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00424008844500042411088445000424820884450004245
7708-20MULTIPURPOSE A2 BUMPER TIP4F100 cm0.042" (1.07 mm)2 Side Ports0.038" (0.97 mm)5.8 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code01000008844500100061088445001000320884450010000
7708-30MULTIPURPOSE A2 BUMPER TIP4F80 cm0.042" (1.07 mm)2 Side Ports0.038" (0.97 mm)5.8 cm15 mL/sec1128 psi79 kg/cm²Bumper TipNo Applicable Code00314008844500031451088445000314220884450003149
7708-40MULTIPURPOSE B2 BUMPER TIP4F80 cm0.042" (1.07 mm)2 Side Ports0.038" (0.97 mm)5.8 cm15 mL/sec1128 psi79 kg/cm²Bumper TipNo Applicable Code00315008844500031521088445000315920884450003156
7708-50MULTIPURPOSE B1 BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)5.8 cm17 mL/sec1175 psi83 kg/cm²Bumper Tip01016008844500101671088445001016420884450010161
7708-60MULTIPURPOSE B2 BUMPER TIP4F100 cm0.042" (1.07 mm)2 Side Ports0.038" (0.97 mm)5.8 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code01078008844500107851088445001078220884450010789
7709-10LT CORONARY BYPASS BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.5 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00090008844500009081088445000090520884450000902
7709-20RT CORONARY BYPASS BUMPER TIP4F100 cm0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.5 cm17 mL/sec1175 psi83 kg/cm²Bumper TipNo Applicable Code00091008844500009151088445000091220884450000919
7756-10STANDARD PEDIATRIC PIGTAIL4F65 cm0.041" (1.04 mm)5 Side Ports0.035" (0.89 mm)6.0 cm21 mL/sec1167 psi82 kg/cm²09948008844500994831088445009948020884450099487
7756-20STANDARD PEDIATRIC PIGTAIL4F80 cm0.041" (1.04 mm)5 Side Ports0.035" (0.89 mm)6.0 cm15 mL/sec1138 psi80 kg/cm²12237008844501223721088445012237920884450122376
7757-10INFANT PEDIATRIC PIGTAIL4F65 cm0.041" (1.04 mm)4 Side Ports0.035" (0.89 mm)5.5 cm21 mL/sec1167 psi82 kg/cm²10397008844501039751088445010397220884450103979
7757-20INFANT PEDIATRIC PIGTAIL4F80 cm0.041" (1.04 mm)4 Side Ports0.035" (0.89 mm)5.5 cm15 mL/sec1138 psi80 kg/cm²No Applicable Code12032008844501203231088445012032020884450120327
7776-11CARDIAC PIGTAIL5F90 cm0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)5.0 cm22 mL/sec1156 psi81 kg/cm²00128008844500012881088445000128520884450001282
7776-21CARDIAC PIGTAIL5F110 cm0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)5.0 cm18 mL/sec1150 psi81 kg/cm²00492008844500049201088445000492720884450004924
7776-33CARDIAC PIGTAIL 145 DEGREE5F110 cm0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)5.0 cm18 mL/sec1150 psi81 kg/cm²5.5 cm00304008844500030461088445000304320884450003040
7776-43CARDIAC PIGTAIL 155 DEGREE5F110 cm0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)5.0 cm18 mL/sec1150 psi81 kg/cm²5.5 cm00543008844500054391088445000543620884450005433
7776-B1UHF CARDIAC PIGTAIL5F110 cm0.052" (1.32 mm)5 Side Ports0.038" (0.97 mm)4.6 cm28 mL/sec1132 psi80 kg/cm²00493008844500049371088445000493420884450004931
7776-C3UHF CARDIAC PIGTAIL 145 DEGREE5F110 cm0.052" (1.32 mm)5 Side Ports0.038" (0.97 mm)4.6 cm28 mL/sec1132 psi80 kg/cm²5.5 cm00494008844500049441088445000494120884450004948
7776-D3UHF CARDIAC PIGTAIL 155 DEGREE5F110 cm0.052" (1.32 mm)5 Side Ports0.038" (0.97 mm)4.6 cm28 mL/sec1132 psi80 kg/cm²5.5 cm00495008844500049511088445000495820884450004955
7777-21CARDIAC PIGTAIL6F110 cm0.059" (1.49 mm)5 Side Ports0.038" (0.97 mm)4.6 cm30 mL/sec1120 psi79 kg/cm²00496008844500049681088445000496520884450004962
7777-33CARDIAC PIGTAIL 145 DEGREE6F110 cm0.054" (1.37 mm)5 Side Ports0.038" (0.97 mm)4.6 cm30 mL/sec1120 psi79 kg/cm²5.5 cm00497008844500049751088445000497220884450004979
7777-43CARDIAC PIGTAIL 155 DEGREE6F110 cm0.054" (1.37 mm)5 Side Ports0.038" (0.97 mm)4.6 cm30 mL/sec1120 psi79 kg/cm²5.5 cm00549008844500054911088445000549820884450005495
7777-B1UHF CARDIAC PIGTAIL6F110 cm0.059" (1.49 mm)5 Side Ports0.038" (0.97 mm)4.8 cm37 mL/sec1193 psi84 kg/cm²00498008844500049821088445000498920884450004986
7777-C3UHF CARDIAC PIGTAIL 145 DEGREE6F110 cm0.059" (1.49 mm)5 Side Ports0.038" (0.97 mm)4.8 cm37 mL/sec1193 psi84 kg/cm²5.5 cm00499008844500049991088445000499620884450004993
7777-D3UHF CARDIAC PIGTAIL 155 DEGREE6F110 cm0.059" (1.49 mm)5 Side Ports0.038" (0.97 mm)4.8 cm37 mL/sec1193 psi84 kg/cm²5.5 cm00548008844500054841088445000548120884450005488
