Prelude Roadster™ Guide Sheath

Prelude Roadster Guide Sheath - Designed for access to tortuous anatomy
Prelude Roadster Guide Sheath - Designed for access to tortuous anatomy
solution

Feature & Benefits

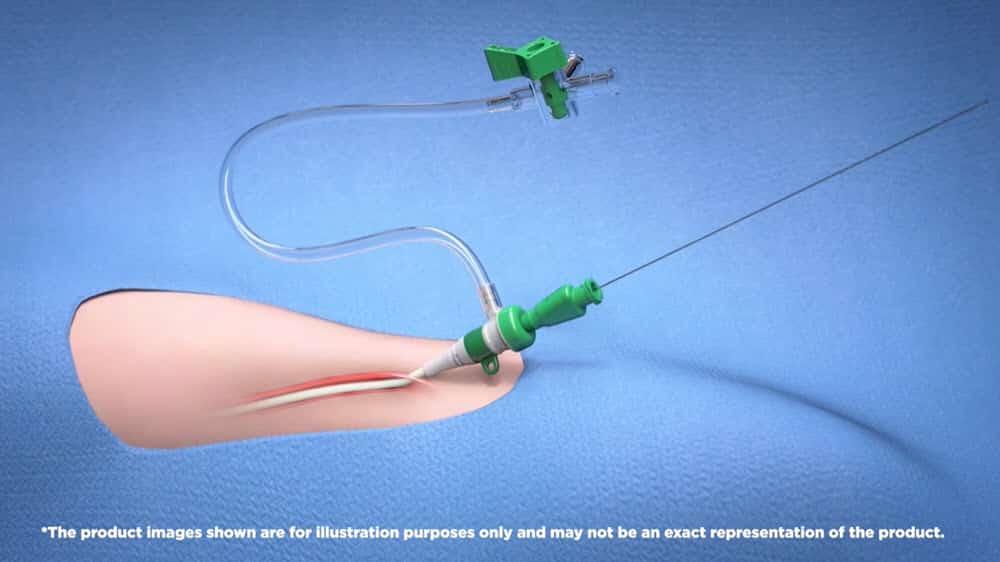

The Prelude Roadster is designed with the patient and clinician in mind to help provide access to difficult anatomy in the peripheral vasculature. The Prelude Roadster has a high-quality hydrophilic coating that allows a smooth transition as well as stainless-steel coiling for kink resistance to help gain and maintain access. It provides excellent visibility with a marker band and radiopaque tip which will confirm the precise location of the sheath during diagnostic and interventional procedures.

DESIGNED FOR EASE OF ENTRY AND ENHANCED TRACKABILITY

Prelude Roadster - Features & Benefits to ease entry & enhance trackability

1 — Visibility
Marker band and radiopaque tip confirm precise location, especially important during critical balloon inflation.

2 — Minimize Friction
A distal 35-cm length of hydrophilic coating eases entry into the vessel.

3 — Ergonomic Hub
Supports device torque and minimizes kinking.

4 — Patient Safety
A hemostasis valve helps to reduce the potential of patient blood loss.

5 — Strain Relief
Designed to help minimize kinking during insertion.

6 — Kink Resistance
A nylon outer layer with stainless steel coil and PTFE liner prevents kinking.

7 — Trackability
Seamless guide wire-to-dilator and dilator-to-sheath transitions facilitate tracking over the wire during placement.


SHAPES AND SIZES TO MEET A WIDE RANGE OF ANATOMICAL NEEDS

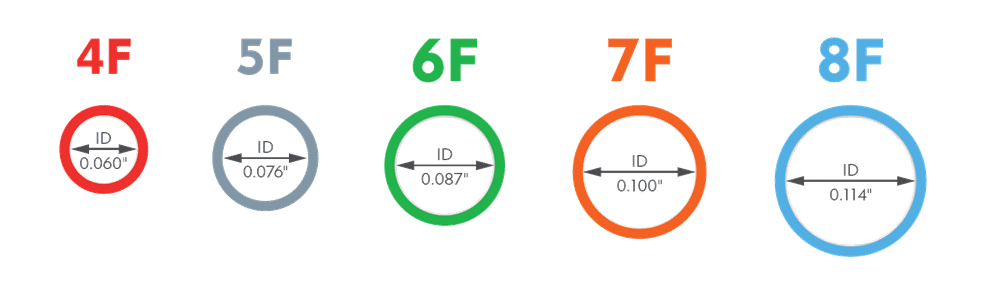

DIAMETER SIZES: A wide selection of lumen sizes designed for diagnostic and therapeutic device delivery.

Prelude Roadster - Wide selection of lumen sizes

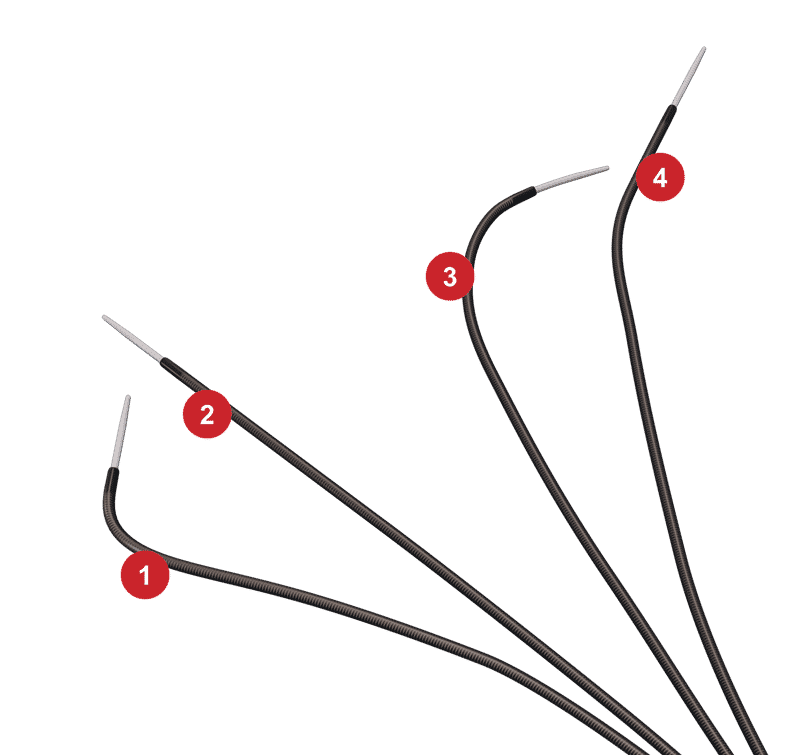

TIP SHAPES: Four tip shapes to help you address procedural challenges.

Prelude Roadster - Multiple Sheath Options



1 — Hockey Stick (HS)

2 — Straight (S)

3 — Renal Double Curve (R)

4 — Multipurpose (MP)



LENGTHS: 45 cm, 65 cm, and 90 cm sheath lengths to help you reach challenging anatomy.

Prelude Roadster - 45 cm, 60 cm, 90 cm lengths for reaching difficult anatomy

list

Order Information

How to Read the Merit Prelude Roadster Part Number

PG6F90MPX (Part Number Example) PG 6F 90 MP X
Prelude Guide Sheath French Size Length (cm) Tip Shape Extra Body
