Ventrax™ Delivery System

Retrograde . . . Not Retrofit

The Ventrax™ is the first all-in-one delivery system on the market, designed to streamline retrograde aortic access in ventricular tachycardia procedures. Explore how its key features provide you with multiple advantages, including enhanced crossing of the aortic valve, smooth insertion, and the freedom to make exchanges with your own catheters.

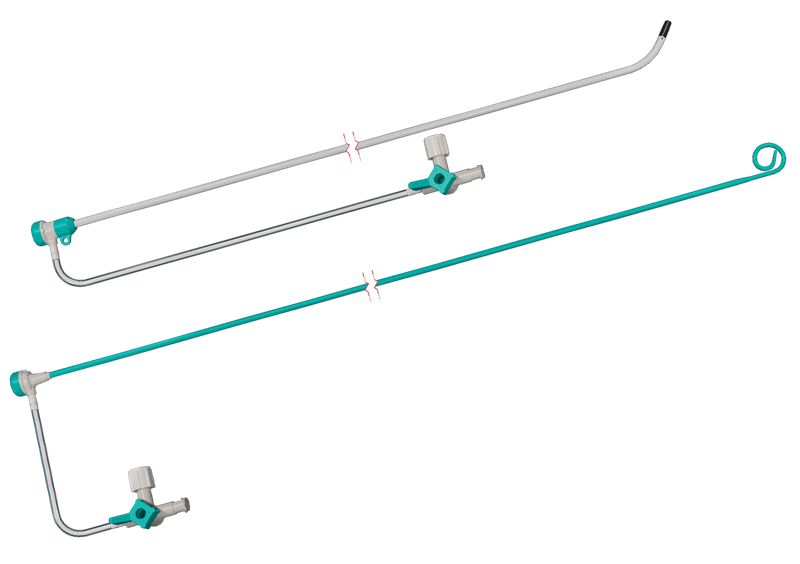

products images
    solution

    Features & Benefits

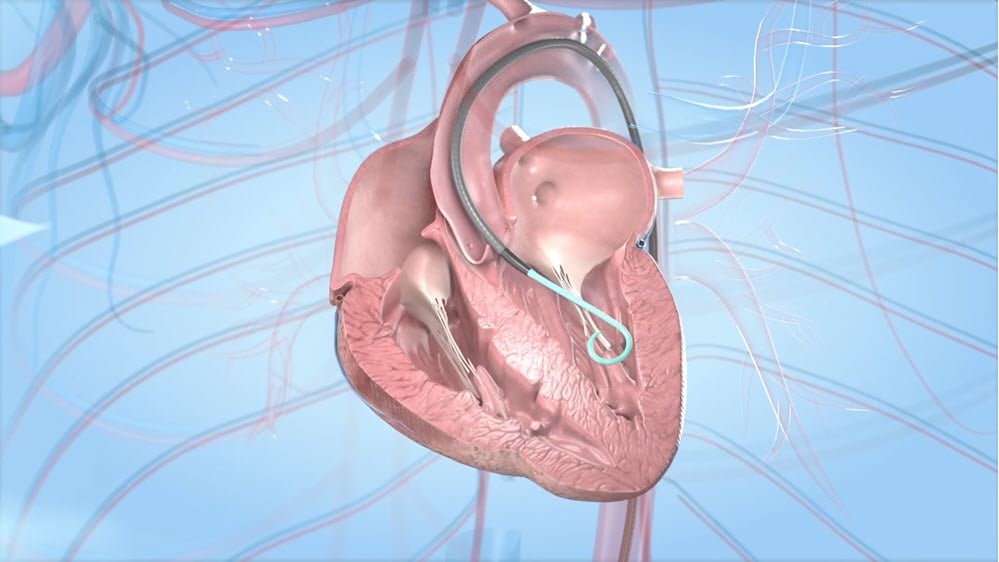

    Badge with copy that reads "Designed in Partnership with EP Physicians"Designed in partnership with EP physicians, the Ventrax is intended to provide a pathway through which devices are introduced within the chambers and coronary vasculature of the heart, specifically targeting the left  ventricle (LV) via the aortic valve. This approach, known as retrograde aortic access, makes certain areas of the LV more accessible.1

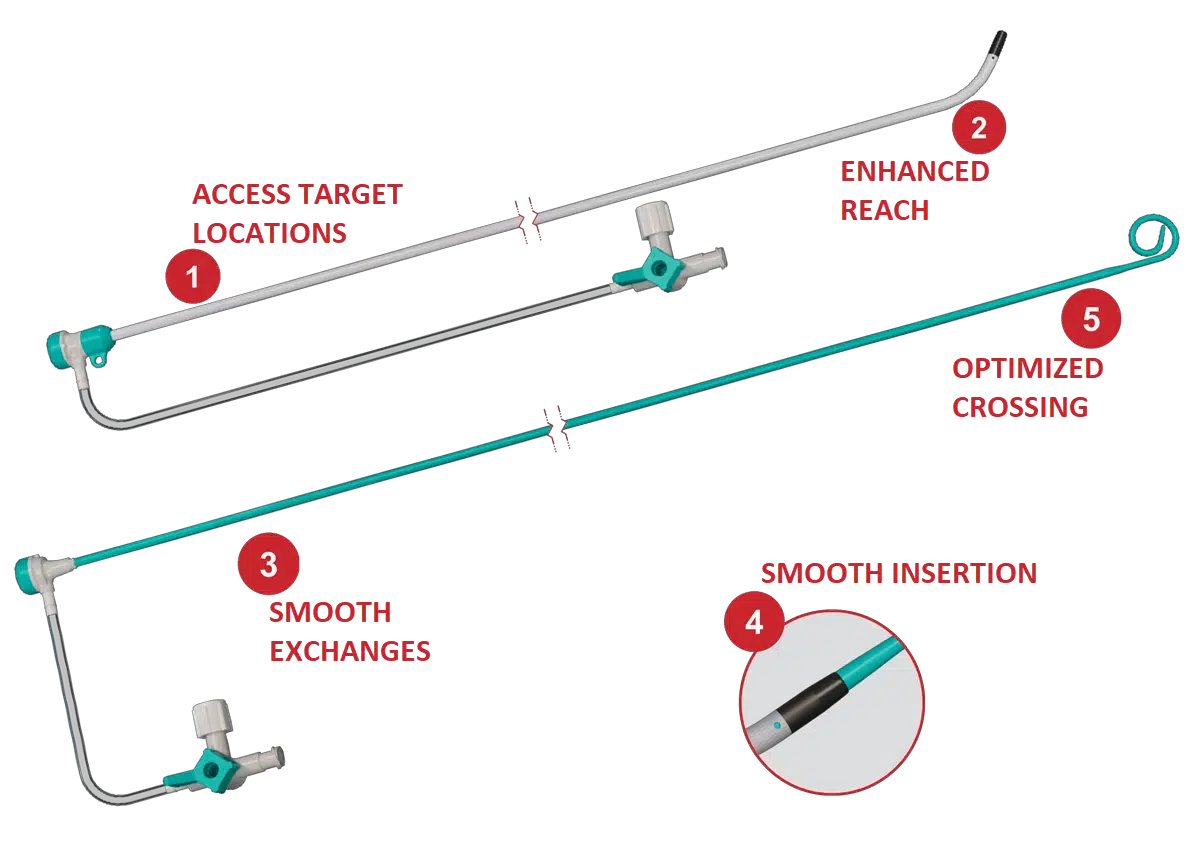

    Image of the Ventrax Delivery System with numbered call outs, numbered 1 thru 5

    1 | ACCESS TARGET LOCATIONS

    A 95-cm sheath to help access desired target locations.



    2 | ENHANCED REACH

    An angled tip designed to enhance the reach of an ablation catheter.



    3 | SMOOTH EXCHANGES

    Because the Ventrax maintains a conduit to the LV, smooth exchanges can be made with your preferred catheters.



    4 | SMOOTH INSERTION

    Ultralow-profile transition between the pigtail-dilator and sheath allows for smooth insertion.



    5 | OPTIMIZED CROSSING

    Soft custom pigtail dilator enhances the ease of crossing the aortic valve.



     References

    1. Adlan et al. 2019. “Retrograde Aortic Access During Ventricular Tachycardia Ablation: Indications, Techniques, and Challenges.” Journal of Cardiovascular Electrophysiology 30 (11): 2629 ̶ 2639. (PMID: 31502368)

    document

    Documents

    globe

    Order Information



    CATALOG NUMBER DESCRIPTION PACKAGED
    VTR852 MS Sheath, Pigtail-Dilator, Straight Dilator, Amplatz Wire (220 cm) 1 per box
    VTR853 LS Sheath, Pigtail-Dilator, Straight Dilator, Amplatz Wire (220 cm) 1 per box
