OneMark™ Detection Imaging System

A Biopsy to Surgery Targeting Solution

The OneMark System combines biopsy site marking and surgical localization to streamline care and support confident clinical decision making across the continuum of care. Using real-time audio and visual feedback, surgeons can visualize the marker within a tumor and surrounding tissue to target the area for removal1.

Learn More at Meritoncology.com

products images
    solution

    Features & Benefits

    Support Extended Treatment Paths & Eliminate Additional Procedures1

    Biopsy with OneMark

    OneMark can help create a more connected path from biopsy to surgery and eliminate unnecessary procedures1.



    PLACE Place OneMark icon

    Place OneMark at biopsy.

    Mark biopsy sites and eliminate the need for unnecessary localization appointments.




    NO SURGERY REQUIRED

    MONITOR
    Monitor icon

    Stay vigilant.

    OneMark remains in place, identifying biopsy sites for further surveillance.




    SURGERY REQUIRED

    SURGERY
    Surgery icon

    Operate with confidence.

    Progress to surgery with precision and accuracy.

    Preserve clinical options.

    OneMark will not interfere with preoperative treatment, if needed, including neoadjuvant therapy and MRIs.





    Biopsy to Surgery, Simplified

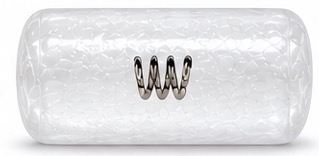

    OneMark:

    • OneMark remains detectable for up to 9 months from biopsy through surgery, including neoadjuvant workflows1
    • Combines radiographic, ultrasound, and detection capabilities in a single marker to eliminate duplicate procedures1
    • Does not require surgical removal of the OneMark1



    • 5 mm body size1
    • Visible under standard radiologic imaging1
    • Clinically insignificant MRI artifact 2mm1

    OneMark Delivery Device:

    Designed to Meet Your Needs

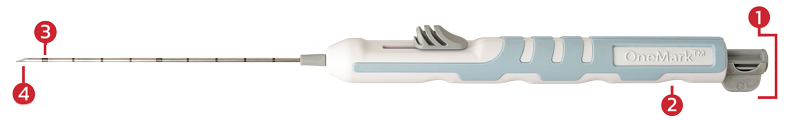

    Long Handle

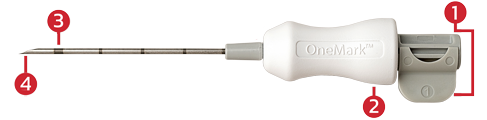

    Short Handle

    (1) Can be placed under common imaging modalities

    (2) Available in Dual-Slide 7 cm and 10 cm and Single Slide 5 cm and 10 cm

    (3) Cm depth markings

    (4) Sharp end deploy tip

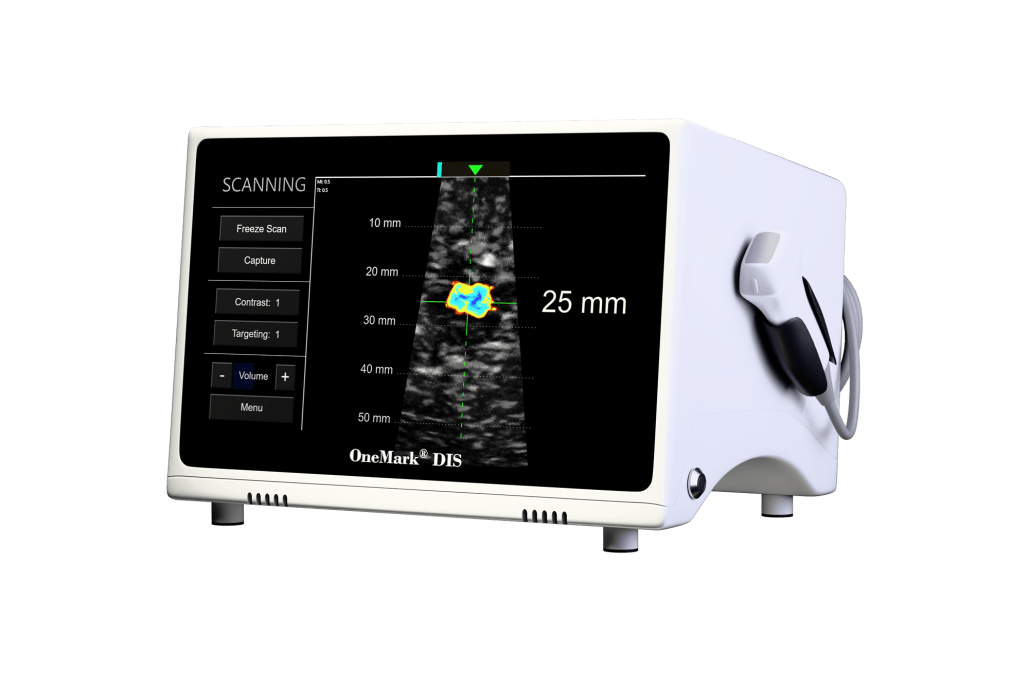

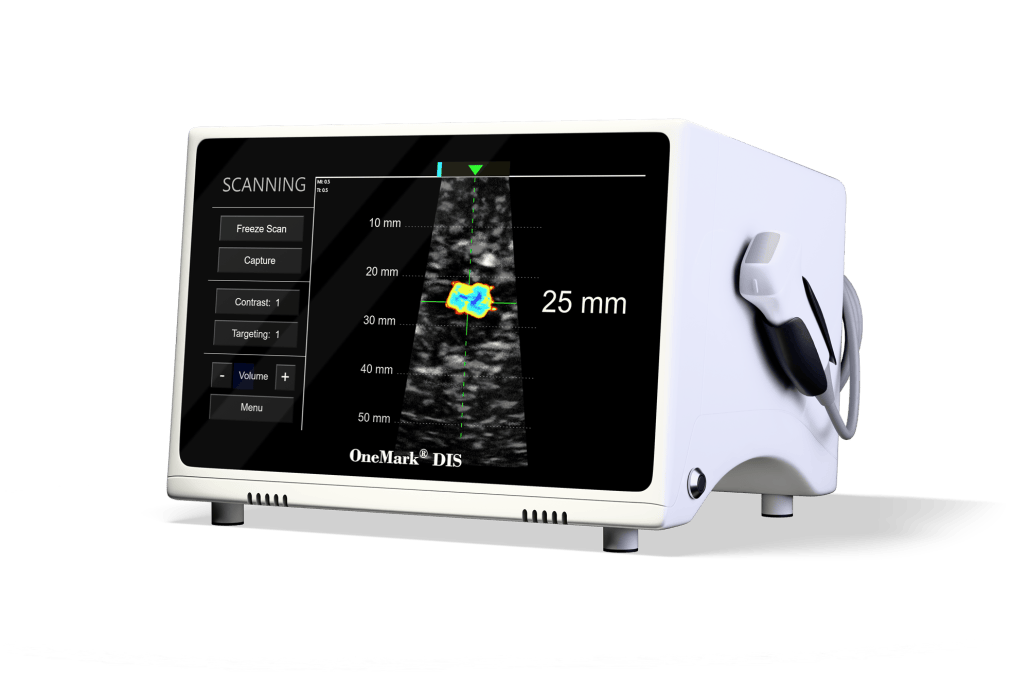

    OneMark Console and Transducer:







    • Color overlay and crosshair indicators provide real-time visual and audio feedback
    • Detection up to 50 mm
    • See surronding tissue and anatomy of the intended biopsy site

    Accuracy & Visibility

    Visible under standard breast imaging modalities

    Ultrasound















    Images courtesy of Richard E. Fine, MD, FACS. Used with permission

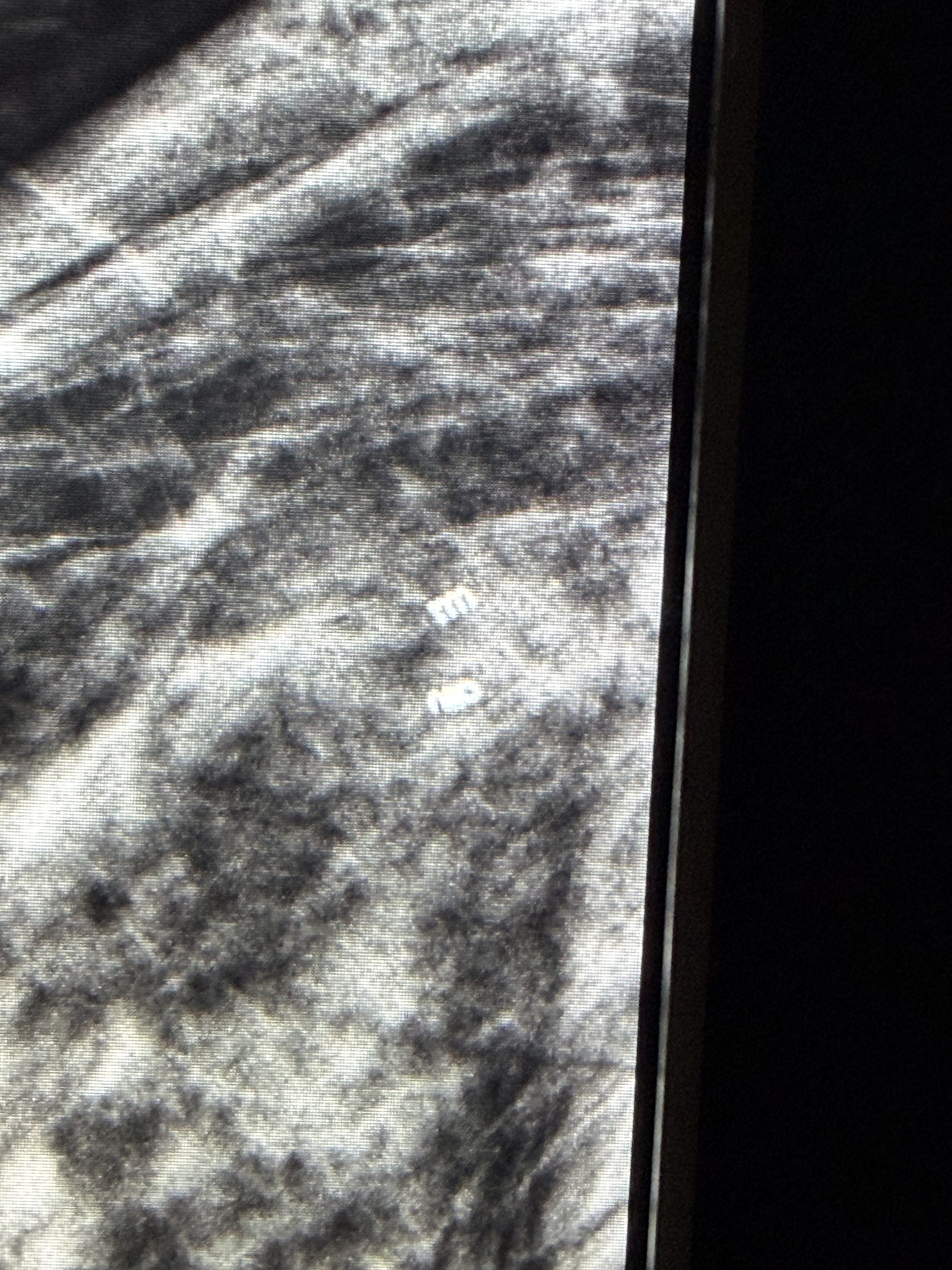

    Mammography

    document

    Documents

    Current Brochure

    OneMark™ Detection Imaging System – Brochure (US English)

    The Instructions for Use (IFU) provided on this page are for general information purposes only. Please refer to the IFU provided with the actual product for indications, contraindications, warnings, precautions, and directions for use.
    globe

    Order Information





    CATALOG NUMBER DESCRIPTION
    OMBD-1707T1 Dual Slide, 17G, 7 CM, Open Coil
    OMBD-1707T2 Dual Slide, 17G, 7 CM, Closed Coil
    OMBD-1710T1 Dual Slide, 17G, 10 CM, Open Coil
    OMBD-1710T2 Dual Slide, 17G, 10 CM, Closed Coil
    OMBS-1705T1 Single Slide, 17G, 5 CM, Open Coil
    OMBS-1705T2 Single Slide, 17G, 5 CM, Closed Coil
    OMBS-1710T1 Single Slide, 17G, 10 CM, Open Coil
    OMBS-1710T2 Single Slide, 17G, 10 CM, Closed Coil
    OMDIS-K100 System including Console, Probe and Accessories
    OMDIS-C100 OneMark Console
    OMDIS-P100 OneMark Transducer





    Before using any of the products mentioned, refer to Instructions for Use for indications, contraindications, warnings, precautions, and directions for use.

    REFERENCES

    1. Data on file.

    408864001_001 ID 091026
