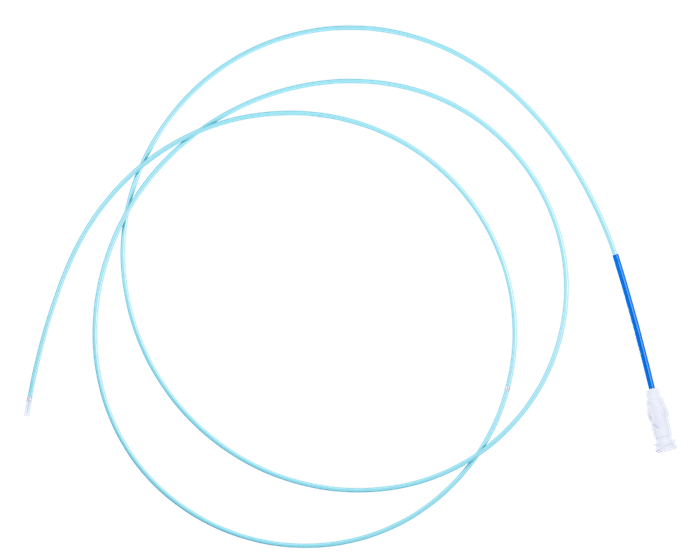

Fountain® Infusion Systems

The Fountain infusion system features exclusive gradient hole sizes that are laser-drilled in a spiraling pattern for more uniform dispersion of therapeutic agents in slow-continuous infusion with multiple delivery options: traditional 2-syringe infusion, or pulse infusion via Merit Medical’s exclusive Squirt Fluid Dispensing System. The 4F and 5F Fountain Infusion systems are available with the Squirt Fluid Dispensing syringe, catheter, occluding wire, and the AccessPLUS hemostasis valve.

fountaininfusecath

Learn More About Fountain® Infusion Systems

PRODUCT FEATURES
Gradient Hole Sizes – Exclusive gradient hole sizes allow uniform infusion of therapeutic agent along the entire length of the infusion segment. Holes are laser drilled to provide a superior infusion pattern for continuous slow-drip or pulsed infusion techniques.
Longer Infusion Segments – Both the 4F and 5F products have infusion segments from 5cm – 50cm.
Catheter – Compatible with 0.035” (0.89mm) guide wire. Fabricated to provide the proper stiffness for good trackability and ease of placement.
Occluding Wire – Effectively blocks off the end hole of the catheter so the therapeutic agent is directed out the side holes into the thrombus.
Hemostasis Valve – Large bore valve allows easy wire placement while minimizing patient blood loss. Airless rotator minimizes bubbles.
High Pressure Check Relief Valve – Designed so injection occurs only from the infusion syringe. Unique “in-line” design provides better handling during pulsed infusion.

4F PROPRIETARY SNAP CAP
The cap at the proximal end of the occluding wire snaps into the hemostasis valve ensuring correct wire placement and adding security for overnight or long-term infusions.

PRODUCT COMPARISON
The side holes on the Fountain Infusion Catheter rotate around the catheter to create a more uniform dispersion of therapeutic agent.

The 4 French and 5 French Fountain Infusion Systems are available with the Squirt or with an infusion system containing a high pressure check-relief valve and infusion syringe. Both systems contain a Merit AccessPLUSTM hemostasis valve and a 20ml reservoir syringe.

5F PROPRIETARY WIRE PROTECTOR CAP
The wire protector cap covers the proximal end of the occluding wire and snaps into the hemostasis valve.

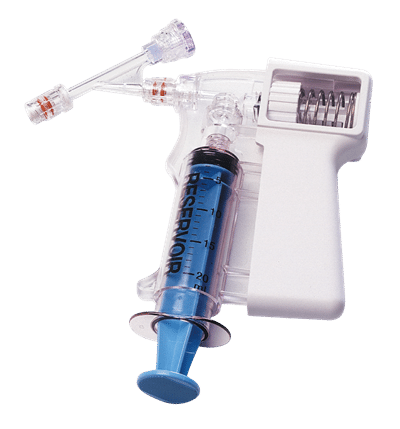

SQUIRT® FLUID DELIVERY SYSTEM
Consistent, forceful, pulsed injections for optimal thrombolysis procedures.

PULSE INFUSION KITS
Pulse Infusion Kits are designed to be used with the Fountain® and Mistique® Infusion Catheters. Products are available with 1ml infusion syringe, 20ml reservoir syringe, and check relief valve; some kits also contain a hemostasis valve.

View Fullscreen

Catalog NumberExpanded Family NameFrench Size (F)Catheter Length (cm)Infusion Segment Length (cm)Catheter Body MaterialSterilizationLatex FreeHCPCS CodeShipping Box Qty
FIS4-135-10Therapeutic Infusion Catheter4F135 cm10 cmPebaxETOYesC1751, C17691
FIS4-135-10-VValveTip4F135 cm10 cmPebaxETOYesC1751,C17691
FIS4-135-10SQTherapeutic Infusion Catheter4F135 cm10 cmPebaxETOYesC1751, C17691
FIS4-135-10SQ-VValveTip4F135 cm10 cmPebaxETOYesC1751,C17691
FIS4-135-20Therapeutic Infusion Catheter4F135 cm20 cmPebaxETOYesC1751, C17691
FIS4-135-20-VValveTip4F135 cm20 cmPebaxETOYesC1751,C17691
FIS4-135-20SQTherapeutic Infusion Catheter4F135 cm20 cmPebaxETOYesC1751, C17691
FIS4-135-20SQ-VValveTip4F135 cm20 cmPebaxETOYesC1751,C17691
FIS4-135-30Therapeutic Infusion Catheter4F135 cm30 cmPebaxETOYesC1751, C17691
FIS4-135-30-VValveTip4F135 cm30 cmPebaxETOYesC1751,C17691
FIS4-135-30SQTherapeutic Infusion Catheter4F135 cm30 cmPebaxETOYesC1751, C17691
FIS4-135-30SQ-VValveTip4F135 cm30 cmPebaxETOYesC1751,C17691
FIS4-135-40Therapeutic Infusion Catheter4F135 cm40 cmPebaxETOYesC1751, C17691
FIS4-135-40-VValveTip4F135 cm40 cmPebaxETOYesC1751,C17691
FIS4-135-40SQTherapeutic Infusion Catheter4F135 cm40 cmPebaxETOYesC1751, C17691
FIS4-135-40SQ-VValveTip4F135 cm40 cmPebaxETOYesC1751,C17691
FIS4-135-5Therapeutic Infusion Catheter4F135 cm5 cmPebaxETOYesC1751, C17691
FIS4-135-5-VValveTip4F135 cm5 cmPebaxETOYesC1751,C17691
FIS4-135-50Therapeutic Infusion Catheter4F135 cm50 cmPebaxETOYesC1751, C17691
FIS4-135-50-VValveTip4F135 cm50 cmPebaxETOYesC1751,C17691
FIS4-135-50SQTherapeutic Infusion Catheter4F135 cm50 cmPebaxETOYesC1751, C17691
FIS4-135-50SQ-VValveTip4F135 cm50 cmPebaxETOYesC1751,C17691
FIS4-135-5SQTherapeutic Infusion Catheter4F135 cm5 cmPebaxETOYesC1751, C17691
FIS4-135-5SQ-VValveTip4F135 cm5 cmPebaxETOYesC1751,C17691
FIS4-45-10Therapeutic Infusion Catheter4F45 cm10 cmPebaxETOYesC1751, C17691
FIS4-45-10-VValveTip4F45 cm10 cmPebaxETOYesC1751,C17691
FIS4-45-10SQTherapeutic Infusion Catheter4F45 cm10 cmPebaxETOYesC1751, C17691
FIS4-45-10SQ-VValveTip4F45 cm10 cmPebaxETOYesC1751,C17691
FIS4-45-20Therapeutic Infusion Catheter4F45 cm20 cmPebaxETOYesC1751, C17691
FIS4-45-20-VValveTip4F45 cm20 cmPebaxETOYesC1751,C17691
FIS4-45-20SQTherapeutic Infusion Catheter4F45 cm20 cmPebaxETOYesC1751, C17691
FIS4-45-20SQ-VValveTip4F45 cm20 cmPebaxETOYesC1751,C17691
FIS4-90-10Therapeutic Infusion Catheter4F90 cm10 cmPebaxETOYesC1751, C17691
FIS4-90-10-VValveTip4F90 cm10 cmPebaxETOYesC1751,C17691
FIS4-90-10SQTherapeutic Infusion Catheter4F90 cm10 cmPebaxETOYesC1751, C17691
FIS4-90-10SQ-VValveTip4F90 cm10 cmPebaxETOYesC1751,C17691
FIS4-90-20Therapeutic Infusion Catheter4F90 cm20 cmPebaxETOYesC1751, C17691
FIS4-90-20-VValveTip4F90 cm20 cmPebaxETOYesC1751,C17691
FIS4-90-20SQTherapeutic Infusion Catheter4F90 cm20 cmPebaxETOYesC1751, C17691
FIS4-90-20SQ-VValveTip4F90 cm20 cmPebaxETOYesC1751,C17691
FIS4-90-30Therapeutic Infusion Catheter4F90 cm30 cmPebaxETOYesC1751, C17691
FIS4-90-30-VValveTip4F90 cm30 cmPebaxETOYesC1751,C17691
FIS4-90-30SQTherapeutic Infusion Catheter4F90 cm30 cmPebaxETOYesC1751, C17691
FIS4-90-30SQ-VValveTip4F90 cm30 cmPebaxETOYesC1751,C17691
FIS4-90-40Therapeutic Infusion Catheter4F90 cm40 cmPebaxETOYesC1751, C17691
FIS4-90-40-VValveTip4F90 cm40 cmPebaxETOYesC1751,C17691
FIS4-90-40SQTherapeutic Infusion Catheter4F90 cm40 cmPebaxETOYesC1751, C17691
FIS4-90-40SQ-VValveTip4F90 cm40 cmPebaxETOYesC1751,C17691
FIS4-90-5Therapeutic Infusion Catheter4F90 cm5 cmPebaxETOYesC1751, C17691
FIS4-90-5-VValveTip4F90 cm5 cmPebaxETOYesC1751,C17691
FIS4-90-50Therapeutic Infusion Catheter4F90 cm50 cmPebaxETOYesC1751, C17691
FIS4-90-50-VValveTip4F90 cm50 cmPebaxETOYesC1751,C17691
FIS4-90-50SQTherapeutic Infusion Catheter4F90 cm50 cmPebaxETOYesC1751, C17691
FIS4-90-50SQ-VValveTip4F90 cm50 cmPebaxETOYesC1751,C17691
FIS4-90-5SQTherapeutic Infusion Catheter4F90 cm5 cmPebaxETOYesC1751, C17691
FIS4-90-5SQ-VValveTip4F90 cm5 cmPebaxETOYesC1751,C17691
FIS5-135-10Therapeutic Infusion Catheter5F135 cm10 cmPebaxETOYes1
FIS5-135-10SQTherapeutic Infusion Catheter5F135 cm10 cmPebaxETOYes1
FIS5-135-20Therapeutic Infusion Catheter5F135 cm20 cmPebaxETOYes1
FIS5-135-20SQTherapeutic Infusion Catheter5F135 cm20 cmPebaxETOYes1
FIS5-135-30Therapeutic Infusion Catheter5F135 cm30 cmPebaxETOYes1
FIS5-135-30SQTherapeutic Infusion Catheter5F135 cm30 cmPebaxETOYes1
FIS5-135-40Therapeutic Infusion Catheter5F135 cm40 cmPebaxETOYes1
FIS5-135-40SQTherapeutic Infusion Catheter5F135 cm40 cmPebaxETOYes1
FIS5-135-5Therapeutic Infusion Catheter5F135 cm5 cmPebaxETOYes1
FIS5-135-50Therapeutic Infusion Catheter5F135 cm50 cmPebaxETOYes1
FIS5-135-50SQTherapeutic Infusion Catheter5F135 cm50 cmPebaxETOYes1
FIS5-135-5SQTherapeutic Infusion Catheter5F135 cm5 cmPebaxETOYes1
FIS5-45-10Therapeutic Infusion Catheter5F45 cm10 cmPebaxETOYes1
FIS5-45-10SQTherapeutic Infusion Catheter5F45 cm10 cmPebaxETOYes1
FIS5-45-20Therapeutic Infusion Catheter5F45 cm20 cmPebaxETOYes1
FIS5-45-20SQTherapeutic Infusion Catheter5F45 cm20 cmPebaxETOYes1
FIS5-90-10Therapeutic Infusion Catheter5F90 cm10 cmPebaxETOYes1
FIS5-90-10SQTherapeutic Infusion Catheter5F90 cm10 cmPebaxETOYes1
FIS5-90-20Therapeutic Infusion Catheter5F90 cm20 cmPebaxETOYes1
FIS5-90-20SQTherapeutic Infusion Catheter5F90 cm20 cmPebaxETOYes1
FIS5-90-30Therapeutic Infusion Catheter5F90 cm30 cmPebaxETOYes1
FIS5-90-30SQTherapeutic Infusion Catheter5F90 cm30 cmPebaxETOYes1
FIS5-90-40Therapeutic Infusion Catheter5F90 cm40 cmPebaxETOYes1
FIS5-90-40SQTherapeutic Infusion Catheter5F90 cm40 cmPebaxETOYes1
FIS5-90-5Therapeutic Infusion Catheter5F90 cm5 cmPebaxETOYes1
FIS5-90-50Therapeutic Infusion Catheter5F90 cm50 cmPebaxETOYes1
FIS5-90-50SQTherapeutic Infusion Catheter5F90 cm50 cmPebaxETOYes1
FIS5-90-5SQTherapeutic Infusion Catheter5F90 cm5 cmPebaxETOYes1
FW4-135Occluding Wire4F135 cmNoETOYes5
FW4-90Occluding Wire4F90 cmNoETOYes5
FW5-135Occluding Wire5F135 cmNoETOYes5
FW5-90Occluding Wire5F90 cmNoETOYes5
IS4-135-10Therapeutic Infusion Catheter4F135 cm10 cmPebaxETOYesC1751, C17695
IS4-135-10-VTherapeutic Infusion Catheter4F135 cm10 cmPebaxETOYes1
IS4-135-20Therapeutic Infusion Catheter4F135 cm20 cmPebaxETOYesC1751, C17695
IS4-135-20-VValveTip4F135 cm20 cmPebaxETOYes1
IS4-135-30Therapeutic Infusion Catheter4F135 cm30 cmPebaxETOYesC1751, C17695
IS4-135-30-VValveTip4F135 cm30 cmPebaxETOYes1
IS4-135-40Therapeutic Infusion Catheter4F135 cm40 cmPebaxETOYesC1751, C17695
IS4-135-40-VValveTip4F135 cm40 cmPebaxETOYes1
IS4-135-5Therapeutic Infusion Catheter4F135 cm5 cmPebaxETOYesC1751, C17695
IS4-135-5-VValveTip4F135 cm5 cmPebaxETOYes1
IS4-135-50Therapeutic Infusion Catheter4F135 cm50 cmPebaxETOYesC1751, C17695
IS4-135-50-VValveTip4F135 cm50 cmPebaxETOYes1
IS4-45-10Therapeutic Infusion Catheter4F45 cm10 cmPebaxETOYesC1751, C17695
IS4-45-10-VValveTip4F45 cm10 cmPebaxETOYes1
IS4-45-20Therapeutic Infusion Catheter4F45 cm20 cmPebaxETOYesC1751, C17695
IS4-45-20-VValveTip4F45 cm20 cmPebaxETOYes1
IS4-90-10Therapeutic Infusion Catheter4F90 cm10 cmPebaxETOYesC1751, C17695
IS4-90-10-VValveTip4F90 cm10 cmPebaxETOYes1
IS4-90-20Therapeutic Infusion Catheter4F90 cm20 cmPebaxETOYesC1751, C17695
IS4-90-20-VValveTip4F90 cm20 cmPebaxETOYes1
IS4-90-30Therapeutic Infusion Catheter4F90 cm30 cmPebaxETOYesC1751, C17695
IS4-90-30-VValveTip4F90 cm30 cmPebaxETOYes1
IS4-90-40Therapeutic Infusion Catheter4F90 cm40 cmPebaxETOYesC1751, C17695
IS4-90-40-VValveTip4F90 cm40 cmPebaxETOYes1
IS4-90-5Therapeutic Infusion Catheter4F90 cm5 cmPebaxETOYesC1751, C17695
IS4-90-5-VValveTip4F90 cm5 cmPebaxETOYes1
IS4-90-50Therapeutic Infusion Catheter4F90 cm50 cmPebaxETOYesC1751, C17695
IS4-90-50-VValveTip4F90 cm50 cmPebaxETOYes1
IS5-135-10Therapeutic Infusion Catheter5F135 cm10 cmPebaxETOYes5
IS5-135-10-VValveTip5F135 cm10 cmPebaxETOYes1
IS5-135-20Therapeutic Infusion Catheter5F135 cm20 cmPebaxETOYes5
IS5-135-20-VValveTip5F135 cm20 cmPebaxETOYes1
IS5-135-30Therapeutic Infusion Catheter5F135 cm30 cmPebaxETOYes5
IS5-135-30-VValveTip5F135 cm30 cmPebaxETOYes1
IS5-135-40Therapeutic Infusion Catheter5F135 cm40 cmPebaxETOYes5
IS5-135-40-VValveTip5F135 cm40 cmPebaxETOYes1
IS5-135-5Therapeutic Infusion Catheter5F135 cm5 cmPebaxETOYes5
IS5-135-5-VValveTip5F135 cm5 cmPebaxETOYes1
IS5-135-50Therapeutic Infusion Catheter5F135 cm50 cmPebaxETOYes5
IS5-135-50-VValveTip5F135 cm50 cmPebaxETOYes1
IS5-45-10Therapeutic Infusion Catheter5F45 cm10 cmPebaxETOYes5
IS5-45-10-VValveTip5F45 cm10 cmPebaxETOYes1
IS5-45-20Therapeutic Infusion Catheter5F45 cm20 cmPebaxETOYes5
IS5-45-20-VValveTip5F45 cm20 cmPebaxETOYes1
IS5-90-10Therapeutic Infusion Catheter5F90 cm10 cmPebaxETOYes5
IS5-90-10-VValveTip5F90 cm10 cmPebaxETOYes1
IS5-90-20Therapeutic Infusion Catheter5F90 cm20 cmPebaxETOYes5
IS5-90-20-VValveTip5F90 cm20 cmPebaxETOYes1
IS5-90-30Therapeutic Infusion Catheter5F90 cm30 cmPebaxETOYes5
IS5-90-30-VValveTip5F90 cm30 cmPebaxETOYes1
IS5-90-40Therapeutic Infusion Catheter5F90 cm40 cmPebaxETOYes5
IS5-90-40-VValveTip5F90 cm40 cmPebaxETOYes1
IS5-90-5Therapeutic Infusion Catheter5F90 cm5 cmPebaxETOYes5
IS5-90-5-VValveTip5F90 cm5 cmPebaxETOYes1
IS5-90-50Therapeutic Infusion Catheter5F90 cm50 cmPebaxETOYes5
IS5-90-50-VValveTip5F90 cm50 cmPebaxETOYes1

View Fullscreen

Catalog NumberExpanded Family NameSterilizationLatex FreeHCPCS CodeShipping Box Qty
K12-00262Pulse Infusion KitETOYesNo Applicable Code20
K12-00263Pulse Infusion KitETOYesNo Applicable Code10
K12-00264Pulse Infusion KitETOYesNo Applicable Code10
K12-00462Pulse Infusion KitETOYesNo Applicable Code20
K12-00463Pulse Infusion KitETOYesNo Applicable Code20
