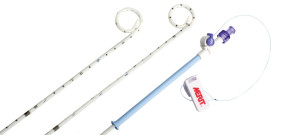

The ReSolve Biliary Locking Drainage Catheter is available in two different configurations – both with large holes – and offers up to 4X more drainage area for maximum drainage. The ReSolve Biliary also features a radiopaque marker band and non-radiopaque depth markers to facilitate fast and accurate placement, an atraumatic internal pigtail, and hydrophilic coating for smooth insertion and increased patient comfort. Its polyurethane material allows for long-term indwelling time.
The ReSolve+ Biliary Locking Drainage Catheter is MR Conditional
Non-clinical testing has demonstrated that the ReSolve+ Biliary Locking Drainage Catheter is MR Conditional. This device can be scanned safely in a patient, immediately after placement under the following conditions:
– Static Magnetic Field of 3 Tesla or less
– Maximum spatial gradient magnetic field of 4,000 gauss/cm (40 T/m)
– Maximum MR system reported, whole body averaged specific absorption rate (SAR) of 4-W/kg in the First Level Controlled Operating Mode of operation for the MR system
Under the scan conditions defined above, the ReSolve+ Biliary Locking Drainage Catheter is expected to produce a maximum temperature rise of 2.3°C after 15 minutes of continuous scanning.
The maximum artifact size as seen on the gradient echo pulse sequence at 3-Tesla extends approximately 2-mm relative to the size of the shape of the ReSolve+ Biliary Locking Drainage Catheter.
Our ReSolve Biliary Locking Drainage Catheter is designed for FAST, UNIMPEDED DRAINAGE and offers up to 4X the drainage area, with multiple LARGE HOLES and different size configurations. Additional benefits include depth markers and a radiopaque marker band for FAST AND ACCURATE POSITIONING, an atraumatic pigtail designed to reduce the potential for damaging the duodenum, and its polyurethane material allows for long-term indwelling time.
Two drainage hole patterns to accommodate multiple lesion locations and varying patient anatomy
Unique locking mechanism to prevent movement.
Repositioning tool to unlock and reposition catheter.
Radiopaque marker band helps with fast and accurate positioning.
The different hole patterns of the ReSolve Biliary Locking Drainage Catheter provide targeted drainage of both distal lesions (RBDC option) and proximal lesions (RBC option).
|Catalog Number||French Size (F)||Catheter Length (cm)||Pigtail To Distal Drainage Hole||Pigtail To Marker Band||Tip Configuration||Radiopaque Marker Band||Guide Wire Compatibility||Drainage Holes||Hydrophilic Coating||Label Claim - MR Safety||HCPCS Code||GS1||GTIN Unit||GTIN Carton||GTIN Shipper|
|RBC-10-038||10F||40 cm||Pigtail||Marker Band||0.038" (0.97 mm)||17 Drainage Holes||Hydrophilic Coating||C1729||01280||00884450012802||10884450012809||20884450012806|
|RBC-12-038||12F||40 cm||5 cm||14 cm||Pigtail||Marker Band||18 Drainage Holes||Yes||MR Conditional||C1729||31324||00884450313244||10884450313241||20884450313248|
|RBC-14-038||14F||40 cm||Pigtail||Marker Band||0.038" (0.97 mm)||18 Drainage Holes||Hydrophilic Coating||C1729||01282||00884450012826||10884450012823||20884450012820|
|RBC-8-038||8.5F||40 cm||Pigtail||Marker Band||0.038" (0.97 mm)||17 Drainage Holes||Hydrophilic Coating||C1729||01279||00884450012796||10884450012793||20884450012790|
|RBDC-10-038||10F||40 cm||2 cm||11 cm||Pigtail||Marker Band||17 Drainage Holes||Yes||MR Conditional||C1729||31327||00884450313275||10884450313272||20884450313279|
|RBDC-12-038||12F||40 cm||Pigtail||Marker Band||0.038" (0.97 mm)||18 Drainage Holes||Hydrophilic Coating||C1729||05750||00884450057506||10884450057503||20884450057500|
|RBDC-14-038||14F||40 cm||2 cm||11 cm||Pigtail||Marker Band||18 Drainage Holes||Yes||MR Conditional||C1729||31329||00884450313299||10884450313296||20884450313293|
|RBDC-8-038||8.5F||40 cm||2 cm||11 cm||Pigtail||Marker Band||17 Drainage Holes||Yes||MR Conditional||C1729||31330||00884450313305||10884450313302||20884450313309|
