Features & Benefits

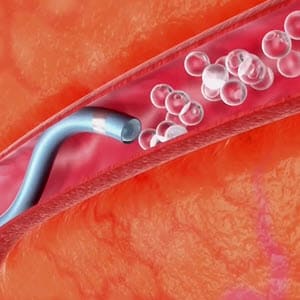

Merit offers a line of microcatheters to meet your embolization needs. Designed to deploy coils up to .018” and embolics up to and including 900 µm, Merit Maestro’s swan neck design helps seat the catheter in the vessel reducing the recoiling effect of the embolic agent as it is introduced. Other features include: flexible distal region – 20 cm designed for atraumatic vessel entry, hydrophilic coating for smooth traction through tortuous anatomy, and radiopaque marker for easy identification of distal tip of catheter.
A Multipurpose Microcatheter designed for use in peripheral and coronary vasculature.
Flexible Distal Region 20 cm designed for atraumatic vessel entry.
Hydrophilic Coating distal 80 cm for smooth traction through tortuous anatomy.
Radiopaque Marker for easy identification of distal tip of catheter. Located 1.3 mm proximal to the distal tip.

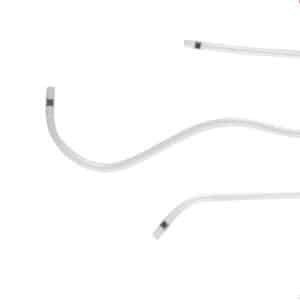

Swan Neck Design for high performance of preshaped distal end.
Once the Swan Neck catheter tip is in position in the vessel, the secondary curve helps seat the catheter in the vessel reducing the recoiling effect of the embolic agent as it is introduced.
Documents
Ordering Information
| Catalog Number | Expanded Family Name | Proximal French Size (F) | Expanded Family Name2 | Distal French Size (F) | Catheter Usable Length | Catheter Tip Shape | Catheter Inside Diameter | Max Guide Wire | Guide Cath Min ID | Diameter (O.D.) of Guide Wire | Guide Wire Tip Shape | Guide Wire Configuration | Guide Wire Shapeable Tip Length | Guide Wire Surface Coating | Sterilization | Latex Free | HCPCS Code | Shipping Box Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 28MC2111045 | 2.8F | 2.1F | 110 cm (43") | 45° | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC2111045-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.1F | 45° | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC21110SN | 2.8F | 2.1F | 110 cm (43") | Swan Neck | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC21110SN-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.1F | Swan Neck | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC21110ST | 2.8F | 2.1F | 110 cm (43") | Straight | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC21110ST-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.1F | Straight | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC2113045 | 2.8F | 2.1F | 130 cm (51") | 45° | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC2113045-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.1F | 45° | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC21130SN | 2.8F | 2.1F | 130 cm (51") | Swan Neck | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC21130SN-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.1F | Swan Neck | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC21130ST | 2.8F | 2.1F | 130 cm (51") | Straight | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC21130ST-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.1F | Straight | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1187, C1769 | 1 | |
| 28MC2115045 | 2.8F | 2.1F | 150 cm (59") | 45° | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC2115045-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.1F | 45° | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1187, C1769 | 1 | |
| 28MC21150SN | 2.8F | 2.1F | 150 cm (59") | Swan Neck | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC21150SN-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.1F | Swan Neck | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1187, C1769 | 1 | |
| 28MC21150ST | 2.8F | 2.1F | 150 cm (59") | Straight | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC21150ST-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.1F | Straight | 0.018" (0.46 mm) | 0.016" (0.41 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1187, C1769 | 1 | |
| 28MC2411045 | 2.8F | 2.4F | 110 cm (43") | 45° | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC2411045-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | 45° | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC2411045-W | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | 45° | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24110SN | 2.8F | 2.4F | 110 cm (43") | Swan Neck | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC24110SN-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Swan Neck | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24110ST | 2.8F | 2.4F | 110 cm (43") | Straight | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC24110ST-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Straight | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24110ST-W | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Straight | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC2413045 | 2.8F | 2.4F | 130 cm (51") | 45° | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC2413045-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | 45° | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC2413045-W | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | 45° | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24130SN | 2.8F | 2.4F | 130 cm (51") | Swan Neck | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC24130SN-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Swan Neck | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24130SN-W | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Swan Neck | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24130ST | 2.8F | 2.4F | 130 cm (51") | Straight | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC24130ST-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Straight | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24130ST-W | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Straight | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC2415045 | 2.8F | 2.4F | 150 cm (59") | 45° | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC2415045-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | 45° | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC2415045-W | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | 45° | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24150SN | 2.8F | 2.4F | 150 cm (59") | Swan Neck | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC24150SN-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Swan Neck | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24150SN-W | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Swan Neck | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24150ST | 2.8F | 2.4F | 150 cm (59") | Straight | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC24150ST-I | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Straight | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC24150ST-W | Merit Maestro® Microcatheter | 2.8F | with True Form™ Reshapable Guide Wire | 2.4F | Straight | 0.020" (0.52 mm) | 0.018" (0.46 mm) | 0.040" (1.02 mm) | 0.014" (0.36 mm) | Straight Tip | Standard | 2.0 cm | Hydrophilic Coated | ETO | Yes | C1887, C1769 | 1 | |
| 28MC2811045 | 2.8F | 2.8F | 110 cm (43") | 45° | 0.024" (0.62 mm) | 0.021" (0.53 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC28110SN | 2.8F | 2.8F | 110 cm (43") | Swan Neck | 0.024" (0.62 mm) | 0.021" (0.53 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC28110ST | 2.8F | 2.8F | 110 cm (43") | Straight | 0.024" (0.62 mm) | 0.021" (0.53 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC2813045 | 2.8F | 2.8F | 130 cm (51") | 45° | 0.024" (0.62 mm) | 0.021" (0.53 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC28130SN | 2.8F | 2.8F | 130 cm (51") | Swan Neck | 0.024" (0.62 mm) | 0.021" (0.53 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC28130ST | 2.8F | 2.8F | 130 cm (51") | Straight | 0.024" (0.62 mm) | 0.021" (0.53 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC2815045 | 2.8F | 2.8F | 150 cm (59") | 45° | 0.024" (0.62 mm) | 0.021" (0.53 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC28150SN | 2.8F | 2.8F | 150 cm (59") | Swan Neck | 0.024" (0.62 mm) | 0.021" (0.53 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 28MC28150ST | 2.8F | 2.8F | 150 cm (59") | Straight | 0.024" (0.62 mm) | 0.021" (0.53 mm) | 0.040" (1.02 mm) | C1887 | ||||||||||
| 29MC2911045 | 2.9F | 2.9F | 110 cm (43") | 45° | 0.027" (0.69 mm) | 0.021" (0.53 mm) | 0.042" (1.07 mm) | C1887 | ||||||||||
| 29MC29110SN | 2.9F | 2.9F | 110 cm (43") | Swan Neck | 0.027" (0.69 mm) | 0.021" (0.53 mm) | 0.042" (1.07 mm) | C1887 | ||||||||||
| 29MC29110ST | 2.9F | 2.9F | 110 cm (43") | Straight | 0.027" (0.69 mm) | 0.021" (0.53 mm) | 0.042" (1.07 mm) | C1887 | ||||||||||
| 29MC2913045 | 2.9F | 2.9F | 130 cm (51") | 45° | 0.027" (0.69 mm) | 0.021" (0.53 mm) | 0.042" (1.07 mm) | C1887 | ||||||||||
| 29MC29130SN | 2.9F | 2.9F | 130 cm (51") | Swan Neck | 0.027" (0.69 mm) | 0.021" (0.53 mm) | 0.042" (1.07 mm) | C1887 | ||||||||||
| 29MC29130ST | 2.9F | 2.9F | 130 cm (51") | Straight | 0.027" (0.69 mm) | 0.021" (0.53 mm) | 0.042" (1.07 mm) | C1887 | ||||||||||
| 29MC2915045 | 2.9F | 2.9F | 150 cm (59") | 45° | 0.027" (0.69 mm) | 0.021" (0.53 mm) | 0.042" (1.07 mm) | C1887 | ||||||||||
| 29MC29150SN | 2.9F | 2.9F | 150 cm (59") | Swan Neck | 0.027" (0.69 mm) | 0.021" (0.53 mm) | 0.042" (1.07 mm) | C1887 | ||||||||||
| 29MC29150ST | 2.9F | 2.9F | 150 cm (59") | Straight | 0.027" (0.69 mm) | 0.021" (0.53 mm) | 0.042" (1.07 mm) | C1887 |
