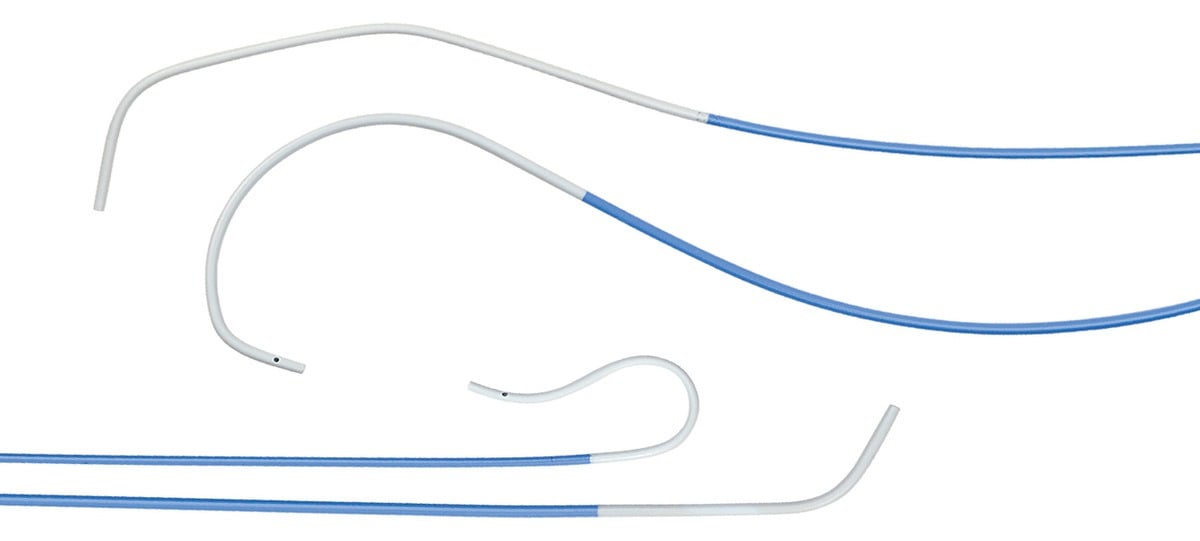

Learn More About the Performa® Angiographic Catheter

Features & Benefits

Merit Medical’s popular Performa Catheters are now available in 125 cm length for Interventional Radiologists performing transradial peripheral procedures.

FEATURES & BENEFITS

  • 125cm catheter length for easy navigation to the target vessel via radial artery
  • Winged polycarbonate hub for easy manipulation
  • Wire braided for torque, stability, and control
  • Shaft material provides thermal stability at body temperature
  • Large inner lumens to facilitate contrast injection
  • Soft bumper tip provides atraumatic positioning within the vessel ostium

INNER LUMEN SIZES

  • 4F .042” (1.07mm)
  • 5F .046” (1.17mm)
  • 6F .054” (1.37mm)

Ordering Information

View Fullscreen

Catalog NumberBraidedFrench Size (F)LengthLabel Short DescriptionCatheter ShapeInternal Diameter# Side PortsRecommended Guide WireTip LengthHCPCS Code
PV411038PIGBraided4F110 cmCP STRStraight Pigtail0.042" (1.07 mm)5 Side Ports0.038" (0.97 mm)6.5 cm
PV412538BERNBraided4F125 cmBERN 1Berenstein0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV412538MP1Braided4F125 cmMP A1Multipurpose A10.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)5.8 cm
PV412538MP2SHBraided4F125 cmMP A2Multipurpose A20.042" (1.07 mm)2 Side Ports0.038" (0.97 mm)5.8 cm
PV412538U1Braided4F125 cmULTIMATE 1Ultimate 10.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV412538U2Braided4F125 cmULTIMATE 2Ultimate 20.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV412538U3Braided4F125 cmULTIMATE 3Ultimate 30.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV412538U4Braided4F125 cmULTIMATE 4-T40Ultimate4-T400.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV412538U45Braided4F125 cmULTIMATE 4-T45Ultimate4-T450.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV413538BERNBraided4F135 cmBERN 1Berenstein0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV415038BERNBraided4F150 cmBERN 1Berenstein0.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV415038U1Braided4F150 cmULTIMATE 1Ultimate 10.042" (1.07 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV511038FH3Braided5F110 cmFH 3FH30.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV512538BERNBraided5F125 cmBERN 1Berenstein0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV512538COB2Braided5F125 cmCB 2Cobra 20.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)9.0 cm
PV512538FH3Braided5F125 cmFH 3FH30.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV512538MP1Braided5F125 cmMP A1Multipurpose A10.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)5.8 cm
PV512538MP2SHBraided5F125 cmMP A2Multipurpose A20.046" (1.17 mm)2 Side Ports0.038" (0.97 mm)5.8 cm
PV512538PIGBraided5F125 cmC PIGStraight Pigtail0.046" (1.17 mm)5 Side Ports0.038" (0.97 mm)7.5 cm
PV512538RENBraided5F125 cmRADIAL RENALRadial Renal0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)4.0 cm
PV512538U1Braided5F125 cmULTIMATE 1Ultimate 10.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV512538U1SHBraided5F125 cmULTIMATE 1Ultimate 10.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm
PV512538U2Braided5F125 cmULTIMATE 2Ultimate 20.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV512538U2SHBraided5F125 cmULTIMATE 2Ultimate 20.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm
PV512538U3Braided5F125 cmULTIMATE 3Ultimate 30.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV512538U3SHBraided5F125 cmULTIMATE 3Ultimate 30.046" (1.17 mm)2 Side Ports0.038" (0.97 mm)2.0 cm
PV512538U4Braided5F125 cmULTIMATE 4-T40Ultimate4-T400.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV512538U45Braided5F125 cmULTIMATE 4-T45Ultimate4-T450.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV512538U45SHBraided5F125 cmULTIMATE 4-T45Ultimate4-T450.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm
PV512538U4SHBraided5F125 cmULTIMATE 4-T40Ultimate4-T400.046" (1.17 mm)1 Side Port0.038" (0.97 mm)2.0 cm
PV513538BERNBraided5F135 cmBERN 1Berenstein0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV513538HH1Braided5F135 cmHH 1Headhunter 10.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV513538U1Braided5F135 cmULTIMATE 1Ultimate 10.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV515038BERNBraided5F150 cmBERN 1Berenstein0.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV515038U1Braided5F150 cmULTIMATE 1Ultimate 10.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)No Applicable Code
PV612538CARN10SBraided6F125 cmCPC-10SCPC-10S0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)
PV612538MP2SHBraided6F125 cmMP A2Multipurpose A20.054" (1.37 mm)2 Side Ports0.038" (0.97 mm)5.8 cm
PV612538PIGNon-Braided6F125 cmC PIGStraight Pigtail0.059" (1.50 mm)5 Side Ports0.038" (0.97 mm)8.0 cm
PV612538U1Braided6F125 cmULTIMATE 1Ultimate 10.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV612538U2Braided6F125 cmULTIMATE 2Ultimate 20.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV612538U3Braided6F125 cmULTIMATE 3Ultimate 30.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV612538U4Braided6F125 cmULTIMATE 4-T40Ultimate4-T400.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV612538U45Braided6F125 cmULTIMATE 4-T45Ultimate4-T450.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)2.0 cm
PV67538CARN10SBraided6F75 cmCPC-10SCPC-10S0.054" (1.37 mm)0 Side Ports0.038" (0.97 mm)
PVI511038FH3Braided5F110 cmFH 3FH30.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)3.0 cmNo Applicable Code
PVI512538FH3Braided5F125 cmFH 3FH30.046" (1.17 mm)0 Side Ports0.038" (0.97 mm)3.0 cmNo Applicable Code
