The Choice Is Clear
The PhD™ Hemostasis Valve simplifies procedures with an easy one-handed, push-and-release mechanism, freeing your other hand to deliver interventional equipment. Dual-seal technology provides easy bleedback control, minimizing patient blood loss.
-

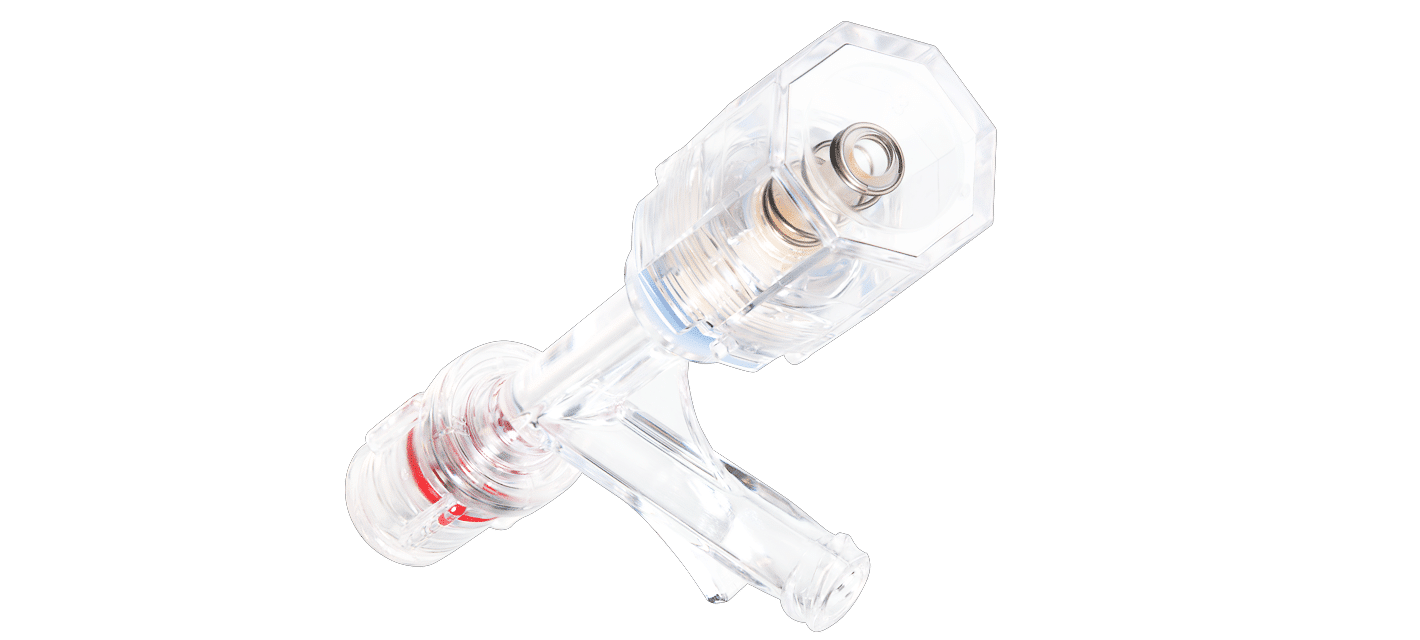

Clear polycarbonate body
-
Tapered cap guides devices into valve lumen
-
Push-and-release bleedback seal
-
Silicone Compression seal
-
Airless rotator facilitates valve movement
-
Accommodates devices up to 7.3F (ID 0.096″ or 2.44 mm)
-
OPTIONAL 9″ Sidearm Bonded Extension Tubing
Documents
Ordering Information
Box Quantity:
• MAP80X parts: 25
• MAP85X parts: 20
| Catalog Number | Trademark | Component 1 | Component 2 | Component 3 | Component 4 | Size (ID) | Material | Valve Material | Sterilization | Latex Free | Shipping Box Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MAP800 | PhD™ | PhD™ | Hemostasis Valve | 7.3F (0.096") | Polycarbonate | Polyisoprene/Silicone | ETO | Yes | 25 | ||
| MAP801 | PhD™ | MAP with PhD™ | Hemostasis Valve with | Metal Guide Wire Insertion | Tool | 7.3F (0.096") | Polycarbonate | Polyisoprene/Silicone | ETO | Yes | 25 |
| MAP802 | PhD™ | MAP with PhD™ | Hemostasis Valve with | Metal Guide Wire Insertion | Tool, Torque Device | 7.3F (0.096") | Polycarbonate | Polyisoprene/Silicone | ETO | Yes | 25 |
| MAP803 | PhD™ | MAP with PhD™ | Hemostasis Valve with | Plastic Guide Wire Insertion | Tool | 7.3F (0.096") | Polycarbonate | Polyisoprene/Silicone | ETO | Yes | 25 |
| MAP804 | PhD™ | MAP with PhD™ | Hemostasis Valve with | Plastic Guide Wire Insertion | Tool, Torque Device | 7.3F (0.096") | Polycarbonate | Polyisoprene/Silicone | ETO | Yes | 25 |
| MAP850 | PhD™ | PhD™ | Hemostasis Valve with | Bonded Extension Tubing | 7.3F (0.096") | Polycarbonate | ETO | Yes | 20 | ||
| MAP851 | PhD™ | PhD™ | Hemostasis Valve with | Bonded Extension Tubing | Insertion Tool | 7.3F (0.096") | Polycarbonate | Polyisoprene/Silicone | ETO | Yes | 20 |
| MAP852 | PhD™ | PhD™ | Hemostasis Valve with | Bonded Extension Tubing | Insertion Tool, Torque Device | 7.3F (0.096") | Polycarbonate | Polyisoprene/Silicone | ETO | Yes | 20 |
| MAP853 | PhD™ | PhD™ | Hemostasis Valve with | Bonded Extension Tubing | Insertion Tool | 7.3F (0.096") | Polycarbonate | Polyisoprene/Silicone | ETO | Yes | 20 |
| MAP854 | PhD™ | PhD™ | Hemostasis Valve with | Bonded Extension Tubing | Insertion Tool, Torque Device | 7.3F (0.096") | Polycarbonate | Polyisoprene/Silicone | ETO | Yes | 20 |
