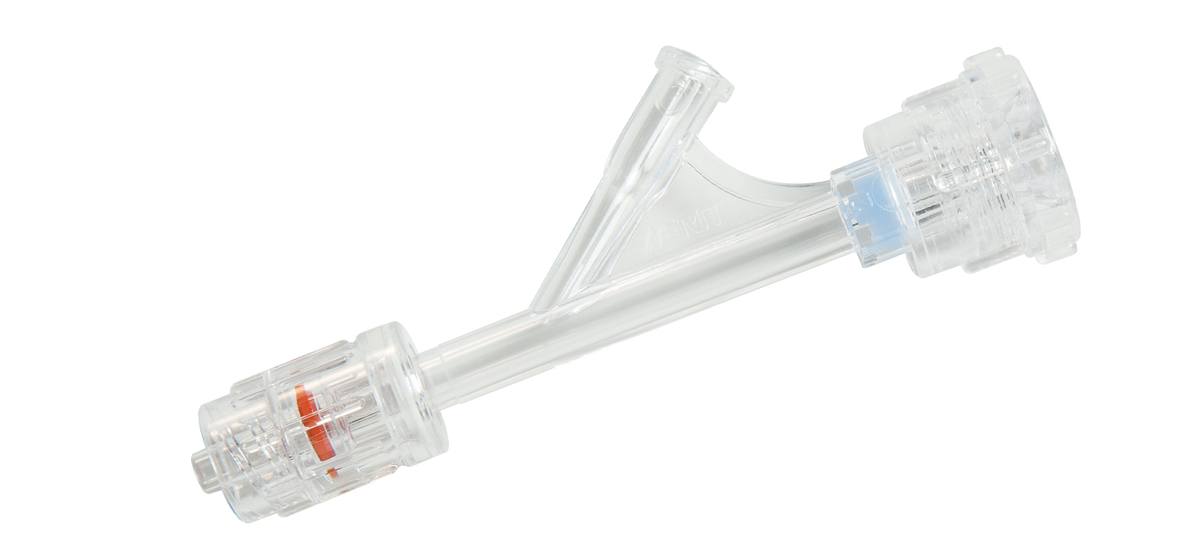

Learn More About the Access PLUS Hemostasis Valve
Features & Benefits
The AccessPLUS large bore hemostasis valve is a second generation device that maximizes the “sweet spot” or optimal sealing surface for blood control.
Minimizing blood loss and optimizing control of interventional devices.
AccessPLUS™
The AccessPLUS large bore hemostasis valve is a second generation device that maximizes the “sweet spot” or optimal sealing surface for blood control.
SPECIFICATIONS
Inner lumen: .120” (3.1mm)
Body material: Polycarbonate
DoublePlay™
Two large bore hemostasis ports allow easier manipulation and control of interventional devices during “kissing balloon” techniques.
SPECIFICATIONS
Inner lumen: .120” (3.1mm)
Body material: Polycarbonate
Passage®
The Passage represents the first of Merit’s standard line of hemostasis valves. It accommodates devices up to 7.5 French.
SPECIFICATIONS
Inner lumen: .097” (2.5mm)
Body material: Polycarbonate
Honor®
This is the latest in Merit’s hemostasis valve technology. The easy push-pull mechanism of the Honor Hemostasis Valve allows single-handed manipulation to open and close the valve while introducing devices into the vasculature. The hemostasis seal minimizes blood loss while giving the clinician the ability to manipulate interventional devices.
SPECIFICATIONS
Inner lumen: .094” (2.4mm)
Body material: Polycarbonate
MBA™- Merit’s Bleedback Alternative™
A premier hemostasis valve which features two seals. A conventional “touhy” silicone hemostasis valve provides security that the interventional device will stay in place. The secondary slit seal delivers a virtually bloodless procedure.
SPECIFICATIONS
Inner lumen: .118” (3mm)
Body material: Polycarbonate
FLO30™
Merit Medical’s FLO30™ hemostasis valve is a single-use, proprietary valved adapter which provides a leak-proof seal during interventional and diagnostic procedures.
SPECIFICATIONS
Inner lumen: .118” (3mm)
Body material: Polycarbonate
Merit Accessory Pak
In response to the growing demand for minimized blood loss, reduced exposure to blood, and easy to use devices, Merit is the first to make available a full line of hemostasis valves with unequaled options and sizes necessary to meet your procedural demands and professional preferences.
Hemostasis valves and accessories are also available with any Merit inflation device.
Kits are available in standard catalog numbers as well as custom kit configurations
BasixTOUCH™
The BasixTOUCH™ Inflation device is an innovative device with an ergonomic handle that enables one-handed preparation and priming, 35 atm pressure capability and 30 mL fluid capacity. Features a quick-release handle for easy release, even from high-pressure inflations, accelerating deflation time. Reaches high pressures rapidly—with less
than three rotations of the handle. Comes with high pressure stopcock.
Blue Diamond®
The 30 atm Blue Diamond inflation device combines the accuracy of a digital device with the simplicity of analogue systems. Features include one-button functionality for simplicity, a large dial face with oversized digits to enhance visibility, and last inflation marks to recall the highest pressure of the previous inflation. Comes with 13” (33 cm) extension tubing and 3-way stopcock. Packaged 5 units per box, 4 boxes per case.
BasixCOMPAK™
The BasixCOMPAK is a 30 atm analogue inflation device that features an angled gauge for better viewing of pressure readings and a luminescent dial for low-light procedures.
BasixTOUCH40™
The BasixTPOUCH40 has a 40 ATM pressure capacity allows inflation of high pressure interventional balloons. 30 mL syringe barrel accommodates additional fluid for large balloons.
Large Bore 9 French Inner Lumen
Found in the MBA, Access-9, AccessPLUS, DoublePlay, and FLO30 designs.
Airless Rotator
A proprietary airless rotator minimizes the possibility of trapped air.
Ordering Information
| Catalog Number | Trademark | Component 1 | Component 2 | Component 3 | Size (ID) | Material | Valve Material | Sterilization | HCPCS Code |
|---|---|---|---|---|---|---|---|---|---|
| MAP150 | AccessPLUS™ | AccessPLUS™ | Hemostasis Valve | 9F (0.118") | Polycarbonate | Silicone | ETO | No Applicable Code | |
| MAP151 | AccessPLUS™ | MAP with Access PLUS™, | Metal Insertion Tool | 9F (0.118") | Polycarbonate | Silicone | ETO | ||
| MAP152 | AccessPLUS™ | MAP with Access PLUS™, | Metal Insertion Tool, | Torque Device | 9F (0.118") | Polycarbonate | Silicone | ETO | |
| MAP153 | AccessPLUS™ | MAP with Access PLUS™, | Plastic Insertion Tool | 9F (0.118") | Polycarbonate | Silicone | ETO | No Applicable Code | |
| MAP154 | AccessPLUS™ | MAP with Access PLUS™, | Plastic Insertion Tool, | Torque Device | 9F (0.118") | Polycarbonate | Silicone | ETO | No Applicable Code |
