Performa Multipack™ Angiographic Cardiology Catheters
Request Information
Features & Benefits
Introducing Merit Medical’s Performa line of Diagnostic Cardiology Catheters, designed with all the torque you need, improved shaft strength for better pushability and large inner lumens for increased flow rates. The Performa line of catheters will help you reach your goal of excellent imaging in today’s cardiology environment.
Nylon Material
- Kink resistant
- Optimal surface smoothness
- Thermal stability at body temperature
- Thin wall design for improved flow rate
Radiopacity
- Good shaft visualization under fluoroscopy
- Tip opacity ensures accurate placement and visualization
Winged Polycarbonate Hub
- Enhanced handling and control
Wire Braid Design
- Greater torque for maximum control
- Improved longitudinal stability
- High degree of maneuverability
- Provides superior pushability

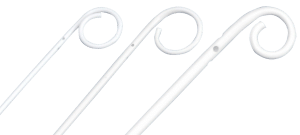

Tip Designs
- Excellent tip memory
- Re-forms accurately time after time
Bumper Tip
- Added softness to the 4F Performa catheter line for patient safety
Flat Wire Braid
- Increased torque
- Greater stability
- Improved kink resistance
4F Performa Catheter Line
- Accepts 0.038” (0.97 mm) guide wire for physician convenience
- Bumper tip softness added for safe placement of tip into ostium
- Large inner diameter 0.042” (1.07 mm) provides excellent flow rates
Inner Lumen Sizes
- 4F 0.042” (1.07 mm)
- 5F 0.046” (1.17 mm)
- 5F 0.052” (1.32 mm) high flow
- 6F 0.054” (1.37 mm)
- 6F 0.059” (1.49 mm) high flow
- Yields higher flow rates at lower pressures
- Superior guide wire trackability
Strain Relief
- Increased strength at catheter/hub interface
- Color coded for easy identification
Documents
Discover more about the Performa Multipack™ Angiographic Cardiology Catheters by reviewing the brochures and Instructions for Use.
Current IFUs
Current Brochures
Order Information
View All Details
| Catalog Number | Expanded Family Name | Label Peelable Line 1 | Catheter Shape (1) | Catheter Shape (2) | French Size (F) | French Size (mm) | Catheter Body Material | # Side Ports | Braided | Maximum Pressure Limit PSI(k Pa) | Flow 1 (m L/sec) | Pressure at Given Flow Rate | Flow Rate Achieved @ 10.4 cp | Bumper Tip | Sterilization | Latex Free | HCPCS Code | Shipping Box Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1628-024 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-024 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-027 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-027 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-030 | Diagnostic Cardiology (MP) | 5F, MOD AR, JL 4.0, Performa® | MOD AMP Right | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 1628-030 | Diagnostic Cardiology (MP) | 5F, MOD AR, JL 4.0, Performa® | MOD AMP Right | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 1628-051 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-051 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-052K | Diagnostic Cardiology (MP) | 5F, JR 3.5, JL 3.5, Performa® | JR3.5 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 1628-052K | Diagnostic Cardiology (MP) | 5F, JR 3.5, JL 3.5, Performa® | JR3.5 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 1628-053 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-053 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-055 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-055 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-057 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-057 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-058 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-058 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-075 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-075 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-076 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-076 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-077 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-077 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-089 | Diagnostic Cardiology (MP) | 5F, STR PIG, JR 3.5 ST, JL 4.0, Performa® | Straight Pigtail | JR3.5 ST | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 1628-089 | Diagnostic Cardiology (MP) | 5F, STR PIG, JR 3.5 ST, JL 4.0, Performa® | Straight Pigtail | JR3.5 ST | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 1628-119 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-119 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-120 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-120 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-127 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-127 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-129 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-129 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-130 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-130 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-131 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-131 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-135 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-135 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-136 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 0 | ||||||||||||||
| 1628-136 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 0 | ||||||||||||||
| 1628-142 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-142 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-143 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-143 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-147 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-147 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-153 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-153 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-154 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-154 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-156 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-156 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-162 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-162 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-170 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-170 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-172 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-172 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-173 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-173 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-174 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-174 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-175 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-175 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-177 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-177 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-185 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-185 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-186 | Diagnostic Cardiology (MP) | 5F, MIV RAD PIG, JR 4.0, JL 3.5, Performa® | MIV RADIAL PIG ST | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 6 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 1628-186 | Diagnostic Cardiology (MP) | 5F, MIV RAD PIG, JR 4.0, JL 3.5, Performa® | MIV RADIAL PIG ST | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 6 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 1628-188 | Diagnostic Cardiology (MP) | 5F, JR 4.0, JL 3.5, Performa® | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 1628-188 | Diagnostic Cardiology (MP) | 5F, JR 4.0, JL 3.5, Performa® | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 1628-195 | Diagnostic Cardiology (MP) | 5F, PIG 145, JR 4.0, JL 3.5, Performa® | 145° Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 28 mL/sec | 1132 psi (80 kg/cm²)@28mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 1628-195 | Diagnostic Cardiology (MP) | 5F, PIG 145, JR 4.0, JL 3.5, Performa® | 145° Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 28 mL/sec | 1132 psi (80 kg/cm²)@28mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 1628-196 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-196 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-226 | Diagnostic Cardiology (MP) | 5F, PIG 145, JR 5.0, JL 3.5, Performa® | 145° Pigtail | JR5.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 1628-226 | Diagnostic Cardiology (MP) | 5F, PIG 145, JR 5.0, JL 3.5, Performa® | 145° Pigtail | JR5.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 1628-273 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 1628-273 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 5100381ULT1K | Diagnostic Cardiology (MP) | 5F, Ultimate 1, Performa® | Ultimate 1 | 5F | (1.7 mm) | Pebax Nylon | 1 Side Port | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 5100381ULT1K | Diagnostic Cardiology (MP) | 5F, Ultimate 1, Performa® | Ultimate 1 | 5F | (1.7 mm) | Pebax Nylon | 1 Side Port | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 5100381ULT4-T40K | Diagnostic Cardiology (MP) | 5F, Ultimate 4-T40, Performa® | Ultimate 4-T40 | 5F | (1.7 mm) | Pebax Nylon | 1 Side Port | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 5100381ULT4-T40K | Diagnostic Cardiology (MP) | 5F, Ultimate 4-T40, Performa® | Ultimate 4-T40 | 5F | (1.7 mm) | Pebax Nylon | 1 Side Port | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 510038ULT1K | Diagnostic Cardiology (MP) | 5F, Ultimate 1, Performa® | Ultimate 1 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 510038ULT1K | Diagnostic Cardiology (MP) | 5F, Ultimate 1, Performa® | Ultimate 1 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 510038ULT2K | Diagnostic Cardiology (MP) | 5F, Ultimate 2, Performa® | Ultimate 2 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 510038ULT2K | Diagnostic Cardiology (MP) | 5F, Ultimate 2, Performa® | Ultimate 2 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 510038ULT4-T40K | Diagnostic Cardiology (MP) | 5F, Ultimate 4, Performa® | Ultimate 4 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 510038ULT4-T40K | Diagnostic Cardiology (MP) | 5F, Ultimate 4, Performa® | Ultimate 4 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 510038ULT4-T45K | Diagnostic Cardiology (MP) | 5F, Ultimate 4-T45, Performa® | Ultimate 4-T45 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 510038ULT4-T45K | Diagnostic Cardiology (MP) | 5F, Ultimate 4-T45, Performa® | Ultimate 4-T45 | 5F | (1.7 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1050 psi (7240 kPa) | 15 mL/sec | 940 psi (66 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | 5 | ||
| 6100381ULT4-T40K | Diagnostic Cardiology (MP) | 6F, Ultimate 4-T40, Performa® | Ultimate 4-T40 | 6F | (2.0 mm) | Pebax Nylon | 1 Side Port | Multipack | 1200 psi (8274 kPa) | 27 mL/sec | 1170 psi (82 kg/cm²)@27mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 6100381ULT4-T40K | Diagnostic Cardiology (MP) | 6F, Ultimate 4-T40, Performa® | Ultimate 4-T40 | 6F | (2.0 mm) | Pebax Nylon | 1 Side Port | Multipack | 1200 psi (8274 kPa) | 27 mL/sec | 1170 psi (82 kg/cm²)@27mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 610038ULT1K | Diagnostic Cardiology (MP) | 6F, Ultimate 1, Performa® | Ultimate 1 | 6F | (2.0 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1200 psi (8274 kPa) | 27 mL/sec | 1170 psi (82 kg/cm²)@27mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 610038ULT1K | Diagnostic Cardiology (MP) | 6F, Ultimate 1, Performa® | Ultimate 1 | 6F | (2.0 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1200 psi (8274 kPa) | 27 mL/sec | 1170 psi (82 kg/cm²)@27mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 7440-J9 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7440-J9 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7440-J9K | Diagnostic Cardiology (MP) | 4F, JR 4.0, JL 4.0, Performa® | JR4.0 | 4F | (1.3 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1200 psi (8274 kPa) | 15 mL/sec | 1163 psi (82 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 7440-J9K | Diagnostic Cardiology (MP) | 4F, JR 4.0, JL 4.0, Performa® | JR4.0 | 4F | (1.3 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1200 psi (8274 kPa) | 15 mL/sec | 1163 psi (82 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 7440-K1 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7440-K1 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7440-Q7 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7440-Q7 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7440-Q8 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7440-Q8 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7440-Q9 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7440-Q9 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7440-Q9K | Diagnostic Cardiology (MP) | 4F, JR 4.0, JL 3.5, Performa® | JR4.0 | 4F | (1.3 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1200 psi (8274 kPa) | 15 mL/sec | 1163 psi (82 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 7440-Q9K | Diagnostic Cardiology (MP) | 4F, JR 4.0, JL 3.5, Performa® | JR4.0 | 4F | (1.3 mm) | Pebax Nylon | 0 Side Ports | Multipack | 1200 psi (8274 kPa) | 15 mL/sec | 1163 psi (82 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | |||
| 7445-G6 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-G6 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-G8 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-G8 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-H1 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-H1 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-H2 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-H2 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-H7 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-H7 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-J1 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-J1 | Diagnostic Custom Cardiology (MPLUS) | ETO | Yes | 5 | ||||||||||||||
| 7445-J2 | Diagnostic Cardiology (MP) | 6F, STR PIG, JR 5.0, JL 3.5, Performa® | Straight Pigtail | JR5.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7445-J2 | Diagnostic Cardiology (MP) | 6F, STR PIG, JR 5.0, JL 3.5, Performa® | Straight Pigtail | JR5.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7445-J3 | Diagnostic Cardiology (MP) | 6F, PIG 145, JR 5.0, JL 3.5, Performa® | 145° Pigtail | JR5.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7445-J3 | Diagnostic Cardiology (MP) | 6F, PIG 145, JR 5.0, JL 3.5, Performa® | 145° Pigtail | JR5.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-10K | Diagnostic Cardiology (MP) | 5F, STR PIG, JR 4.0, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-10K | Diagnostic Cardiology (MP) | 5F, STR PIG, JR 4.0, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-13 | Diagnostic Cardiology (MP) | 5F, STR PIG, JR 4.0, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-13 | Diagnostic Cardiology (MP) | 5F, STR PIG, JR 4.0, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-23 | Diagnostic Cardiology (MP) | 5F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-23 | Diagnostic Cardiology (MP) | 5F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-53 | Diagnostic Cardiology (MP) | 5F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 28 mL/sec | 1132 psi (80 kg/cm²)@28mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-53 | Diagnostic Cardiology (MP) | 5F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 28 mL/sec | 1132 psi (80 kg/cm²)@28mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-53K | Diagnostic Cardiology (MP) | 5F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 28 mL/sec | 1132 psi (80 kg/cm²)@28mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-53K | Diagnostic Cardiology (MP) | 5F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 28 mL/sec | 1132 psi (80 kg/cm²)@28mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-A3 | Diagnostic Cardiology (MP) | 5F, STR PIG, PRC, JL 4.0, Performa® | Straight Pigtail | PRC | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-A3 | Diagnostic Cardiology (MP) | 5F, STR PIG, PRC, JL 4.0, Performa® | Straight Pigtail | PRC | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-G3 | Diagnostic Cardiology (MP) | 5F, STR PIG, JR 4.0, JL 4.0 NWB, Performa® | Straight Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7560-G3 | Diagnostic Cardiology (MP) | 5F, STR PIG, JR 4.0, JL 4.0 NWB, Performa® | Straight Pigtail | JR4.0 | 5F | (1.7 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 18 mL/sec | 1150 psi (81 kg/cm²)@18mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-13 | Diagnostic Cardiology (MP) | 6F, STR PIG, JR 4.0, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-13 | Diagnostic Cardiology (MP) | 6F, STR PIG, JR 4.0, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-20K | Diagnostic Cardiology (MP) | 6F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-20K | Diagnostic Cardiology (MP) | 6F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-23 | Diagnostic Cardiology (MP) | 6F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-23 | Diagnostic Cardiology (MP) | 6F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-33 | Diagnostic Cardiology (MP) | 6F, PIG 155, JR 4.0, JL 4.0, Performa® | 155° Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-33 | Diagnostic Cardiology (MP) | 6F, PIG 155, JR 4.0, JL 4.0, Performa® | 155° Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-43 | Diagnostic Cardiology (MP) | 6F, STR PIG, JR 4.0, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 37 mL/sec | 1193 psi (84 kg/cm²)@37mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-43 | Diagnostic Cardiology (MP) | 6F, STR PIG, JR 4.0, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 37 mL/sec | 1193 psi (84 kg/cm²)@37mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-53 | Diagnostic Cardiology (MP) | 6F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 37 mL/sec | 1193 psi (84 kg/cm²)@37mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-53 | Diagnostic Cardiology (MP) | 6F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 37 mL/sec | 1193 psi (84 kg/cm²)@37mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-63 | Diagnostic Cardiology (MP) | 6F, PIG 155, JR 4.0, JL 4.0, Performa® | 155° Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 37 mL/sec | 1193 psi (84 kg/cm²)@37mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-63 | Diagnostic Cardiology (MP) | 6F, PIG 155, JR 4.0, JL 4.0, Performa® | 155° Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 37 mL/sec | 1193 psi (84 kg/cm²)@37mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-A3 | Diagnostic Cardiology (MP) | 6F, STR PIG, PRC, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7660-A3 | Diagnostic Cardiology (MP) | 6F, STR PIG, PRC, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 6F | (2.0 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 30 mL/sec | 1120 psi (79 kg/cm²)@30mL/sec | Flow Rate Achieved @ 10.4 cp | ETO | Yes | 5 | ||
| 7751-10 | Diagnostic Cardiology (MP) | 4F, STR PIG, JR 4.0, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 4F | (1.3 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 15 mL/sec | 1163 psi (82 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | No Applicable Code | 5 |
| 7751-10 | Diagnostic Cardiology (MP) | 4F, STR PIG, JR 4.0, JL 4.0, Performa® | Straight Pigtail | JR4.0 | 4F | (1.3 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 15 mL/sec | 1163 psi (82 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | No Applicable Code | 5 |
| 7751-20 | Diagnostic Cardiology (MP) | 4F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 4F | (1.3 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 15 mL/sec | 1163 psi (82 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | No Applicable Code | 5 |
| 7751-20 | Diagnostic Cardiology (MP) | 4F, PIG 145, JR 4.0, JL 4.0, Performa® | 145° Pigtail | JR4.0 | 4F | (1.3 mm) | Pebax Nylon | 5 Side Ports | Multipack | 1200 psi (8274 kPa) | 15 mL/sec | 1163 psi (82 kg/cm²)@15mL/sec | Flow Rate Achieved @ 10.4 cp | Bumper Tip | ETO | Yes | No Applicable Code | 5 |
Related products
InQwire® Diagnostic Guide Wires
Merit Diagnostic Cardiology FEP Catheter
